BATHURSTBURBathurst BUR features a modern and stylish design that is sure to enhance commercial and urban spaces. Revive dreary building exteriors, brighten up walkways or entrance areas, or simply bring a touch of class to exterior boundaries - Bathurst's range of features has something to offer every lighting environment.
Features

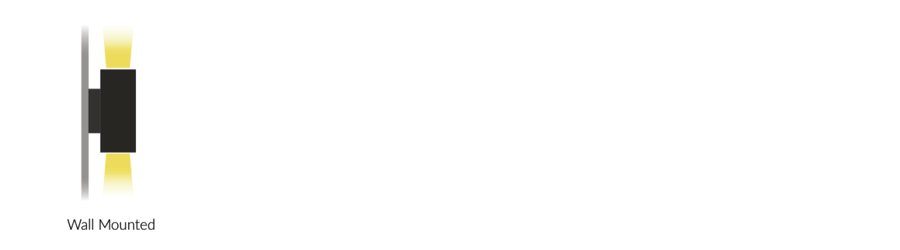

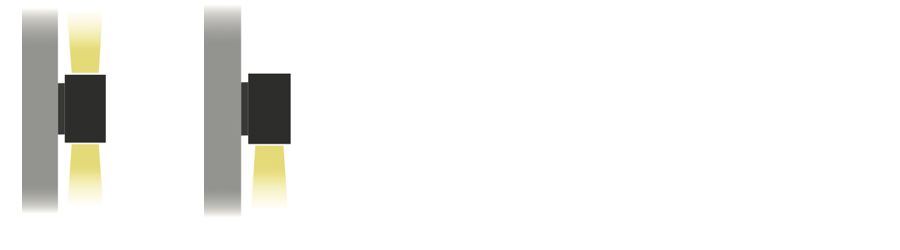

- Round up/down wall light
- Modern, stylish design
- Robust die-cast aluminum body
- UV / corrosion-resistant powder-coated finish
- Suitable for outdoor applications - IP65 and IK06 rating
Suitable Applications
Model | BURD10-xyz | BURD20-xyz | BURD30-xyz |
|---|---|---|---|
Nominal Power (W) | 10 | 20 | 27 |
Input Voltage (V) | 220-240 | ||
CRI (Ra) | > 80 | ||
CCT (K) | 3000/4000 | ||
Frequency (Hz) | 50/60 | ||
Luminaire Flux (lm) | 700-900 | 2000-2200 | 2835-3240 |
Luminaire Efficacy (lm/W) | 70-90 | 100-110 | 105-120 |
Luminaire Rated Life (hr) | >50,000 @ L70 | ||
Operating Temp. (°C) | -20 to +40 | ||

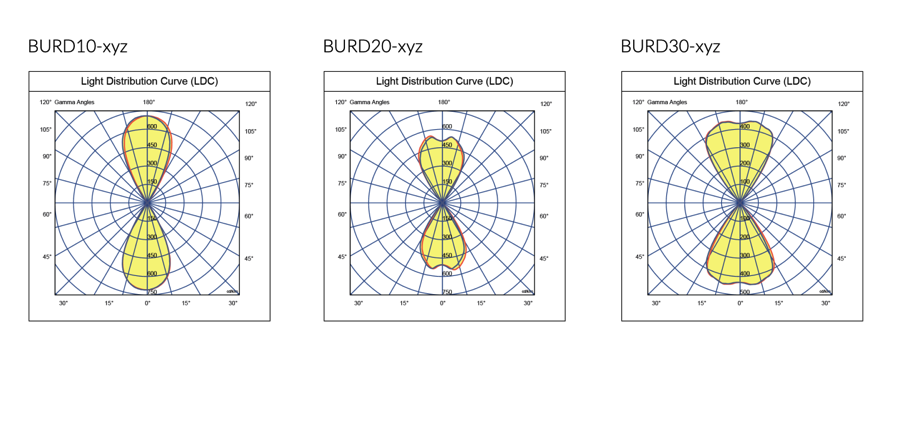

Beam Angle (°) | 15/24/60 | 15/24/36/60 | |
IP Rating | IP65 | ||
Power Factor | > 0.90 | ||
SDCM | < 6 | ||
Body Colour | White / Black | ||
Weight (kg) | 0.6 | 0.9 | 1.2 |
“x” denotes CRI & CCT, R83 = CRI>80, 3000K ; R84 = CRI>80, 4000K
“y” denotes Beam Angle, B15 = 15° ; B24 = 24° ; B36 = 36° ; B60 = 60°
“z” denotes Body Colour , C01 = White ; C03 = Black
*Specifications shown for 4000K
Product Datasheet

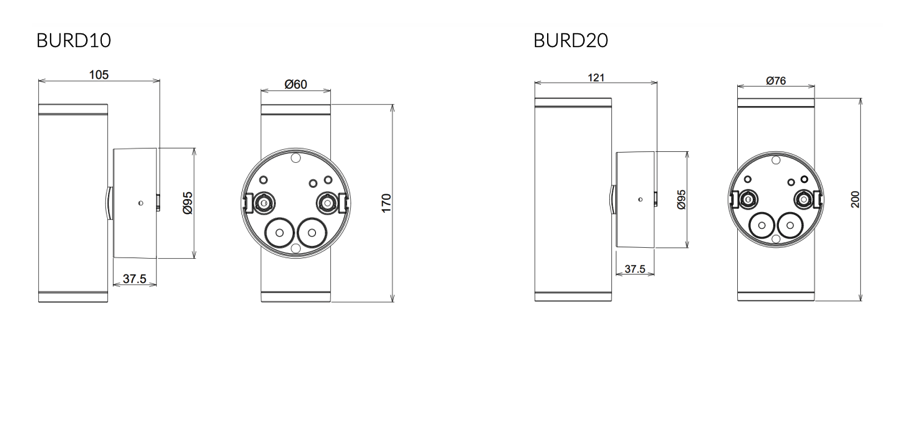

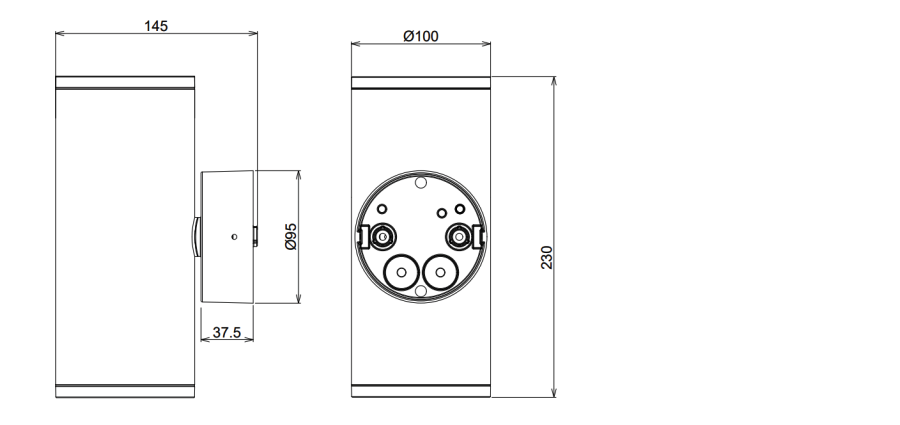

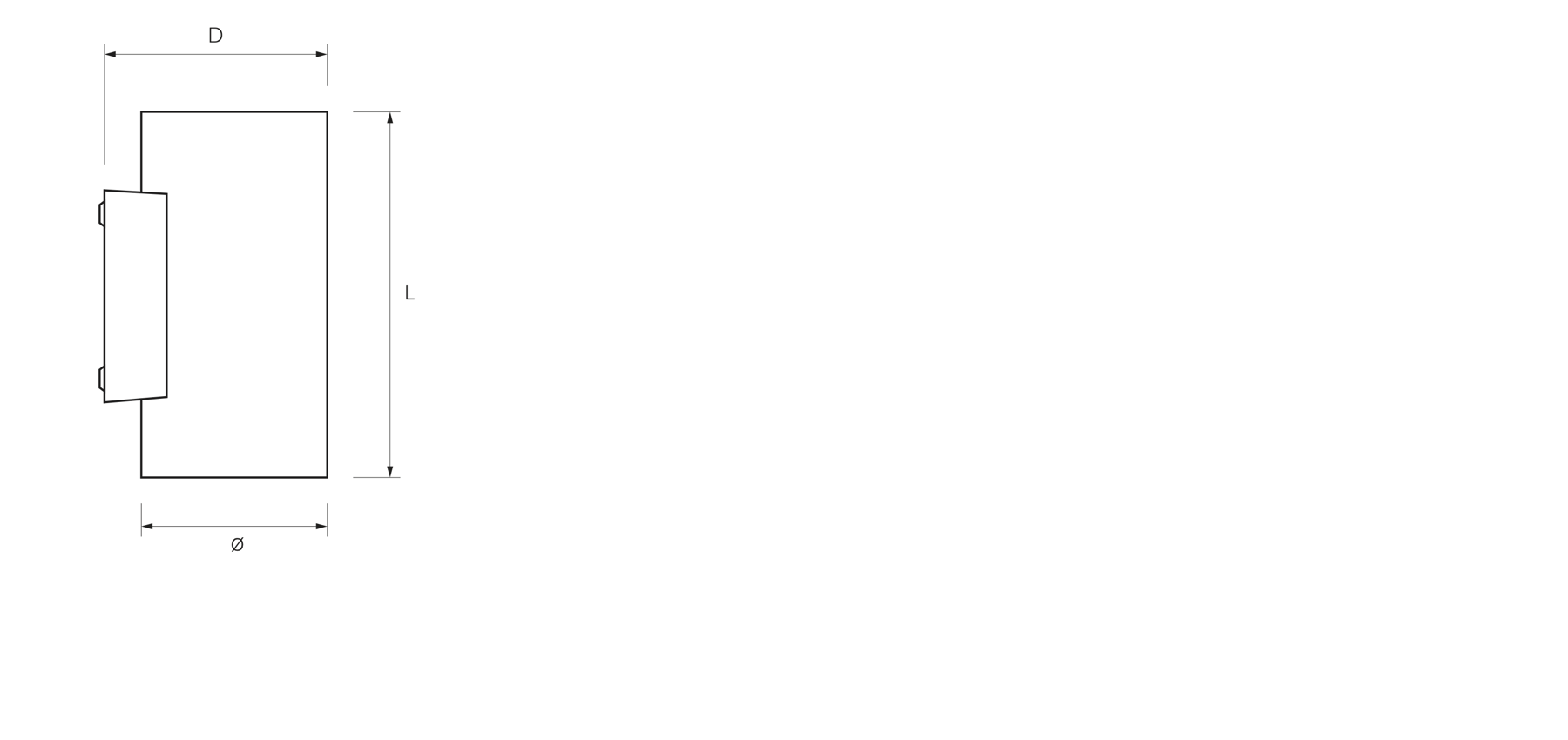

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| BURD10-R83B15C01 | 170 x 105 x 60 | 10 | 700 | 70 | 3000 | |
| BURD10-R84B15C01 | 170 x 105 x 60 | 10 | 700 | 70 | 4000 | |
| BURD10-R85B15C01 | 170 x 105 x 60 | 10 | 700 | 70 | 5000 | |
| BURD10-R83B24C01 | 170 x 105 x 60 | 10 | 700 | 70 | 3000 | |
| BURD10-R84B24C01 | 170 x 105 x 60 | 10 | 700 | 70 | 4000 | |
| BURD10-R85B24C01 | 170 x 105 x 60 | 10 | 700 | 70 | 5000 | |
| BURD10-R83B60C01 | 170 x 105 x 60 | 10 | 700 | 70 | 3000 | |
| BURD10-R84B60C01 | 170 x 105 x 60 | 10 | 700 | 70 | 4000 | |
| BURD10-R85B60C01 | 170 x 105 x 60 | 10 | 700 | 70 | 5000 | |
| BURD10-R83B15C03 | 170 x 105 x 60 | 10 | 700 | 70 | 3000 | |
| BURD10-R84B15C03 | 170 x 105 x 60 | 10 | 700 | 70 | 4000 | |
| BURD10-R85B15C03 | 170 x 105 x 60 | 10 | 700 | 70 | 5000 | |
| BURD10-R83B24C03 | 170 x 105 x 60 | 10 | 700 | 70 | 3000 | |
| BURD10-R84B24C03 | 170 x 105 x 60 | 10 | 700 | 70 | 4000 | |
| BURD10-R85B24C03 | 170 x 105 x 60 | 10 | 700 | 70 | 5000 | |
| BURD10-R83B60C03 | 170 x 105 x 60 | 10 | 700 | 70 | 3000 | |
| BURD10-R84B60C03 | 170 x 105 x 60 | 10 | 700 | 70 | 4000 | |
| BURD10-R85B60C03 | 170 x 105 x 60 | 10 | 700 | 70 | 5000 | |
| BURD20-R83B15C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B15C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B15C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B24C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 |  |
| BURD20-R84B24C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B24C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B36C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B36C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B36C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B60C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B60C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B60C01 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B15C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B15C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B15C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B24C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B24C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B24C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B36C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B36C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B36C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD20-R83B60C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 3000 | |
| BURD20-R84B60C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 4000 | |
| BURD20-R85B60C03 | 200 x 121 x 76 | 20 | 2000 | 100 | 5000 | |
| BURD30-R83B15C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B15C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B15C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B24C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B24C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B24C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B36C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B36C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B36C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B60C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B60C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B60C01 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B15C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B15C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B15C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B24C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B24C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B24C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B36C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B36C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B36C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 | |
| BURD30-R83B60C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 3000 | |
| BURD30-R84B60C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 4000 | |
| BURD30-R85B60C03 | 230 x 145 x 100 | 30 | 2800 | 100 | 5000 |
