BOLABASBola BAS square bollard offers a contemporary lighting solution, distinguishing itself from traditional round designs. It includes mounting kit including anchor bolts for stable installation. The option of two different heights provides flexibility for versatile design and lighting. What's more, its advanced dimming, compatible with 0-10V and DALI systems, offers precise brightness control
Item 1 of 1
Features
Rectangular bollard
Modern & contemporary design
Superior uniform illumination designed to enhance
Urban spaces with beautiful visual appearance
UV / corrosion-resistant power-coated finish
Suitable for outdoor application - IP65 & IK08 rating
Suitable Applications
Item 1 of 2
Specifications
| BAS | BAS232S800 | BAS242H800 | BAS242H1000 | BAS242D800 |
|---|---|---|---|---|
| Nominal Power (W) | 12 | 25 | ||
| Height (mm) | 800 | 1000 | 800 | |
| Luminous Flux (lm) | 1080 | 600 | 1200 | |
| CCT (K) | 3000/4000/5700 | |||
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| CRI | ≥80 | |||
| Power Factor | ≥0.9 | |||
| SDCM | ≤6 step MacAdam | |||
| Rated Life Span (hrs) | >50,000hrs @ ta25°c | |||
| Operating Temp. (°C) | -20 to +40 | |||
| Weight (kg) | 5 | 7.2 | 9.5 | |
| IP | 65 | |||
| IK | 08 | |||
| Colour | Black | |||
| THD (%) | ≤20 | |||
| Surge Protection | L-N:1KV, L/N-PE:2KV | |||
| Housing Material | Aluminium | |||
| Finishing | Outdoor grade powder-coated | |||
| Diffuser | Glass | |||
| Electrical Class | Class 1 | |||
| Qty/box | 1 | |||
| BAS | BAS242D1000 | BAS242L800 | BAS242L1000 |
|---|---|---|---|
| Nominal Power (W) | 25 | ||
| Height (mm) | 1000 | 800 | 1000 |
| Luminous Flux (lm) | 1200 | 3000 | |
| CCT (K) | 3000/4000/5700 | ||
| Input Voltage (Vac) | 220-240 | ||
| Frequency (Hz) | 50/60 | ||
| CRI | ≥80 | ||
| Power Factor | ≥0.9 | ||
| SDCM | ≤6 step MacAdam | ||
| Rated Life Span (hrs) | >50,000hrs @ ta25°c | ||
| Operating Temp. (°C) | -20 to +40 | ||
| Weight (kg) | 9.5 | 9 | |
| IP | 65 | ||
| IK | 08 | ||
| Colour | Black | ||
| THD (%) | ≤20 | ||
| Surge Protection | L-N:1KV, L/N-PE:2KV | ||
| Housing Material | Aluminium | ||
| Finishing | Outdoor grade powder-coated | ||
| Diffuser | Glass | ||
| Electrical Class | Class 1 | ||
| Qty/box | 1 | ||

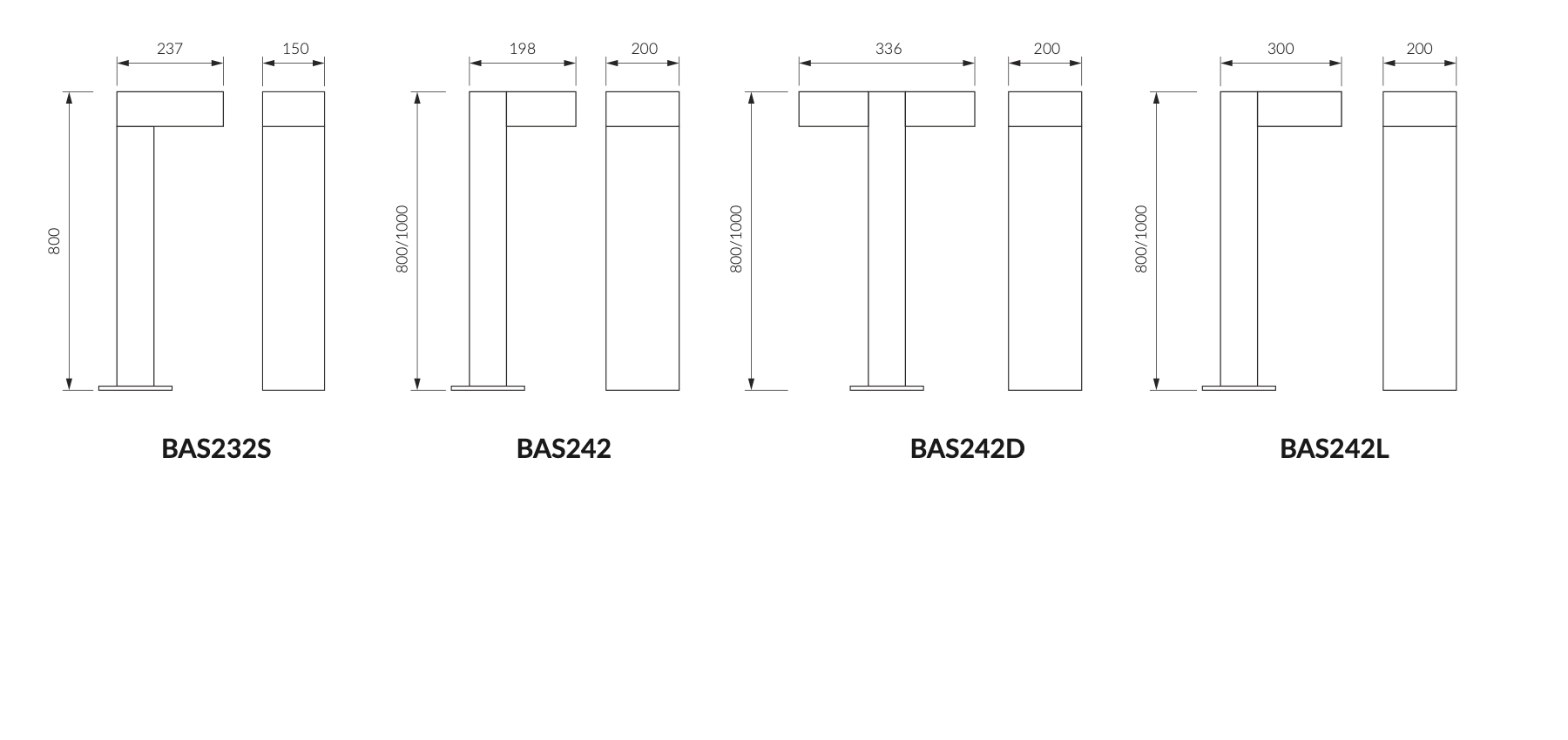

Dimensions
Mounting Methods
Product Datasheet
BOLA BAS
(showing 7 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | CCT | IES |
|---|---|---|---|---|---|
| BAS232S800 | 800 | 12 | 1080 | 3000/4000/5700 | |
| BAS242H800 | 800 | 12 | 600 | 3000/4000/5700 | |
| BAS242H1000 | 1000 | 12 | 600 | 3000/4000/5700 | |
| BAS242D800 | 800 | 25 | 1200 | 3000/4000/5700 | |
| BAS242D1000 | 1000 | 25 | 1200 | 3000/4000/5700 | |
| BAS242L800 | 800 | 25 | 3000 | 3000/4000/5700 | |
| BAS242L1000 | 1000 | 25 | 3000 | 3000/4000/5700 |
