BWS

Features

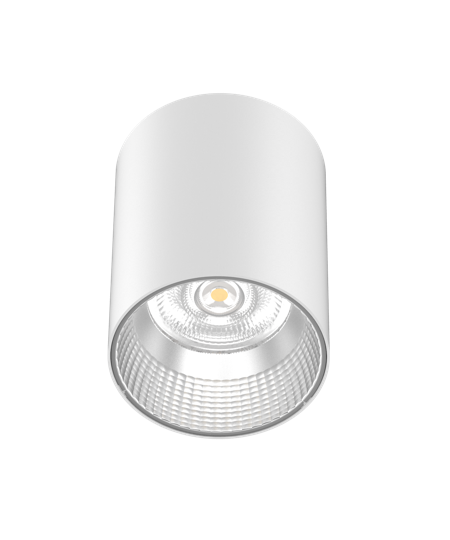

  • Circular profile surface mount downlight
  • High performance LED system for maximum energy saving
  • Faceted reflector design to deliver low glare
  • CRI ≥ 80 and good stability over lifetime
  • IP54 rated
  • Available in a range of wattages, colour temperatures and sizes
  • Quick and easy installation
Dim 5-100
IK03
Indoor
IP54
Outdoor
RCM

Suitable Applications

Specifications
Expand

Model

BWS415-xy

BWS525-xy

BWS735-xy

Nominal Power (W)

15

25

35

Input Voltage (V)

220-240

CRI (Ra)

>80

CCT (K)

3000/4000/5000

Frequency (Hz)

50/60

Luminaire Flux (lm)

1500

2500

3500

Luminaire Efficacy (lm/W)

100

Luminaire Rated Life (hr)

50,000

Beam Angle (°)

24/36/60

Operating Temp. (°C)

-20 to 40

IP Rating

IP54

IK Rating

IK03

Power Factor

>0.90

SDCM

<6

Weight (kg)

0.65

0.84

1.45



“x” denotes CRI & CCT, R83 = CRI>80, 3000K ; R84 = CRI>80, 4000K ; R85 = CRI>80, 5000K
“y” denotes Beam Angle, B24 = 24° ; B36 = 36° ; B60 = 60°
*Specifications shown for 4000K

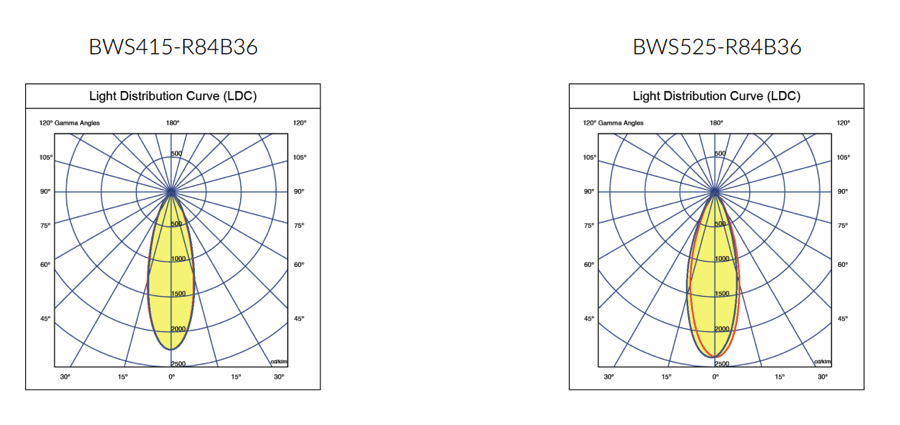

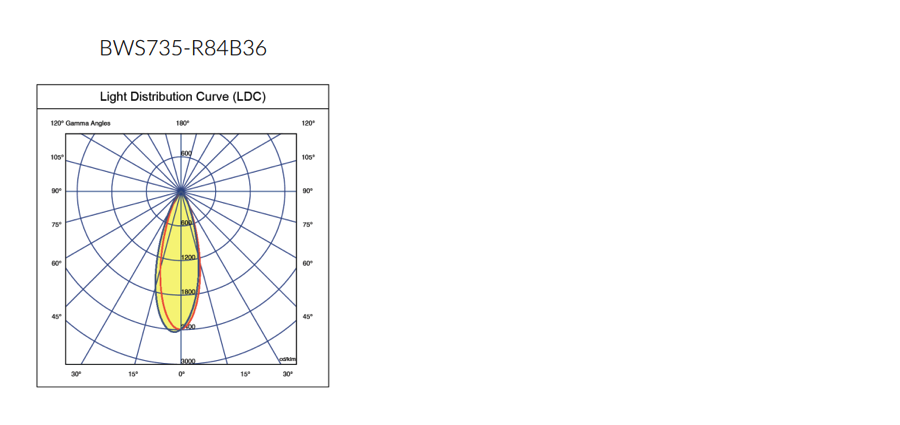

Lighting Distribution
Expand

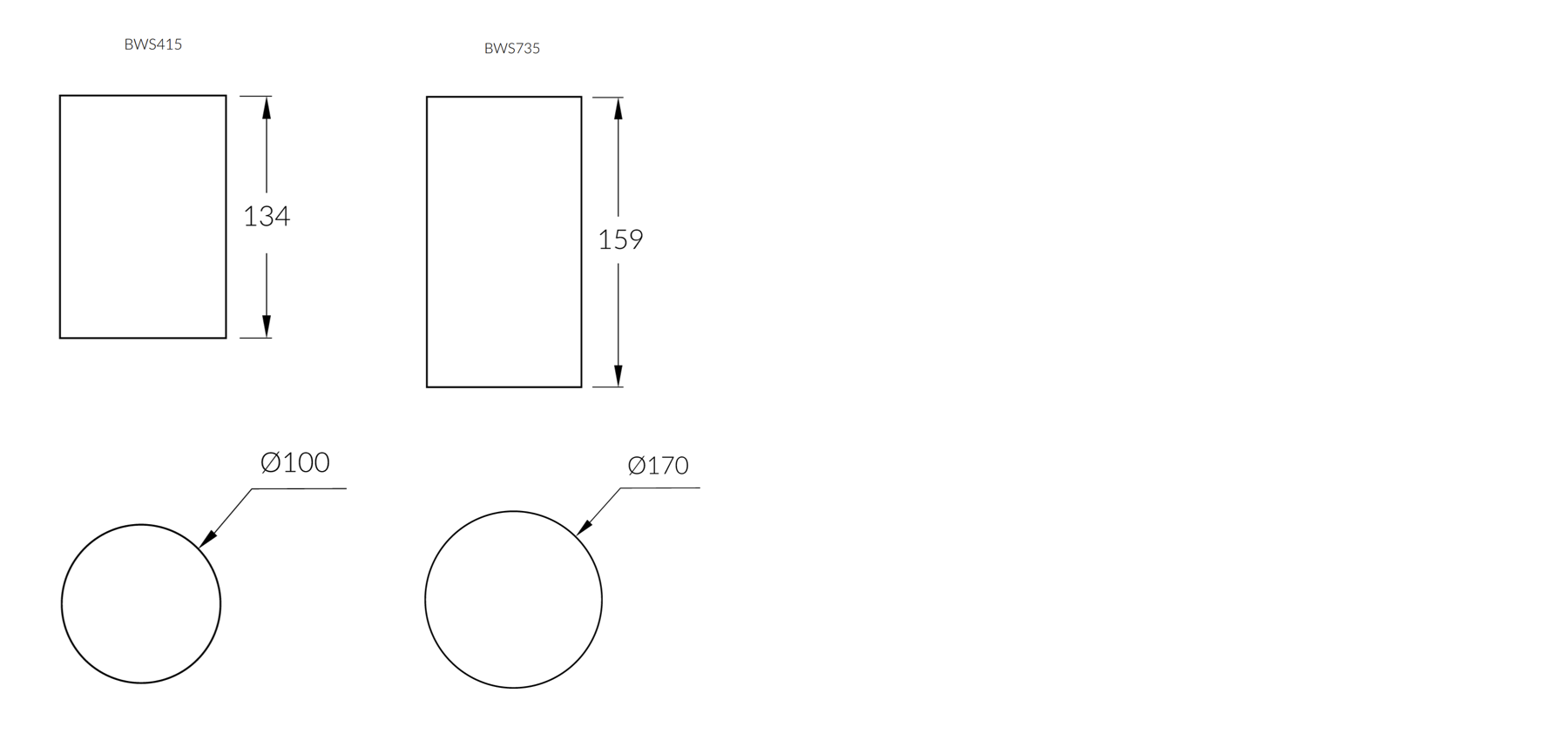

Dimensions
Expand

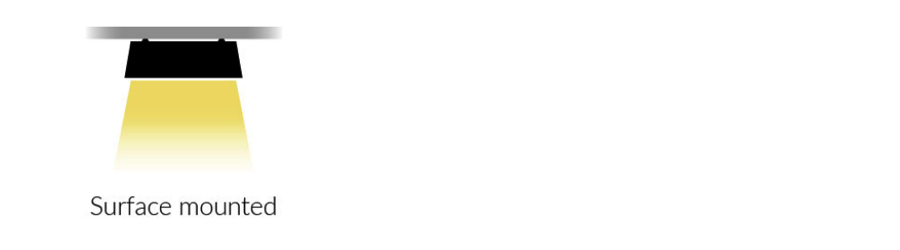

Mounting Methods
Expand

Product Datasheet

BOWEN BWS
(showing 27 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
BWS415-R83B24Ø100 x 1341515001003000Download
BWS415-R83B36Ø100 x 1341515001003000Download
BWS415-R83B60Ø100 x 1341515001003000Download
BWS415-R84B24Ø100 x 1341515001004000Download
BWS415-R84B36Ø100 x 1341515001004000Download
BWS415-R84B60Ø100 x 1341515001004000Download
BWS415-R85B24Ø100 x 1341515001005000Download
BWS415-R85B36Ø100 x 1341515001005000Download
BWS415-R85B60Ø100 x 1341515001005000Download
BWS525-R83B24Ø120 x 1442525001003000Download
BWS525-R83B36Ø120 x 1442525001003000Download
BWS525-R83B60Ø120 x 1442525001003000Download
BWS525-R84B24Ø120 x 1442525001004000Download
BWS525-R84B36Ø120 x 1442525001004000Download
BWS525-R84B60Ø120 x 1442525001004000Download
BWS525-R85B24Ø120 x 1442525001005000Download
BWS525-R85B36Ø120 x 1442525001005000Download
BWS525-R85B60Ø120 x 1442525001005000Download
BWS735-R83B24Ø170 x 1593535001003000Download
BWS735-R83B36Ø170 x 1593535001003000Download
BWS735-R83B60Ø170 x 1593535001003000Download
BWS735-R84B24Ø170 x 1593535001004000Download
BWS735-R84B36Ø170 x 1593535001004000Download
BWS735-R84B60Ø170 x 1593535001004000Download
BWS735-R85B24Ø170 x 1593535001005000Download
BWS735-R85B36Ø170 x 1593535001005000Download
BWS735-R85B60Ø170 x 1593535001005000Download
