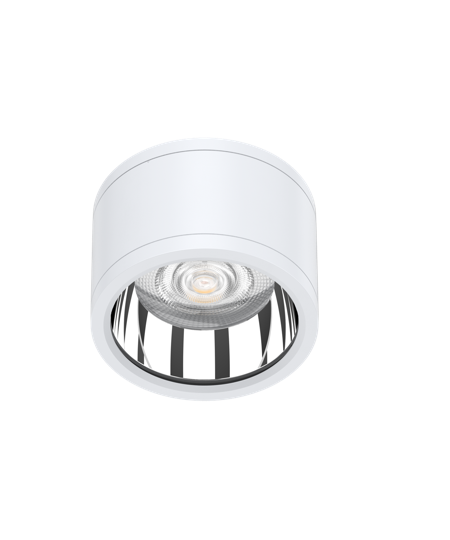

BOWENBWUAdvanced optics allow Bowen BWU to produce a comfortable, low-glare output suitable for many residential and hospitality-based locations. With power outputs ranging from 10W - 40W and beam angles covering 24°, 36° and 60°, Bowen allows for applications ranging from small and intimate to far more expansive areas.
Item 1 of 1
Features
- Surface mount downlight
- Circular profile
- High performance LED system
- Low glare output
- Available in a range of wattages, colour temperatures and sizes
- CRI ≥ 80
- Quick and easy installation
- IP65 and IK06 rating
Suitable Applications
Item 1 of 4
Specifications
| Model | BWU310-xyz | BWU520-xyz | BWU625-xyz | BWU630-xyz | BWU835-xyz | BWU1040-xyz |
| Nominal Power (W) | 10 | 18 | 25 | 30 | 35 | 40 |
| Input Voltage (V) | 220-240 | |||||
| CRI (Ra) | >80 | |||||
| CCT (K) | 3000/4000/5000 | |||||
| Frequency (Hz) | 50/60 | |||||
| Luminaire Flux (lm) | 1000 | 1800 | 2500 | 3000 | 3500 | 4000 |
| Luminaire Efficacy (lm/W) | 100 | |||||
| Luminaire Rated Life (hr) | 50,000 | |||||
| Operating Temp. (°C) | -20 to 40 | |||||
| IP Rating | IP65 | |||||
| IK Rating | IK06 | |||||
| Power Factor | >0.90 | |||||
| SDCM | <6 | |||||
| Beam Angle (°) | 36/60 | 24/36/60 | ||||
| Weight (kg) | 0.6 | 0.90 | 1.2 | 1.2 | 2.2 | 2.8 |
“x” denotes CRI & CCT, R83 = CRI>80, 3000K ; R84 = CRI>80, 4000K ; R85 = CRI>80, 5000K
“y” denotes Beam Angle, B24 = 24° ; B36 = 36° ; B60 = 60°
“z” denotes Dimming, D10 = DALI; D03 = Triac
*Specifications shown for 4000K

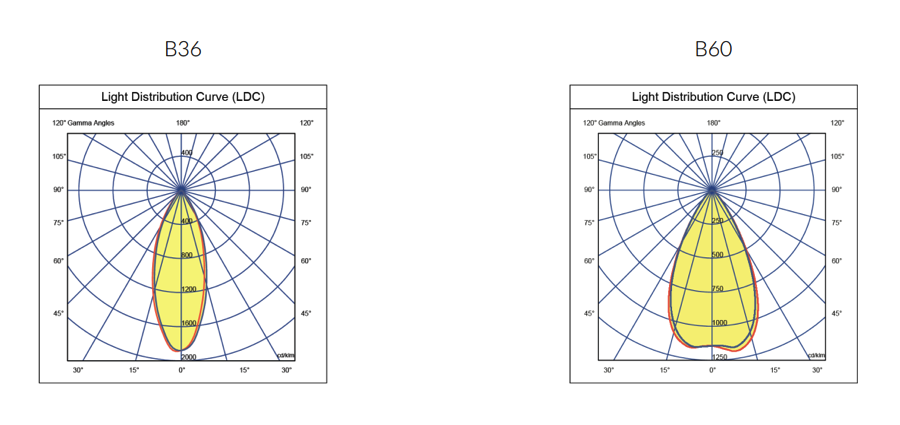

Lighting Distribution

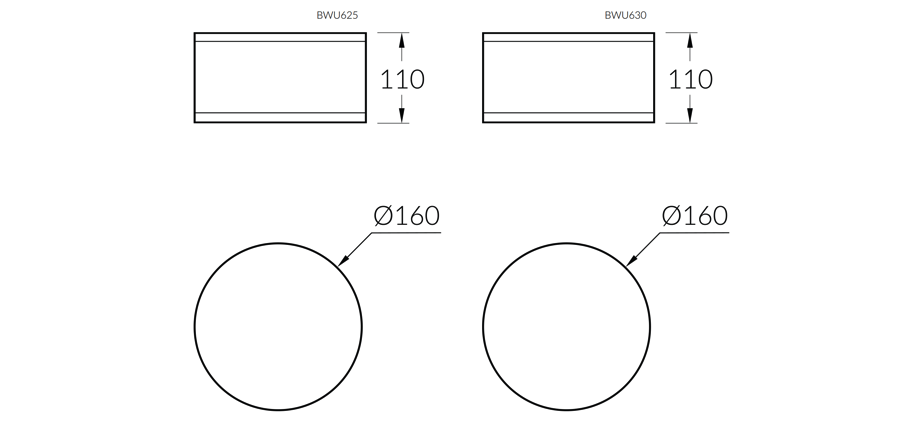

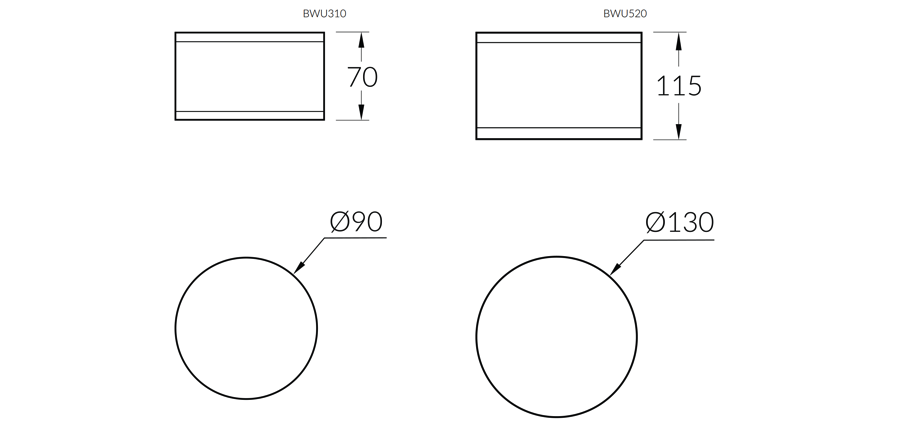

Dimensions

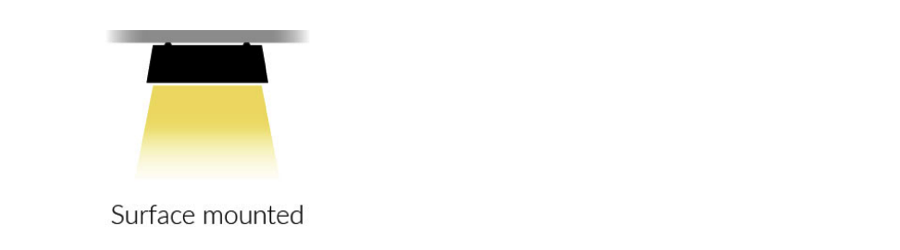

Mounting Methods
Product Datasheet
BOWEN BWU
(showing 36 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| BWU310-R83B36 | Ø90 x 70 | 10 | 1000 | 100 | 3000 |  |
| BWU310-R84B36 | Ø90 x 70 | 10 | 1000 | 100 | 4000 | |
| BWU310-R85B36 | Ø90 x 70 | 10 | 1000 | 100 | 5000 | |
| BWU310-R83B60 | Ø90 x 70 | 10 | 1000 | 100 | 3000 | |
| BWU310-R84B60 | Ø90 x 70 | 10 | 1000 | 100 | 4000 | |
| BWU310-R85B60 | Ø90 x 70 | 10 | 1000 | 100 | 5000 | |
| BWU520-R83B36 | Ø130 x 115 | 18 | 1800 | 100 | 3000 | |
| BWU520-R84B36 | Ø130 x 115 | 18 | 1800 | 100 | 4000 | |
| BWU520-R85B36 | Ø130 x 115 | 18 | 1800 | 100 | 5000 | |
| BWU520-R83B60 | Ø130 x 115 | 18 | 1800 | 100 | 3000 | |
| BWU520-R84B60 | Ø130 x 115 | 18 | 1800 | 100 | 4000 | |
| BWU520-R85B60 | Ø130 x 115 | 18 | 1800 | 100 | 5000 | |
| BWU625-R83B36 | Ø160 x 110 | 25 | 2500 | 100 | 3000 | |
| BWU625-R84B36 | Ø160 x 110 | 25 | 2500 | 100 | 4000 | |
| BWU625-R85B36 | Ø160 x 110 | 25 | 2500 | 100 | 5000 | |
| BWU625-R83B60 | Ø160 x 110 | 25 | 2500 | 100 | 3000 | |
| BWU625-R84B60 | Ø160 x 110 | 25 | 2500 | 100 | 4000 | |
| BWU625-R85B60 | Ø160 x 110 | 25 | 2500 | 100 | 5000 | |
| BWU630-R83B36 | Ø160 x 110 | 30 | 3000 | 100 | 3000 | |
| BWU630-R84B36 | Ø160 x 110 | 30 | 3000 | 100 | 4000 | |
| BWU630-R85B36 | Ø160 x 110 | 30 | 3000 | 100 | 5000 | |
| BWU630-R83B60 | Ø160 x 110 | 30 | 3000 | 100 | 3000 | |
| BWU630-R84B60 | Ø160 x 110 | 30 | 3000 | 100 | 4000 | |
| BWU630-R85B60 | Ø160 x 110 | 30 | 3000 | 100 | 5000 | |
| BWU835-R83B36 | Ø214 x 119 | 35 | 3500 | 100 | 3000 | |
| BWU835-R84B36 | Ø214 x 119 | 35 | 3500 | 100 | 4000 | |
| BWU835-R85B36 | Ø214 x 119 | 35 | 3500 | 100 | 5000 | |
| BWU835-R83B60 | Ø214 x 119 | 35 | 3500 | 100 | 3000 | |
| BWU835-R84B60 | Ø214 x 119 | 35 | 3500 | 100 | 4000 | |
| BWU835-R85B60 | Ø214 x 119 | 35 | 3500 | 100 | 5000 | |
| BWU1040-R83B36 | Ø250 x 125 | 40 | 4000 | 100 | 3000 | |
| BWU1040-R84B36 | Ø250 x 125 | 40 | 4000 | 100 | 4000 | |
| BWU1040-R85B36 | Ø250 x 125 | 40 | 4000 | 100 | 5000 | |
| BWU1040-R83B60 | Ø250 x 125 | 40 | 4000 | 100 | 3000 | |
| BWU1040-R84B60 | Ø250 x 125 | 40 | 4000 | 100 | 4000 | |
| BWU1040-R85B60 | Ø250 x 125 | 40 | 4000 | 100 | 5000 | |
