Item 1 of 1
CYR

Features

  • Round shape design with various trim choices
  • Vandal resistant suitable for outdoor use
  • Reliable thermal management for long life and lumen maintenance.
  • Robust die-casted aluminium body with PC diffser
  • Corrosion resistant
Outdoor
IP65

Suitable Applications

Specifications
Expand
Calypso CYRCYR05CYR05HCYR05WCYR20CYR20H
Nominal Power (W)520
Dimension (D x H)145 x 85220 x 70
Input Voltage (Vac)220-240
Frequency (Hz)50/60
LED Lumen (lm)5001800
Efficacy (lm/W)10090
Type. CRI (Ra)>80
SDCM≤6 step MacAdam
Colour Temp. (K)3000 / 4000 / 6000
Beam Angle (°)120
Power Factor>0.9
Rated Life Span>50,000hrs
IP RatingIP65
HousingDie-cast aluminium casing
FinishingEpoxy powder coating
OpticsPC diffuser
Casing ColourBlack / Grey / White
Calypso CYRCYR20WCYR20LCYR20LHCYR20LW
Nominal Power (W)20
Dimension (D x H)220 x 70275 x 85
Input Voltage (Vac)220-240
Frequency (Hz)50/60
LED Lumen (lm)1800
Efficacy (lm/W)90
Type. CRI (Ra)>80
SDCM≤6 step MacAdam
Colour Temp. (K)3000 / 4000 / 6000
Beam Angle (°)120
Power Factor>0.9
Rated Life Span>50,000hrs
IP RatingIP65
HousingDie-cast aluminium casing
FinishingEpoxy powder coating
OpticsPC diffuser
Casing ColourBlack / Grey / White

Note: The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or similar qualified person.

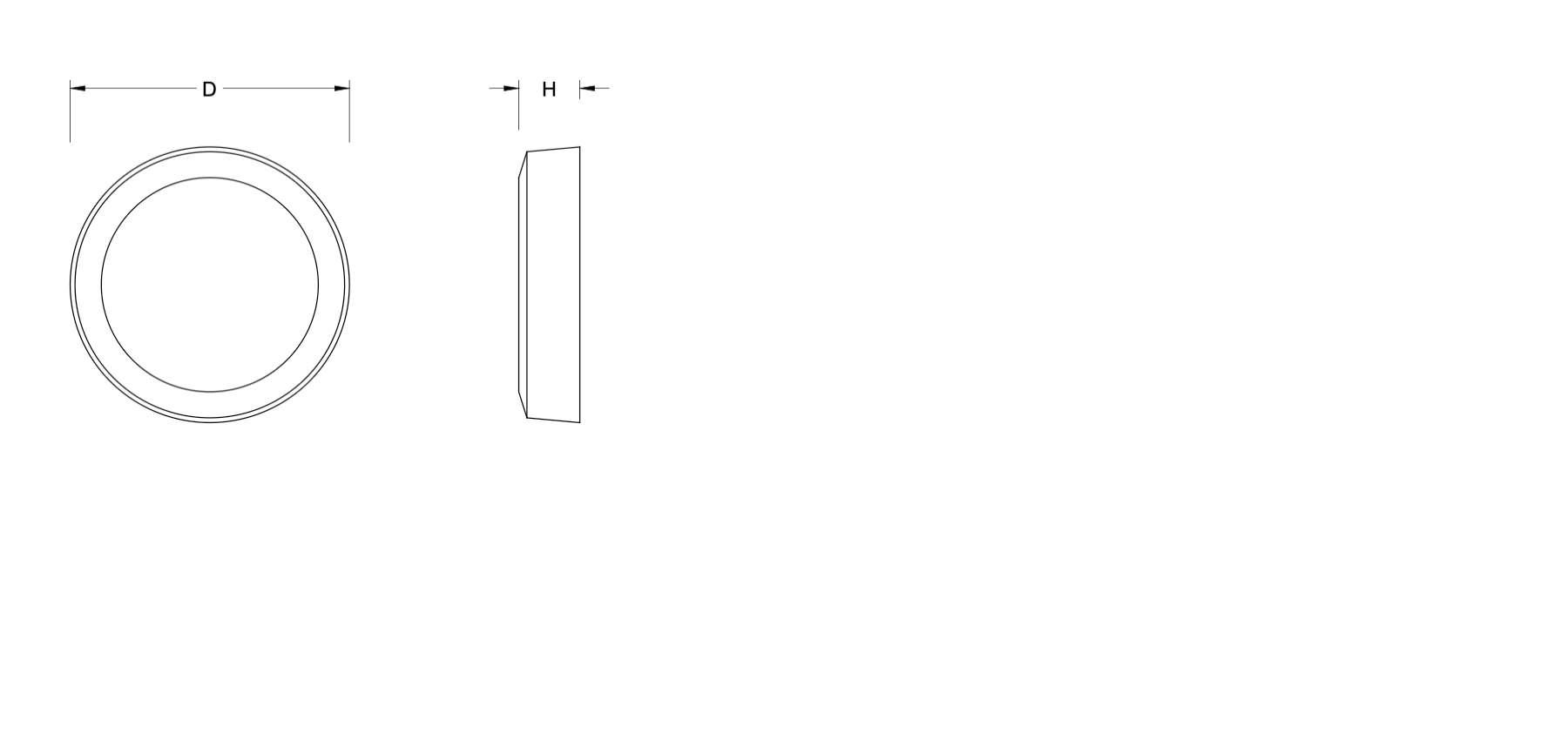

Dimensions
Expand
CYR

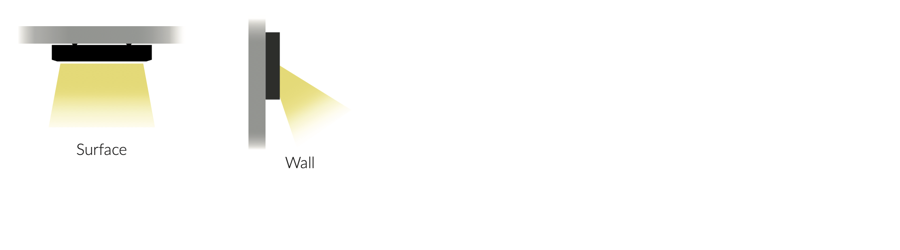

Mounting Methods
Expand
CYR

Product Datasheet

CALYPSO CYR
(showing 9 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
CYR05145 x 8555001003000 / 4000 / 6000
CYR05H145 x 8555001003000 / 4000 / 6000
CYR05W145 x 8555001003000 / 4000 / 6000
CYR20220 x 70201800903000 / 4000 / 6000
CYR20H220 x 70201800903000 / 4000 / 6000
CYR20W220 x 70201800903000 / 4000 / 6000
CYR20L275 x 85201800903000 / 4000 / 6000
CYR20LH275 x 85201800903000 / 4000 / 6000
CYR20LW275 x 85201800903000 / 4000 / 6000
