DALTONDLPBoasting a CRI of over 80, DALTON takes center stage in ensuring that your space is illuminated with true-to-life colors. Efficient and brilliant, the LED light sources contribute to sustainability with superior illumination quality. The elegant matte powder-coated white finish adds a touch of sophistication to the environment.
Features
- Energy saving & high-performance
- LED light source

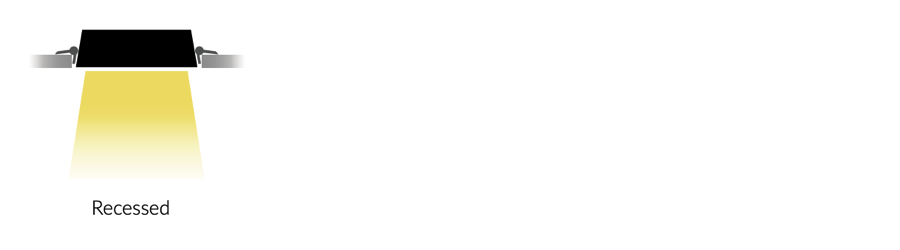

- Recessed mounted
- CRI >80 and good stability lifetime
- SELV compliant
- EMC compliant to 300Mhz
- Beam angle 110°
- Matt powder-coated white finishing
Suitable Applications
Model | DLP410WxK | DLP412WxK | DLP612WxK | DLP615WxK | DLP620WxK | DLP820WxK | DLP825WxK |
|---|---|---|---|---|---|---|---|
Nominal Power (W) | 10 | 12 | 12 | 15 | 20 | 20 | 25 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||||||
Luminous Flux (lm) | 992 | 1106 | 1225 | 1440 | 1997 | 2187 | 2440 |
Efficacy (lm/W) | 99 | 92 | 102 | 96 | 100 | 109 | 98 |
CRI | > 80 | ||||||
Power Factor | 0.90 | ||||||
SDCM | 6 | ||||||
Colour Temp. (K) | 3000 / 4000 / 6500 | ||||||
Beam Angle (º) | 110 | ||||||
LED Life L70B50 (hr) | 25,000 | ||||||
Ambient Temp. ta (°C) | 35 | ||||||
Weight (kg) | 0.15 | 0.15 | 0.20 | 0.25 | 0.30 | 0.35 | 0.40 |
“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 6 = 6500K
Product Datasheet

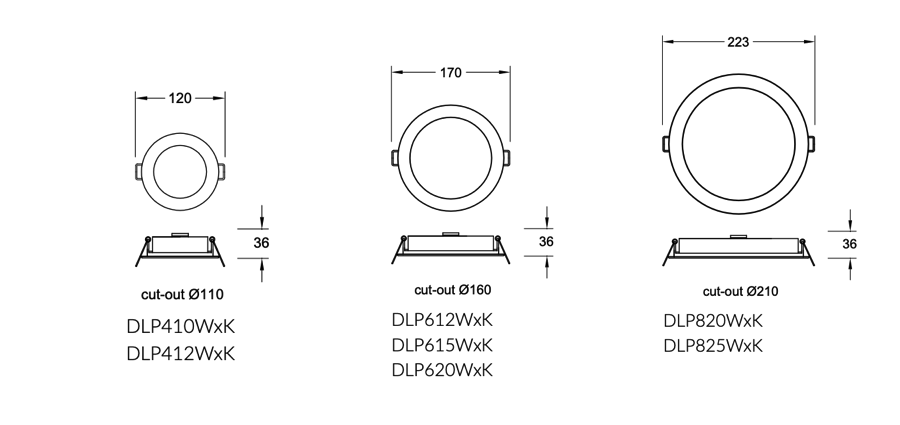

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| DLP410W3K | Ø120 x 36 | 10 | 992 | 99 | 3000 | |
| DLP410W4K | Ø120 x 36 | 10 | 992 | 99 | 4000 | |
| DLP410W6K | Ø120 x 36 | 10 | 992 | 99 | 6500 | |
| DLP412W3K | Ø120 x 36 | 12 | 1106 | 92 | 3000 | |
| DLP412W4K | Ø120 x 36 | 12 | 1106 | 92 | 4000 | |
| DLP412W6K | Ø120 x 36 | 12 | 1106 | 92 | 6500 | |
| DLP612W3K | Ø170 x 36 | 12 | 1225 | 102 | 3000 | |
| DLP612W4K | Ø170 x 36 | 12 | 1225 | 102 | 4000 | |
| DLP612W6K | Ø170 x 36 | 12 | 1225 | 102 | 6500 | |
| DLP615W3K | Ø170 x 36 | 15 | 1440 | 96 | 3000 | |
| DLP615W4K | Ø170 x 36 | 15 | 1440 | 96 | 4000 | |
| DLP615W6K | Ø170 x 36 | 15 | 1440 | 96 | 6500 | |
| DLP620W3K | Ø170 x 36 | 20 | 1997 | 100 | 3000 | |
| DLP620W4K | Ø170 x 36 | 20 | 1997 | 100 | 4000 | |
| DLP620W6K | Ø170 x 36 | 20 | 1997 | 100 | 6500 | |
| DLP820W3K | Ø223 x 36 | 20 | 2187 | 109 | 3000 | |
| DLP820W4K | Ø223 x 36 | 20 | 2187 | 109 | 4000 | |
| DLP820W6K | Ø223 x 36 | 20 | 2187 | 109 | 6500 | |
| DLP825W3K | Ø223 x 36 | 25 | 2440 | 98 | 3000 | |
| DLP825W4K | Ø223 x 36 | 25 | 2440 | 98 | 4000 | |
| DLP825W6K | Ø223 x 36 | 25 | 2440 | 98 | 6500 |
