DALTONDLVIn compliance with IC-4 regulations for installation safety and versatility. Its high-performance 50,000-hour system guarantees long-lasting illumination, reducing maintenance hassles. The inclusion of a remote LED driver facilitates flexible installation and maintenance without ceiling disruptions.
Features

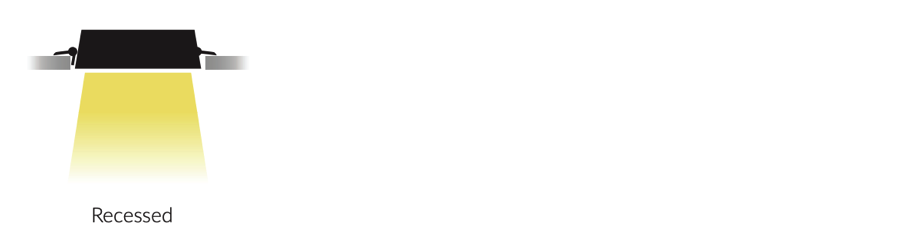

- Low profile recessed down light
- Wide range of sizes and powers
- High performance 50,000 hr system
- Remote LED driver
- CRI ≥80
- Die-cast aluminium housing
- Quick and easy installation
- IC-4 compliant (7W and 10W models only)
- IP44 below ceiling, IP20 above
.png)
Suitable Applications
Model | DLV307-Rx | DLV310-Rx | DLV415-Rx | DLV520-Rx | DLV625-Rx | DLV830-Rx | DLV835-Rx | DLV840-Rx |
|---|---|---|---|---|---|---|---|---|
Input Voltage (V) | 220-240 | |||||||
Nominal Power (W) | 7 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
Power Factor | >0.9 | |||||||
Luminaire Flux (lm) | 700 | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 |
Luminaire Efficacy (lm/W) | 100 | |||||||
Selectable CCT (K) | 3000/4000/5700 | |||||||
SDCM | <5 | |||||||
Luminaire Rated Life (hr) | >50000 | |||||||
Operating Temp. (°C) | -20 to 40 | |||||||
IP Rating | IP20 (IP44 below ceiling) | |||||||
Trim Colour | White | |||||||

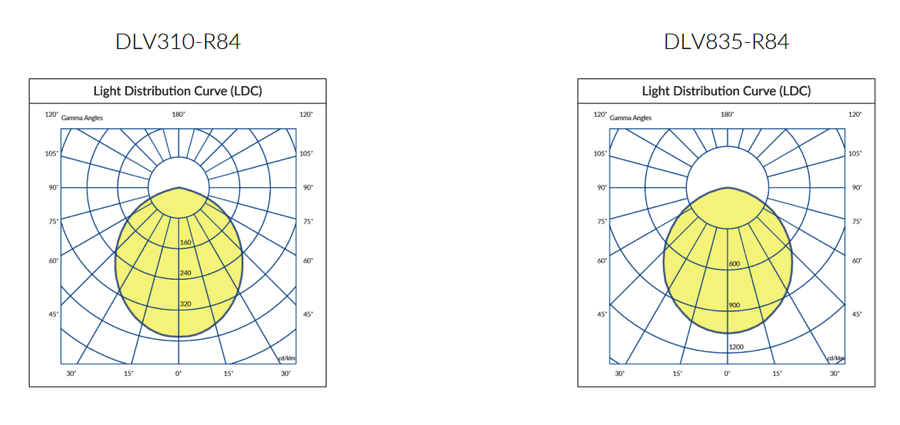

Beam Angle (°) | 100° (90° only applicable for 7&10W) | |||||||
Weight (kg) | 0.345 | 0.42 | 0.525 | 0.6 | 0.765 | |||
“x” denotes CRI & CCT, R83 = CRI≥80, 3000K ; R84 = CRI≥80, 4000K ; R86 = CRI≥80, 5700K
Product Datasheet

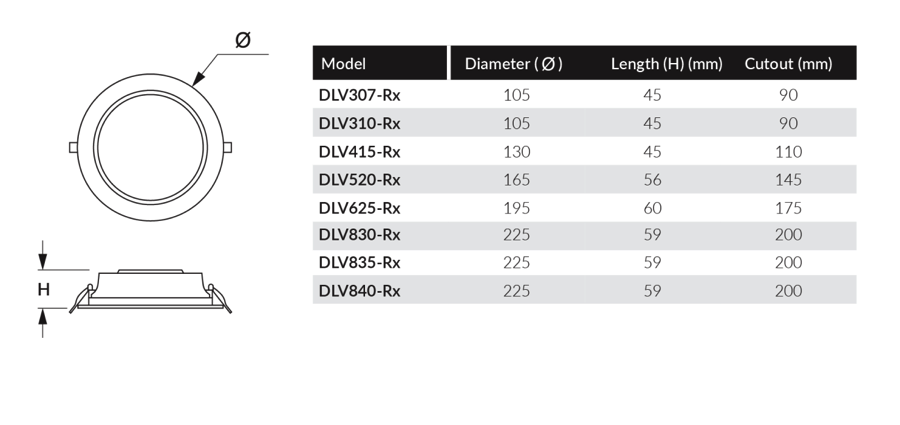

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| DLV307-R83 | Ø105 x 45 | 7 | 700 | 100 | 3000 |  |
| DLV307-R84 | Ø105 x 45 | 7 | 700 | 100 | 4000 | |
| DLV307-R86 | Ø105 x 45 | 7 | 700 | 100 | 5700 | |
| DLV310-R83 | Ø105 x 45 | 10 | 1000 | 100 | 3000 | |
| DLV310-R84 | Ø105 x 45 | 10 | 1000 | 100 | 4000 | |
| DLV310-R86 | Ø105 x 45 | 10 | 1000 | 100 | 5700 | |
| DLV415-R83 | Ø130 x 45 | 15 | 1500 | 100 | 3000 | |
| DLV415-R84 | Ø130 x 45 | 15 | 1500 | 100 | 4000 | |
| DLV415-R86 | Ø130 x 45 | 15 | 1500 | 100 | 5700 | |
| DLV520-R83 | Ø165 x 56 | 20 | 2000 | 100 | 3000 | |
| DLV520-R84 | Ø165 x 56 | 20 | 2000 | 100 | 4000 | |
| DLV520-R86 | Ø165 x 56 | 20 | 2000 | 100 | 5700 | |
| DLV625-R83 | Ø195 x 60 | 25 | 2500 | 100 | 3000 | |
| DLV625-R84 | Ø195 x 60 | 25 | 2500 | 100 | 4000 | |
| DLV625-R86 | Ø195 x 60 | 25 | 2500 | 100 | 5700 | |
| DLV830-R83 | Ø225 x 59 | 30 | 3000 | 100 | 3000 | |
| DLV830-R84 | Ø225 x 59 | 30 | 3000 | 100 | 4000 | |
| DLV830-R86 | Ø225 x 59 | 30 | 3000 | 100 | 5700 | |
| DLV835-R83 | Ø225 x 59 | 35 | 3500 | 100 | 3000 | |
| DLV835-R84 | Ø225 x 59 | 35 | 3500 | 100 | 4000 | |
| DLV835-R86 | Ø225 x 59 | 35 | 3500 | 100 | 5700 | |
| DLV840-R83 | Ø225 x 59 | 40 | 4000 | 100 | 3000 | |
| DLV840-R84 | Ø225 x 59 | 40 | 4000 | 100 | 4000 | |
| DLV840-R86 | Ø225 x 59 | 40 | 4000 | 100 | 5700 | |
