ERISERInstallation is a breeze with the spring clip, ensuring a secure and hassle-free attachment of the downlight. In the realm of lighting, Eris leverages an LED light source to deliver outstanding brightness and energy efficiency. "Triac Dimming" provides precise brightness control to set the desired ambiance.
Item 1 of 1
Features
- Ultra-thin LED recessed down light
- Wide range of sizes available
- High performance LED light source
- Eco-friendly LED product for energy saving
- CRI ≥80 and good stability over lifetime
- Quick and simple installation, use spring clip to fix on ceiling
- Colour: White
Suitable Applications
Item 1 of 3
Specifications
Model | ER408WxK | ER410WxK | ER412WxK | ER510WxK | ER612WxK | ER615WxK | ER820WxK | ER825WxK |
|---|---|---|---|---|---|---|---|---|
Nominal Power (W) | 8 | 10 | 12 | 10 | 12 | 16 | 20 | 24 |
Input Voltage | 100 -240 VAC 50 /60 Hz | |||||||
Luminous Flux (lm) | 800 | 1000 | 1200 | 1000 | 1200 | 1600 | 2000 | 2400 |
Efficacy (lm/W) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
CRI | ≥ 80 | |||||||
Power Factor | > 0.90 | |||||||
| Colour Temp. (K) | 3000 / 4000 | |||||||
| Beam Angle (°) | 100 | |||||||
| LED Life L70B50 (hr) | > 50000 | |||||||
Ambient Temp. ta (°C) | 40 | |||||||
Weight (kg) | 0.14 | 0.14 | 0.14 | 0.18 | 0.24 | 0.24 | 0.34 | 0.34 |
“x” denotes CCT, 3 = 3000K ; 4 = 4000K

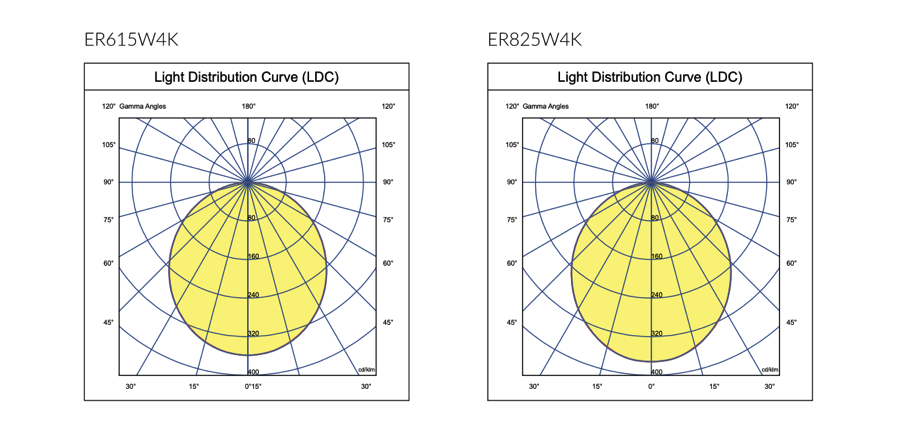

Lighting Distribution

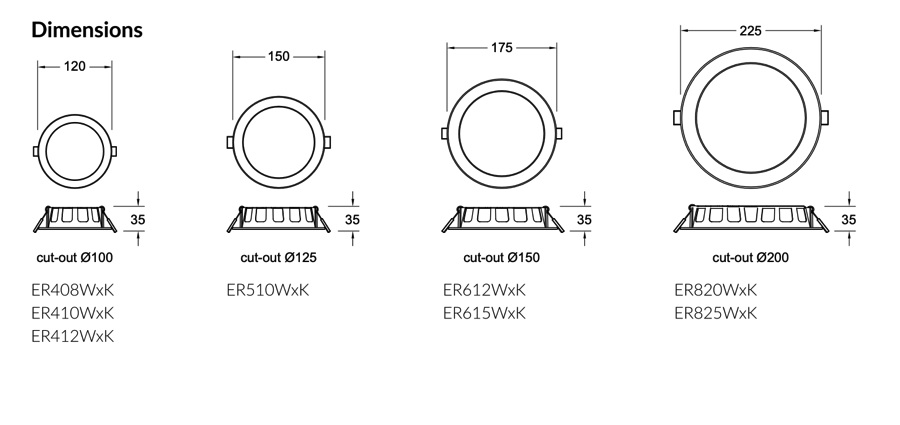

Dimensions

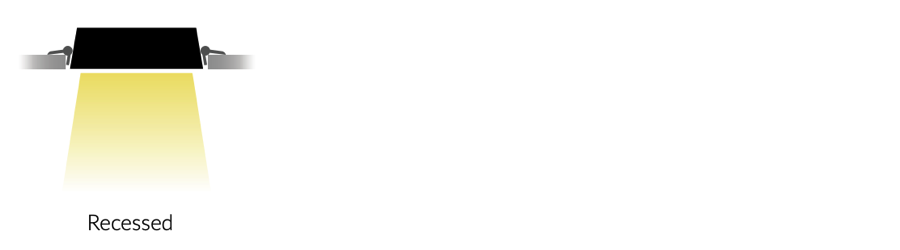

Mounting Methods
Product Datasheet
ERIS ER
(showing 64 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| ER408W3K | Ø120 x 35 | 8 | 800 | 100 | 3000 | |
| ER408W4K | Ø120 x 35 | 8 | 800 | 100 | 4000 | |
| ER408W6K | Ø120 x 35 | 8 | 800 | 100 | 6000 | |
| ER410W3K | Ø120 x 35 | 10 | 1000 | 100 | 3000 | |
| ER410W4K | Ø120 x 35 | 10 | 1000 | 100 | 4000 | |
| ER410W6K | Ø120 x 35 | 10 | 1000 | 100 | 6000 | |
| ER412W3K | Ø120 x 35 | 12 | 1200 | 100 | 3000 | |
| ER412W4K | Ø120 x 35 | 12 | 1200 | 100 | 4000 | |
| ER412W6K | Ø120 x 35 | 12 | 1200 | 100 | 6000 | |
| ER510W3K | Ø150 x 35 | 10 | 1000 | 100 | 3000 | |
| ER510W4K | Ø150 x 35 | 10 | 1000 | 100 | 4000 | |
| ER510W6K | Ø150 x 35 | 10 | 1000 | 100 | 6000 | |
| ER612W3K | Ø175 x 35 | 12 | 1200 | 100 | 3000 | |
| ER612W4K | Ø175 x 35 | 12 | 1200 | 100 | 4000 | |
| ER612W6K | Ø175 x 35 | 12 | 1200 | 100 | 6000 | |
| ER615W3K | Ø175 x 35 | 15 | 1500 | 100 | 3000 | |
| ER615W4K | Ø175 x 35 | 15 | 1500 | 100 | 4000 | |
| ER615W6K | Ø175 x 35 | 15 | 1500 | 100 | 6000 | |
| ER820W3K | Ø225 x 35 | 20 | 2000 | 100 | 3000 | |
| ER820W4K | Ø225 x 35 | 20 | 2000 | 100 | 4000 | |
| ER820W6K | Ø225 x 35 | 20 | 2000 | 100 | 6000 | |
| ER825W3K | Ø225 x 35 | 25 | 2500 | 100 | 3000 | |
| ER825W4K | Ø225 x 35 | 25 | 2500 | 100 | 4000 | |
| ER825W6K | Ø225 x 35 | 25 | 2500 | 100 | 6000 | |
| ER408W3KD | Ø120 x 35 | 8 | 800 | 100 | 3000 | |
| ER408W4KD | Ø120 x 35 | 8 | 800 | 100 | 4000 | |
| ER408W6KD | Ø120 x 35 | 8 | 800 | 100 | 6000 | |
| ER410W3KD | Ø120 x 35 | 10 | 1000 | 100 | 3000 | |
| ER410W4KD | Ø120 x 35 | 10 | 1000 | 100 | 4000 | |
| ER410W6KD | Ø120 x 35 | 10 | 1000 | 100 | 6000 | |
| ER412W3KD | Ø120 x 35 | 12 | 1200 | 100 | 3000 | |
| ER412W4KD | Ø120 x 35 | 12 | 1200 | 100 | 4000 | |
| ER412W6KD | Ø120 x 35 | 12 | 1200 | 100 | 6000 | |
| ER510W3KD | Ø150 x 35 | 10 | 1000 | 100 | 3000 | |
| ER510W4KD | Ø150 x 35 | 10 | 1000 | 100 | 4000 | |
| ER510W6KD | Ø150 x 35 | 10 | 1000 | 100 | 6000 | |
| ER612W3KD | Ø175 x 35 | 12 | 1200 | 100 | 3000 | |
| ER612W4KD | Ø175 x 35 | 12 | 1200 | 100 | 4000 | |
| ER612W6KD | Ø175 x 35 | 12 | 1200 | 100 | 6000 | |
| ER615W3KD | Ø175 x 35 | 15 | 1500 | 100 | 3000 | |
| ER615W4KD | Ø175 x 35 | 15 | 1500 | 100 | 4000 | |
| ER615W6KD | Ø175 x 35 | 15 | 1500 | 100 | 6000 | |
| ER820W3KD | Ø225 x 35 | 20 | 2000 | 100 | 3000 | |
| ER820W4KD | Ø225 x 35 | 20 | 2000 | 100 | 4000 | |
| ER820W6KD | Ø225 x 35 | 20 | 2000 | 100 | 6000 | |
| ER825W3KD | Ø225 x 35 | 25 | 2500 | 100 | 3000 | |
| ER825W4KD | Ø225 x 35 | 25 | 2500 | 100 | 4000 | |
| ER825W6KD | Ø225 x 35 | 25 | 2500 | 100 | 6000 | |
| ER408WCT | Ø120 x 35 | 8 | 800 | 100 | 3000/4000/6000 | |
| ER410WCT | Ø120 x 35 | 10 | 1000 | 100 | 3000/4000/6000 | |
| ER412WCT | Ø120 x 35 | 12 | 1200 | 100 | 3000/4000/6000 | |
| ER510WCT | Ø150 x 35 | 10 | 1000 | 100 | 3000/4000/6000 | |
| ER612WCT | Ø175 x 35 | 12 | 1200 | 100 | 3000/4000/6000 | |
| ER615WCT | Ø175 x 35 | 15 | 1500 | 100 | 3000/4000/6000 | |
| ER820WCT | Ø225 x 35 | 20 | 2000 | 100 | 3000/4000/6000 | |
| ER825WCT | Ø225 x 35 | 25 | 2500 | 100 | 3000/4000/6000 | |
| ER408WCTD | Ø120 x 35 | 8 | 800 | 100 | 3000/4000/6000 | |
| ER410WCTD | Ø120 x 35 | 10 | 1000 | 100 | 3000/4000/6000 | |
| ER412WCTD | Ø120 x 35 | 12 | 1200 | 100 | 3000/4000/6000 | |
| ER510WCTD | Ø150 x 35 | 10 | 1000 | 100 | 3000/4000/6000 | |
| ER612WCTD | Ø175 x 35 | 12 | 1200 | 100 | 3000/4000/6000 | |
| ER615WCTD | Ø175 x 35 | 15 | 1500 | 100 | 3000/4000/6000 | |
| ER820WCTD | Ø225 x 35 | 20 | 2000 | 100 | 3000/4000/6000 | |
| ER825WCTD | Ø225 x 35 | 25 | 2500 | 100 | 3000/4000/6000 |
