FLORENZO FLZ

FLORENZOFLZ
Combining a modern and elegant design with a durable and slim aluminium housing, Florenzo FLZ is both visually appealing and long-lasting. With a variety of lighting distributions available, FLZ provides the flexibility to meet difficult and demanding lighting requirements across a range of applications.
Family Datasheet
Product Information

Item 1 of 1

Product Information

Features

Modern and elegant design
Durable and slim aluminium die-cast housing
Tempered glass cover
Instant turn on
IP66 and IK08 rating
Flexible conduit for cable protection
Integrated or remote gear
Surge protection: 20kV

Suitable Applications

Industrial
Urban & Building
Industrial
Urban & Building
Industrial
Urban & Building

Item 1 of 2

Product Code Key

Specifications

FLORENZO FLZ	FLZ600	FLZ800	FLZ1K0	FLZ1K2
Nominal Power (W)	600	800	1000	1200
Input Voltage (V)	220-240
Frequency (Hz)	50/60
Luminous Flux (lm)	90000	120000	150000	180000
Efficacy (lm/W)	150
CRI	≥80
Power Factor	>0.9
SDCM	≤5
CCT (K)	3000/4000/5000
Product Lifetime (L70B50)	>50000
Operating Temp. (°C)	-30 to 40
Weight (kg)	26	29.8	33.2
IP Rating	IP66
Product Carton qty per box	1
Product Carton Dimension (mm)	855 x 695 x 430
Product Carton Weight for integrated gear (kg)	37		41
Product Carton Weight for remote gear A & B (kg)	37		41

*Data shown are integrated version

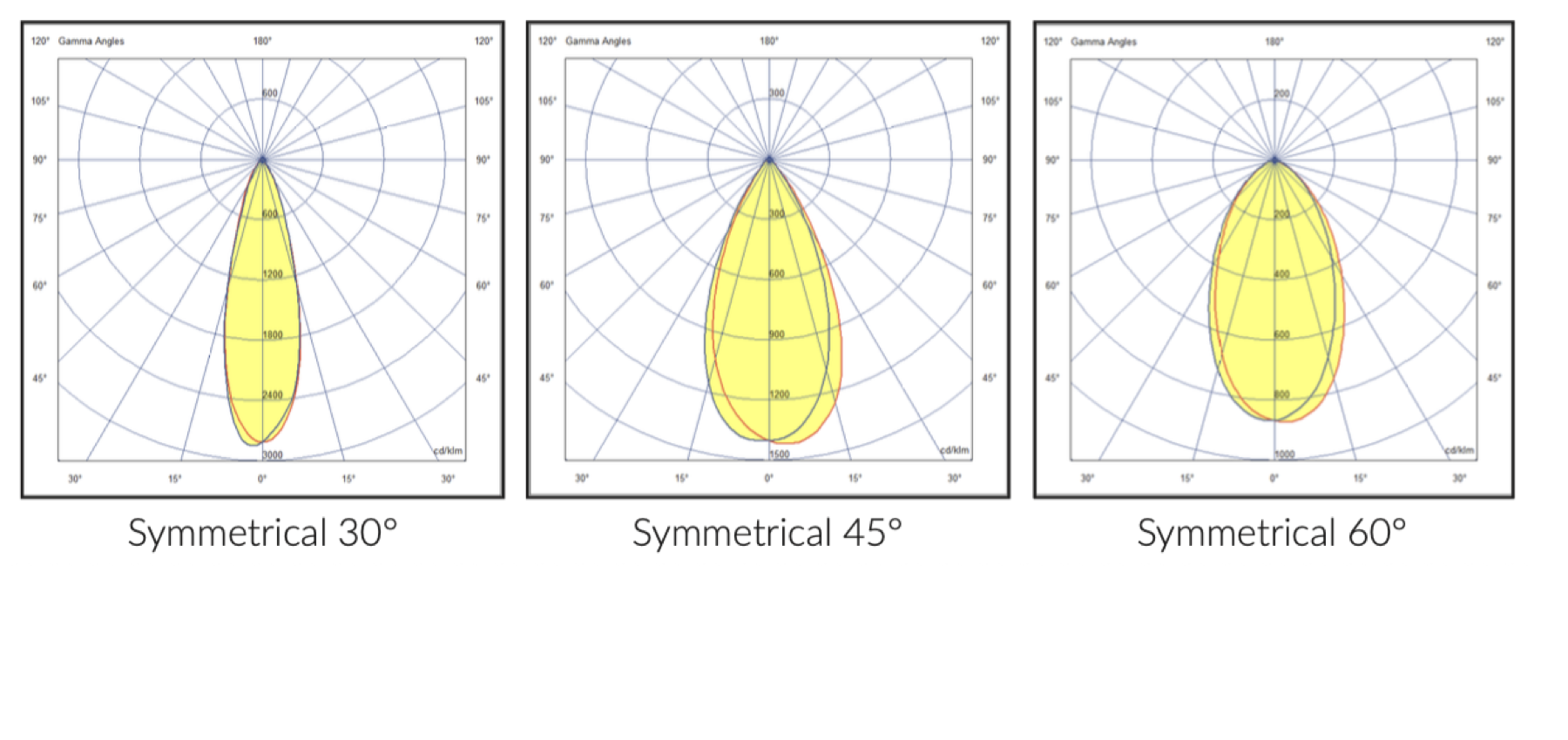

Lighting Distribution

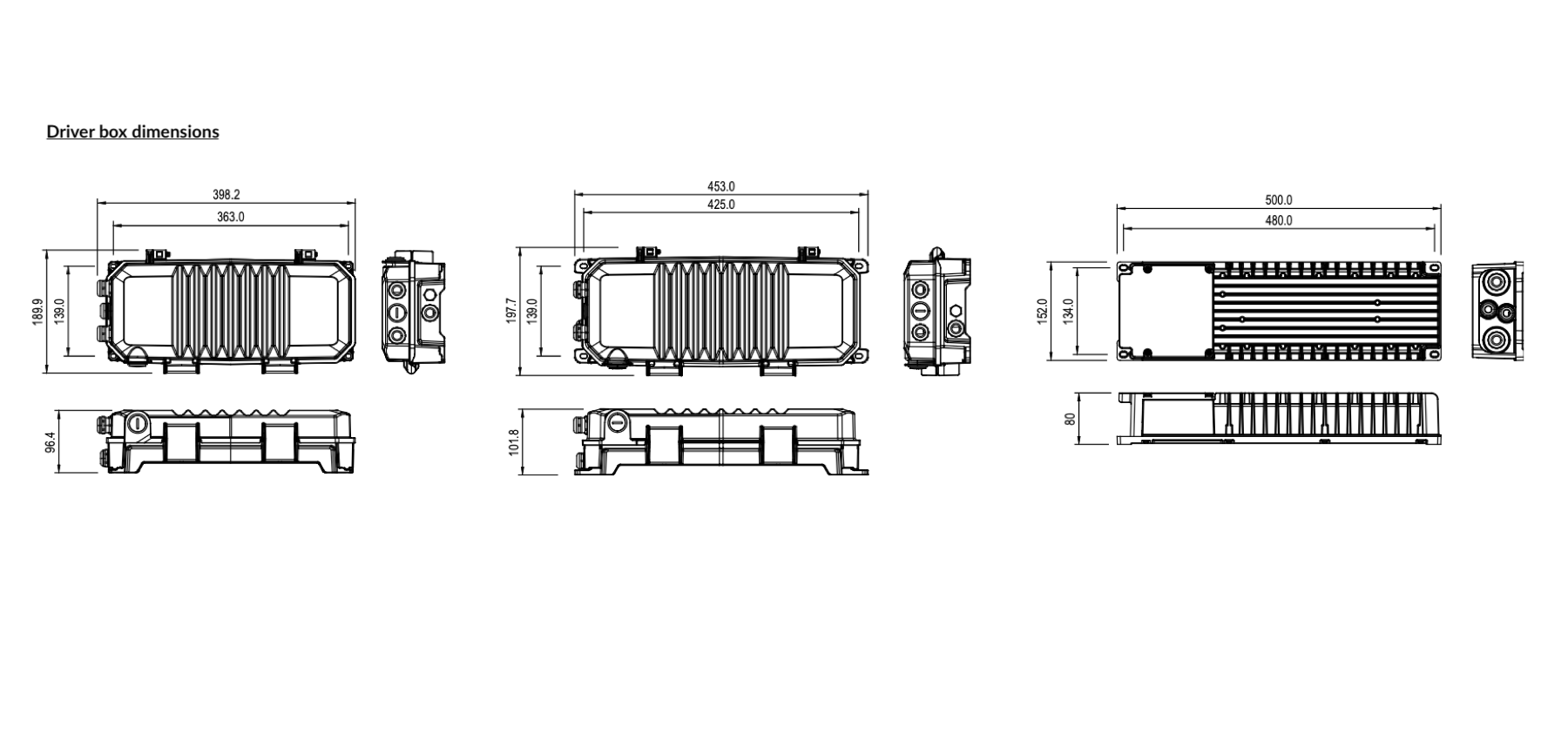

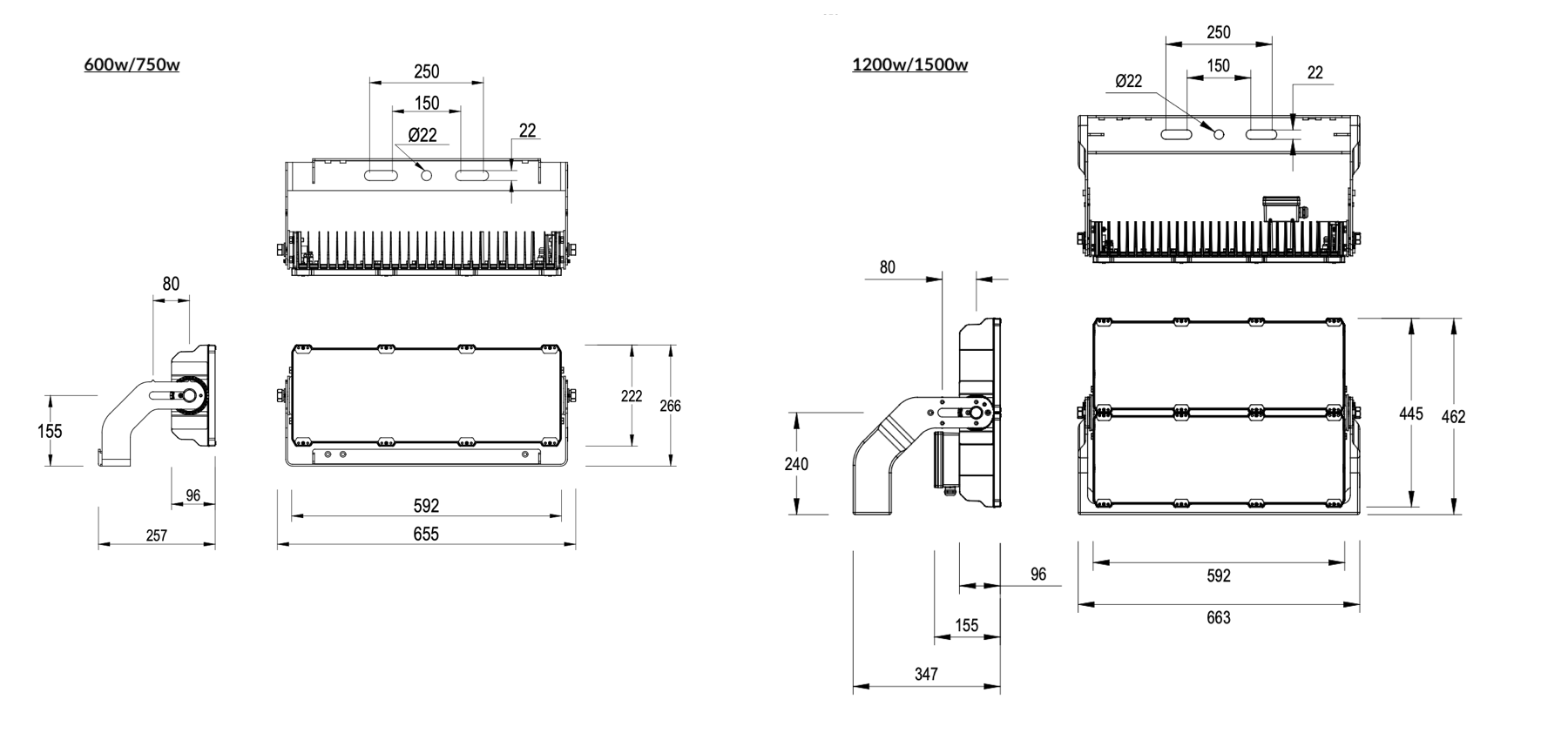

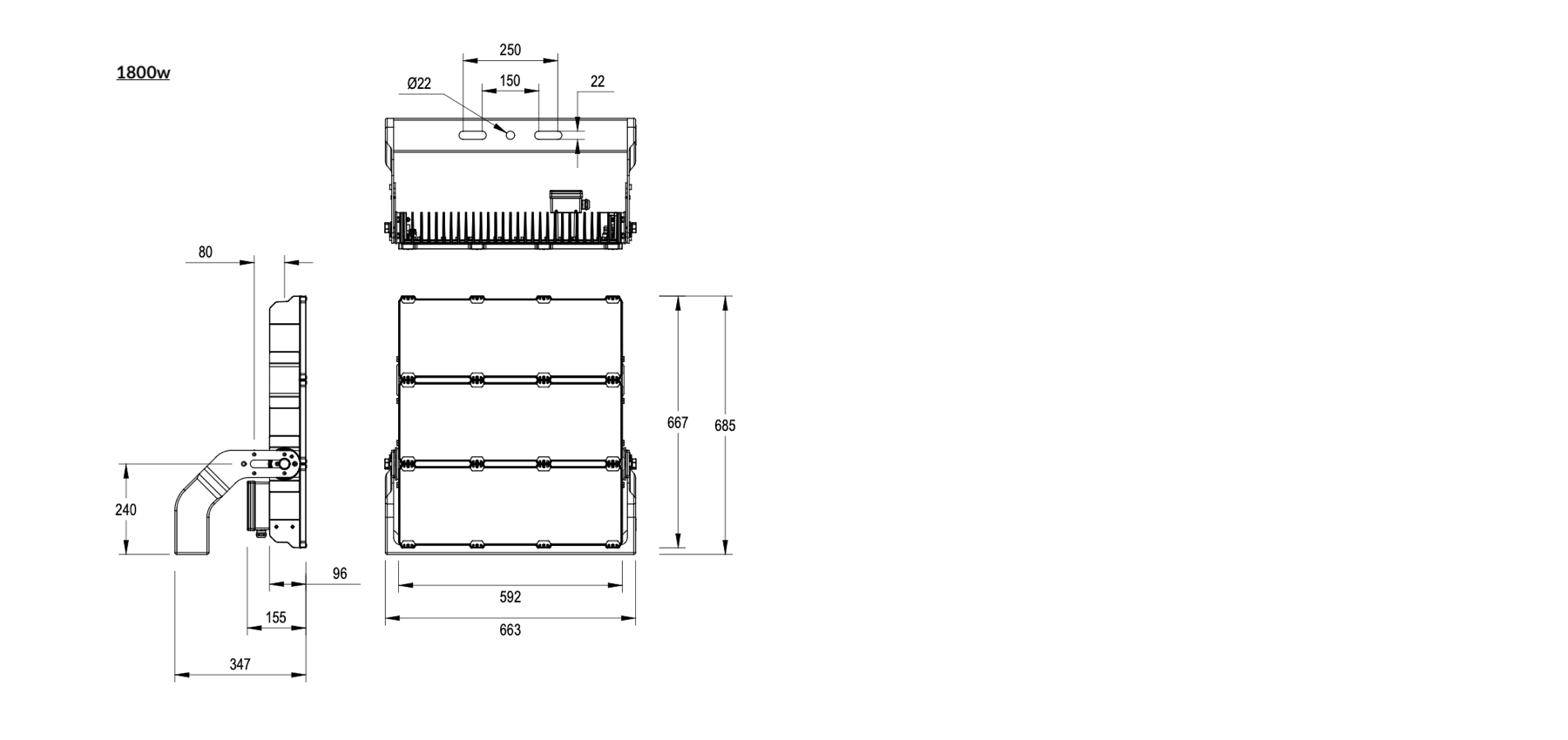

Dimensions

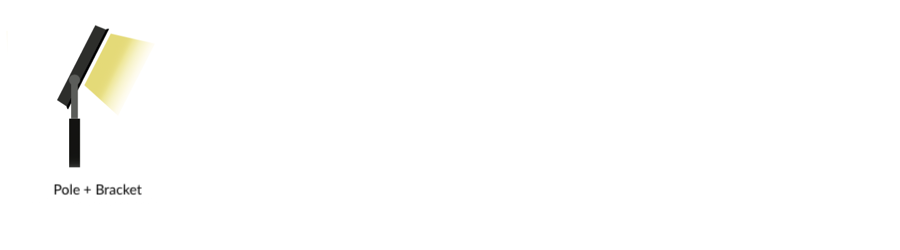

Mounting Methods

Product Datasheet

FLORENZO FLZ

(showing 336 product SKUs)

Model Number	Size	Nominal Power	Luminous Flux (lm)	Efficacy (lm/W)	CCT
FLZ600-R83D08Z1	607 x 597 x 356	600	78000	130	3000
FLZ600-R83D08Z2	607 x 597 x 356	600	78000	130	3000
FLZ600-R83D08Z3	607 x 597 x 356	600	78000	130	3000
FLZ600-R83D08Z4	607 x 597 x 356	600	90000	150	3000
FLZ600-R83D08Z5	607 x 597 x 356	600	90000	150	3000
FLZ600-R83D08Z6	607 x 597 x 356	600	90000	150	3000
FLZ600-R83D08Z7	607 x 597 x 356	600	90000	150	3000
FLZ600-R84D08Z1	607 x 597 x 356	600	78000	130	4000
FLZ600-R84D08Z2	607 x 597 x 356	600	78000	130	4000
FLZ600-R84D08Z3	607 x 597 x 356	600	78000	130	4000
FLZ600-R84D08Z4	607 x 597 x 356	600	90000	150	4000
FLZ600-R84D08Z5	607 x 597 x 356	600	90000	150	4000
FLZ600-R84D08Z6	607 x 597 x 356	600	90000	150	4000
FLZ600-R84D08Z7	607 x 597 x 356	600	90000	150	4000
FLZ600-R85D08Z1	607 x 597 x 356	600	78000	130	5000
FLZ600-R85D08Z2	607 x 597 x 356	600	78000	130	5000
FLZ600-R85D08Z3	607 x 597 x 356	600	78000	130	5000
FLZ600-R85D08Z4	607 x 597 x 356	600	90000	150	5000
FLZ600-R85D08Z5	607 x 597 x 356	600	90000	150	5000
FLZ600-R85D08Z6	607 x 597 x 356	600	90000	150	5000
FLZ600-R85D08Z7	607 x 597 x 356	600	90000	150	5000
FLZ800-R83D08Z1	607 x 597 x 356	800	104000	130	3000
FLZ800-R83D08Z2	607 x 597 x 356	800	104000	130	3000
FLZ800-R83D08Z3	607 x 597 x 356	800	104000	130	3000
FLZ800-R83D08Z4	607 x 597 x 356	800	120000	150	3000
FLZ800-R83D08Z5	607 x 597 x 356	800	120000	150	3000
FLZ800-R83D08Z6	607 x 597 x 356	800	120000	150	3000
FLZ800-R83D08Z7	607 x 597 x 356	800	120000	150	3000
FLZ800-R84D08Z1	607 x 597 x 356	800	104000	130	4000
FLZ800-R84D08Z2	607 x 597 x 356	800	104000	130	4000
FLZ800-R84D08Z3	607 x 597 x 356	800	104000	130	4000
FLZ800-R84D08Z4	607 x 597 x 356	800	120000	150	4000
FLZ800-R84D08Z5	607 x 597 x 356	800	120000	150	4000
FLZ800-R84D08Z6	607 x 597 x 356	800	120000	150	4000
FLZ800-R84D08Z7	607 x 597 x 356	800	120000	150	4000
FLZ800-R85D08Z1	607 x 597 x 356	800	104000	130	5000
FLZ800-R85D08Z2	607 x 597 x 356	800	104000	130	5000
FLZ800-R85D08Z3	607 x 597 x 356	800	104000	130	5000
FLZ800-R85D08Z4	607 x 597 x 356	800	120000	150	5000
FLZ800-R85D08Z5	607 x 597 x 356	800	120000	150	5000
FLZ800-R85D08Z6	607 x 597 x 356	800	120000	150	5000
FLZ800-R85D08Z7	607 x 597 x 356	800	120000	150	5000
FLZ1K0-R83D08Z1	701 x 597 x 356	1000	130000	130	3000
FLZ1K0-R83D08Z2	701 x 597 x 356	1000	130000	130	3000
FLZ1K0-R83D08Z3	701 x 597 x 356	1000	130000	130	3000
FLZ1K0-R83D08Z4	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R83D08Z5	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R83D08Z6	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R83D08Z7	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R84D08Z1	701 x 597 x 356	1000	130000	130	4000
FLZ1K0-R84D08Z2	701 x 597 x 356	1000	130000	130	4000
FLZ1K0-R84D08Z3	701 x 597 x 356	1000	130000	130	4000
FLZ1K0-R84D08Z4	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R84D08Z5	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R84D08Z6	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R84D08Z7	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R85D08Z1	701 x 597 x 356	1000	130000	130	5000
FLZ1K0-R85D08Z2	701 x 597 x 356	1000	130000	130	5000
FLZ1K0-R85D08Z3	701 x 597 x 356	1000	130000	130	5000
FLZ1K0-R85D08Z4	701 x 597 x 356	1000	150000	150	5000
FLZ1K0-R85D08Z5	701 x 597 x 356	1000	150000	150	5000
FLZ1K0-R85D08Z6	701 x 597 x 356	1000	150000	150	5000
FLZ1K0-R85D08Z7	701 x 597 x 356	1000	150000	150	5000
FLZ1K2-R83D08Z1	701 x 597 x 356	1200	156000	130	3000
FLZ1K2-R83D08Z2	701 x 597 x 356	1200	156000	130	3000
FLZ1K2-R83D08Z3	701 x 597 x 356	1200	156000	130	3000
FLZ1K2-R83D08Z4	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R83D08Z5	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R83D08Z6	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R83D08Z7	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R84D08Z1	701 x 597 x 356	1200	156000	130	4000
FLZ1K2-R84D08Z2	701 x 597 x 356	1200	156000	130	4000
FLZ1K2-R84D08Z3	701 x 597 x 356	1200	156000	130	4000
FLZ1K2-R84D08Z4	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R84D08Z5	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R84D08Z6	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R84D08Z7	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R85D08Z1	701 x 597 x 356	1200	156000	130	5000
FLZ1K2-R85D08Z2	701 x 597 x 356	1200	156000	130	5000
FLZ1K2-R85D08Z3	701 x 597 x 356	1200	156000	130	5000
FLZ1K2-R85D08Z4	701 x 597 x 356	1200	180000	150	5000
FLZ1K2-R85D08Z5	701 x 597 x 356	1200	180000	150	5000
FLZ1K2-R85D08Z6	701 x 597 x 356	1200	180000	150	5000
FLZ1K2-R85D08Z7	701 x 597 x 356	1200	180000	150	5000
FLZ600-R83D10Z1	607 x 597 x 356	600	78000	130	3000
FLZ600-R83D10Z2	607 x 597 x 356	600	78000	130	3000
FLZ600-R83D10Z3	607 x 597 x 356	600	78000	130	3000
FLZ600-R83D10Z4	607 x 597 x 356	600	90000	150	3000
FLZ600-R83D10Z5	607 x 597 x 356	600	90000	150	3000
FLZ600-R83D10Z6	607 x 597 x 356	600	90000	150	3000
FLZ600-R83D10Z7	607 x 597 x 356	600	90000	150	3000
FLZ600-R84D10Z1	607 x 597 x 356	600	78000	130	4000
FLZ600-R84D10Z2	607 x 597 x 356	600	78000	130	4000
FLZ600-R84D10Z3	607 x 597 x 356	600	78000	130	4000
FLZ600-R84D10Z4	607 x 597 x 356	600	90000	150	4000
FLZ600-R84D10Z5	607 x 597 x 356	600	90000	150	4000
FLZ600-R84D10Z6	607 x 597 x 356	600	90000	150	4000
FLZ600-R84D10Z7	607 x 597 x 356	600	90000	150	4000
FLZ600-R85D10Z1	607 x 597 x 356	600	78000	130	5000
FLZ600-R85D10Z2	607 x 597 x 356	600	78000	130	5000
FLZ600-R85D10Z3	607 x 597 x 356	600	78000	130	5000
FLZ600-R85D10Z4	607 x 597 x 356	600	90000	150	5000
FLZ600-R85D10Z5	607 x 597 x 356	600	90000	150	5000
FLZ600-R85D10Z6	607 x 597 x 356	600	90000	150	5000
FLZ600-R85D10Z7	607 x 597 x 356	600	90000	150	5000
FLZ800-R83D10Z1	607 x 597 x 356	800	104000	130	3000
FLZ800-R83D10Z2	607 x 597 x 356	800	104000	130	3000
FLZ800-R83D10Z3	607 x 597 x 356	800	104000	130	3000
FLZ800-R83D10Z4	607 x 597 x 356	800	120000	150	3000
FLZ800-R83D10Z5	607 x 597 x 356	800	120000	150	3000
FLZ800-R83D10Z6	607 x 597 x 356	800	120000	150	3000
FLZ800-R83D10Z7	607 x 597 x 356	800	120000	150	3000
FLZ800-R84D10Z1	607 x 597 x 356	800	104000	130	4000
FLZ800-R84D10Z2	607 x 597 x 356	800	104000	130	4000
FLZ800-R84D10Z3	607 x 597 x 356	800	104000	130	4000
FLZ800-R84D10Z4	607 x 597 x 356	800	120000	150	4000
FLZ800-R84D10Z5	607 x 597 x 356	800	120000	150	4000
FLZ800-R84D10Z6	607 x 597 x 356	800	120000	150	4000
FLZ800-R84D10Z7	607 x 597 x 356	800	120000	150	4000
FLZ800-R85D10Z1	607 x 597 x 356	800	104000	130	5000
FLZ800-R85D10Z2	607 x 597 x 356	800	104000	130	5000
FLZ800-R85D10Z3	607 x 597 x 356	800	104000	130	5000
FLZ800-R85D10Z4	607 x 597 x 356	800	120000	150	5000
FLZ800-R85D10Z5	607 x 597 x 356	800	120000	150	5000
FLZ800-R85D10Z6	607 x 597 x 356	800	120000	150	5000
FLZ800-R85D10Z7	607 x 597 x 356	800	120000	150	5000
FLZ1K0-R83D10Z1	701 x 597 x 356	1000	130000	130	3000
FLZ1K0-R83D10Z2	701 x 597 x 356	1000	130000	130	3000
FLZ1K0-R83D10Z3	701 x 597 x 356	1000	130000	130	3000
FLZ1K0-R83D10Z4	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R83D10Z5	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R83D10Z6	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R83D10Z7	701 x 597 x 356	1000	150000	150	3000
FLZ1K0-R84D10Z1	701 x 597 x 356	1000	130000	130	4000
FLZ1K0-R84D10Z2	701 x 597 x 356	1000	130000	130	4000
FLZ1K0-R84D10Z3	701 x 597 x 356	1000	130000	130	4000
FLZ1K0-R84D10Z4	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R84D10Z5	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R84D10Z6	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R84D10Z7	701 x 597 x 356	1000	150000	150	4000
FLZ1K0-R85D10Z1	701 x 597 x 356	1000	130000	130	5000
FLZ1K0-R85D10Z2	701 x 597 x 356	1000	130000	130	5000
FLZ1K0-R85D10Z3	701 x 597 x 356	1000	130000	130	5000
FLZ1K0-R85D10Z4	701 x 597 x 356	1000	150000	150	5000
FLZ1K0-R85D10Z5	701 x 597 x 356	1000	150000	150	5000
FLZ1K0-R85D10Z6	701 x 597 x 356	1000	150000	150	5000
FLZ1K0-R85D10Z7	701 x 597 x 356	1000	150000	150	5000
FLZ1K2-R83D10Z1	701 x 597 x 356	1200	156000	130	3000
FLZ1K2-R83D10Z2	701 x 597 x 356	1200	156000	130	3000
FLZ1K2-R83D10Z3	701 x 597 x 356	1200	156000	130	3000
FLZ1K2-R83D10Z4	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R83D10Z5	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R83D10Z6	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R83D10Z7	701 x 597 x 356	1200	180000	150	3000
FLZ1K2-R84D10Z1	701 x 597 x 356	1200	156000	130	4000
FLZ1K2-R84D10Z2	701 x 597 x 356	1200	156000	130	4000
FLZ1K2-R84D10Z3	701 x 597 x 356	1200	156000	130	4000
FLZ1K2-R84D10Z4	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R84D10Z5	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R84D10Z6	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R84D10Z7	701 x 597 x 356	1200	180000	150	4000
FLZ1K2-R85D10Z1	701 x 597 x 356	1200	156000	130	5000
FLZ1K2-R85D10Z2	701 x 597 x 356	1200	156000	130	5000
FLZ1K2-R85D10Z3	701 x 597 x 356	1200	156000	130	5000
FLZ1K2-R85D10Z4	701 x 597 x 356	1200	180000	150	5000
FLZ1K2-R85D10Z5	701 x 597 x 356	1200	180000	150	5000
FLZ1K2-R85D10Z6	701 x 597 x 356	1200	180000	150	5000
FLZ1K2-R85D10Z7	701 x 597 x 356	1200	180000	150	5000
FLZ600A-R83D07Z1	607 x 597 x 356	600	78000	130	3000
FLZ600A-R83D07Z2	607 x 597 x 356	600	78000	130	3000
FLZ600A-R83D07Z3	607 x 597 x 356	600	78000	130	3000
FLZ600A-R83D07Z4	607 x 597 x 356	600	90000	150	3000
FLZ600A-R83D07Z5	607 x 597 x 356	600	90000	150	3000
FLZ600A-R83D07Z6	607 x 597 x 356	600	90000	150	3000
FLZ600A-R83D07Z7	607 x 597 x 356	600	90000	150	3000
FLZ600A-R84D07Z1	607 x 597 x 356	600	78000	130	4000
FLZ600A-R84D07Z2	607 x 597 x 356	600	78000	130	4000
FLZ600A-R84D07Z3	607 x 597 x 356	600	78000	130	4000
FLZ600A-R84D07Z4	607 x 597 x 356	600	90000	150	4000
FLZ600A-R84D07Z5	607 x 597 x 356	600	90000	150	4000
FLZ600A-R84D07Z6	607 x 597 x 356	600	90000	150	4000
FLZ600A-R84D07Z7	607 x 597 x 356	600	90000	150	4000
FLZ600A-R85D07Z1	607 x 597 x 356	600	78000	130	5000
FLZ600A-R85D07Z2	607 x 597 x 356	600	78000	130	5000
FLZ600A-R85D07Z3	607 x 597 x 356	600	78000	130	5000
FLZ600A-R85D07Z4	607 x 597 x 356	600	90000	150	5000
FLZ600A-R85D07Z5	607 x 597 x 356	600	90000	150	5000
FLZ600A-R85D07Z6	607 x 597 x 356	600	90000	150	5000
FLZ600A-R85D07Z7	607 x 597 x 356	600	90000	150	5000
FLZ800A-R83D07Z1	607 x 597 x 356	800	104000	130	3000
FLZ800A-R83D07Z2	607 x 597 x 356	800	104000	130	3000
FLZ800A-R83D07Z3	607 x 597 x 356	800	104000	130	3000
FLZ800A-R83D07Z4	607 x 597 x 356	800	120000	150	3000
FLZ800A-R83D07Z5	607 x 597 x 356	800	120000	150	3000
FLZ800A-R83D07Z6	607 x 597 x 356	800	120000	150	3000
FLZ800A-R83D07Z7	607 x 597 x 356	800	120000	150	3000
FLZ800A-R84D07Z1	607 x 597 x 356	800	104000	130	4000
FLZ800A-R84D07Z2	607 x 597 x 356	800	104000	130	4000
FLZ800A-R84D07Z3	607 x 597 x 356	800	104000	130	4000
FLZ800A-R84D07Z4	607 x 597 x 356	800	120000	150	4000
FLZ800A-R84D07Z5	607 x 597 x 356	800	120000	150	4000
FLZ800A-R84D07Z6	607 x 597 x 356	800	120000	150	4000
FLZ800A-R84D07Z7	607 x 597 x 356	800	120000	150	4000
FLZ800A-R85D07Z1	607 x 597 x 356	800	104000	130	5000
FLZ800A-R85D07Z2	607 x 597 x 356	800	104000	130	5000
FLZ800A-R85D07Z3	607 x 597 x 356	800	104000	130	5000
FLZ800A-R85D07Z4	607 x 597 x 356	800	120000	150	5000
FLZ800A-R85D07Z5	607 x 597 x 356	800	120000	150	5000
FLZ800A-R85D07Z6	607 x 597 x 356	800	120000	150	5000
FLZ800A-R85D07Z7	607 x 597 x 356	800	120000	150	5000
FLZ1K0A-R83D07Z1	701 x 597 x 356	1000	130000	130	3000
FLZ1K0A-R83D07Z2	701 x 597 x 356	1000	130000	130	3000
FLZ1K0A-R83D07Z3	701 x 597 x 356	1000	130000	130	3000
FLZ1K0A-R83D07Z4	701 x 597 x 356	1000	150000	150	3000
FLZ1K0A-R83D07Z5	701 x 597 x 356	1000	150000	150	3000
FLZ1K0A-R83D07Z6	701 x 597 x 356	1000	150000	150	3000
FLZ1K0A-R83D07Z7	701 x 597 x 356	1000	150000	150	3000
FLZ1K0A-R84D07Z1	701 x 597 x 356	1000	130000	130	4000
FLZ1K0A-R84D07Z2	701 x 597 x 356	1000	130000	130	4000
FLZ1K0A-R84D07Z3	701 x 597 x 356	1000	130000	130	4000
FLZ1K0A-R84D07Z4	701 x 597 x 356	1000	150000	150	4000
FLZ1K0A-R84D07Z5	701 x 597 x 356	1000	150000	150	4000
FLZ1K0A-R84D07Z6	701 x 597 x 356	1000	150000	150	4000
FLZ1K0A-R84D07Z7	701 x 597 x 356	1000	150000	150	4000
FLZ1K0A-R85D07Z1	701 x 597 x 356	1000	130000	130	5000
FLZ1K0A-R85D07Z2	701 x 597 x 356	1000	130000	130	5000
FLZ1K0A-R85D07Z3	701 x 597 x 356	1000	130000	130	5000
FLZ1K0A-R85D07Z4	701 x 597 x 356	1000	150000	150	5000
FLZ1K0A-R85D07Z5	701 x 597 x 356	1000	150000	150	5000
FLZ1K0A-R85D07Z6	701 x 597 x 356	1000	150000	150	5000
FLZ1K0A-R85D07Z7	701 x 597 x 356	1000	150000	150	5000
FLZ1K2A-R83D07Z1	701 x 597 x 356	1200	156000	130	3000
FLZ1K2A-R83D07Z2	701 x 597 x 356	1200	156000	130	3000
FLZ1K2A-R83D07Z3	701 x 597 x 356	1200	156000	130	3000
FLZ1K2A-R83D07Z4	701 x 597 x 356	1200	180000	150	3000
FLZ1K2A-R83D07Z5	701 x 597 x 356	1200	180000	150	3000
FLZ1K2A-R83D07Z6	701 x 597 x 356	1200	180000	150	3000
FLZ1K2A-R83D07Z7	701 x 597 x 356	1200	180000	150	3000
FLZ1K2A-R84D07Z1	701 x 597 x 356	1200	156000	130	4000
FLZ1K2A-R84D07Z2	701 x 597 x 356	1200	156000	130	4000
FLZ1K2A-R84D07Z3	701 x 597 x 356	1200	156000	130	4000
FLZ1K2A-R84D07Z4	701 x 597 x 356	1200	180000	150	4000
FLZ1K2A-R84D07Z5	701 x 597 x 356	1200	180000	150	4000
FLZ1K2A-R84D07Z6	701 x 597 x 356	1200	180000	150	4000
FLZ1K2A-R84D07Z7	701 x 597 x 356	1200	180000	150	4000
FLZ1K2A-R85D07Z1	701 x 597 x 356	1200	156000	130	5000
FLZ1K2A-R85D07Z2	701 x 597 x 356	1200	156000	130	5000
FLZ1K2A-R85D07Z3	701 x 597 x 356	1200	156000	130	5000
FLZ1K2A-R85D07Z4	701 x 597 x 356	1200	180000	150	5000
FLZ1K2A-R85D07Z5	701 x 597 x 356	1200	180000	150	5000
FLZ1K2A-R85D07Z6	701 x 597 x 356	1200	180000	150	5000
FLZ1K2A-R85D07Z7	701 x 597 x 356	1200	180000	150	5000
FLZ600B-R83D07Z1	607 x 597 x 356	600	78000	130	3000
FLZ600B-R83D07Z2	607 x 597 x 356	600	78000	130	3000
FLZ600B-R83D07Z3	607 x 597 x 356	600	78000	130	3000
FLZ600B-R83D07Z4	607 x 597 x 356	600	90000	150	3000
FLZ600B-R83D07Z5	607 x 597 x 356	600	90000	150	3000
FLZ600B-R83D07Z6	607 x 597 x 356	600	90000	150	3000
FLZ600B-R83D07Z7	607 x 597 x 356	600	90000	150	3000
FLZ600B-R84D07Z1	607 x 597 x 356	600	78000	130	4000
FLZ600B-R84D07Z2	607 x 597 x 356	600	78000	130	4000
FLZ600B-R84D07Z3	607 x 597 x 356	600	78000	130	4000
FLZ600B-R84D07Z4	607 x 597 x 356	600	90000	150	4000
FLZ600B-R84D07Z5	607 x 597 x 356	600	90000	150	4000
FLZ600B-R84D07Z6	607 x 597 x 356	600	90000	150	4000
FLZ600B-R84D07Z7	607 x 597 x 356	600	90000	150	4000
FLZ600B-R85D07Z1	607 x 597 x 356	600	78000	130	5000
FLZ600B-R85D07Z2	607 x 597 x 356	600	78000	130	5000
FLZ600B-R85D07Z3	607 x 597 x 356	600	78000	130	5000
FLZ600B-R85D07Z4	607 x 597 x 356	600	90000	150	5000
FLZ600B-R85D07Z5	607 x 597 x 356	600	90000	150	5000
FLZ600B-R85D07Z6	607 x 597 x 356	600	90000	150	5000
FLZ600B-R85D07Z7	607 x 597 x 356	600	90000	150	5000
FLZ800B-R83D07Z1	607 x 597 x 356	800	104000	130	3000
FLZ800B-R83D07Z2	607 x 597 x 356	800	104000	130	3000
FLZ800B-R83D07Z3	607 x 597 x 356	800	104000	130	3000
FLZ800B-R83D07Z4	607 x 597 x 356	800	120000	150	3000
FLZ800B-R83D07Z5	607 x 597 x 356	800	120000	150	3000
FLZ800B-R83D07Z6	607 x 597 x 356	800	120000	150	3000
FLZ800B-R83D07Z7	607 x 597 x 356	800	120000	150	3000
FLZ800B-R84D07Z1	607 x 597 x 356	800	104000	130	4000
FLZ800B-R84D07Z2	607 x 597 x 356	800	104000	130	4000
FLZ800B-R84D07Z3	607 x 597 x 356	800	104000	130	4000
FLZ800B-R84D07Z4	607 x 597 x 356	800	120000	150	4000
FLZ800B-R84D07Z5	607 x 597 x 356	800	120000	150	4000
FLZ800B-R84D07Z6	607 x 597 x 356	800	120000	150	4000
FLZ800B-R84D07Z7	607 x 597 x 356	800	120000	150	4000
FLZ800B-R85D07Z1	607 x 597 x 356	800	104000	130	5000
FLZ800B-R85D07Z2	607 x 597 x 356	800	104000	130	5000
FLZ800B-R85D07Z3	607 x 597 x 356	800	104000	130	5000
FLZ800B-R85D07Z4	607 x 597 x 356	800	120000	150	5000
FLZ800B-R85D07Z5	607 x 597 x 356	800	120000	150	5000
FLZ800B-R85D07Z6	607 x 597 x 356	800	120000	150	5000
FLZ800B-R85D07Z7	607 x 597 x 356	800	120000	150	5000
FLZ1K0B-R83D07Z1	701 x 597 x 356	1000	130000	130	3000
FLZ1K0B-R83D07Z2	701 x 597 x 356	1000	130000	130	3000
FLZ1K0B-R83D07Z3	701 x 597 x 356	1000	130000	130	3000
FLZ1K0B-R83D07Z4	701 x 597 x 356	1000	150000	150	3000
FLZ1K0B-R83D07Z5	701 x 597 x 356	1000	150000	150	3000
FLZ1K0B-R83D07Z6	701 x 597 x 356	1000	150000	150	3000
FLZ1K0B-R83D07Z7	701 x 597 x 356	1000	150000	150	3000
FLZ1K0B-R84D07Z1	701 x 597 x 356	1000	130000	130	4000
FLZ1K0B-R84D07Z2	701 x 597 x 356	1000	130000	130	4000
FLZ1K0B-R84D07Z3	701 x 597 x 356	1000	130000	130	4000
FLZ1K0B-R84D07Z4	701 x 597 x 356	1000	150000	150	4000
FLZ1K0B-R84D07Z5	701 x 597 x 356	1000	150000	150	4000
FLZ1K0B-R84D07Z6	701 x 597 x 356	1000	150000	150	4000
FLZ1K0B-R84D07Z7	701 x 597 x 356	1000	150000	150	4000
FLZ1K0B-R85D07Z1	701 x 597 x 356	1000	130000	130	5000
FLZ1K0B-R85D07Z2	701 x 597 x 356	1000	130000	130	5000
FLZ1K0B-R85D07Z3	701 x 597 x 356	1000	130000	130	5000
FLZ1K0B-R85D07Z4	701 x 597 x 356	1000	150000	150	5000
FLZ1K0B-R85D07Z5	701 x 597 x 356	1000	150000	150	5000
FLZ1K0B-R85D07Z6	701 x 597 x 356	1000	150000	150	5000
FLZ1K0B-R85D07Z7	701 x 597 x 356	1000	150000	150	5000
FLZ1K2B-R83D07Z1	701 x 597 x 356	1200	156000	130	3000
FLZ1K2B-R83D07Z2	701 x 597 x 356	1200	156000	130	3000
FLZ1K2B-R83D07Z3	701 x 597 x 356	1200	156000	130	3000
FLZ1K2B-R83D07Z4	701 x 597 x 356	1200	180000	150	3000
FLZ1K2B-R83D07Z5	701 x 597 x 356	1200	180000	150	3000
FLZ1K2B-R83D07Z6	701 x 597 x 356	1200	180000	150	3000
FLZ1K2B-R83D07Z7	701 x 597 x 356	1200	180000	150	3000
FLZ1K2B-R84D07Z1	701 x 597 x 356	1200	156000	130	4000
FLZ1K2B-R84D07Z2	701 x 597 x 356	1200	156000	130	4000
FLZ1K2B-R84D07Z3	701 x 597 x 356	1200	156000	130	4000
FLZ1K2B-R84D07Z4	701 x 597 x 356	1200	180000	150	4000
FLZ1K2B-R84D07Z5	701 x 597 x 356	1200	180000	150	4000
FLZ1K2B-R84D07Z6	701 x 597 x 356	1200	180000	150	4000
FLZ1K2B-R84D07Z7	701 x 597 x 356	1200	180000	150	4000
FLZ1K2B-R85D07Z1	701 x 597 x 356	1200	156000	130	5000
FLZ1K2B-R85D07Z2	701 x 597 x 356	1200	156000	130	5000
FLZ1K2B-R85D07Z3	701 x 597 x 356	1200	156000	130	5000
FLZ1K2B-R85D07Z4	701 x 597 x 356	1200	180000	150	5000
FLZ1K2B-R85D07Z5	701 x 597 x 356	1200	180000	150	5000
FLZ1K2B-R85D07Z6	701 x 597 x 356	1200	180000	150	5000
FLZ1K2B-R85D07Z7	701 x 597 x 356	1200	180000	150	5000

Installation Manual

Features

Suitable Applications

Industrial

Product Datasheet
