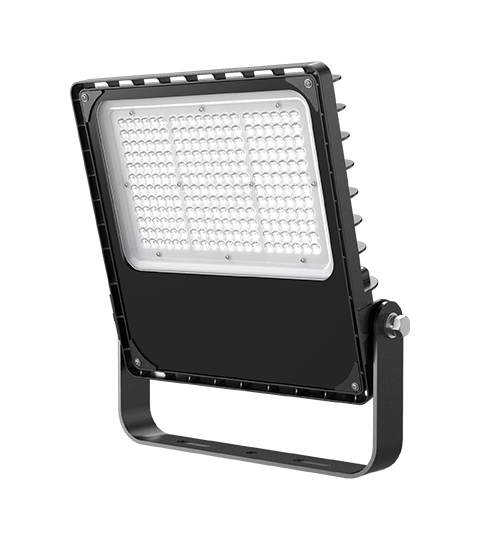

FLORYNFLS G2Combining a modern and elegant design with a durable and slim aluminium housing, FLoryn FLS G2 is both visually appealing and long-lasting. With a variety of lighting distributions available, FLS provides the flexibility to meet difficult and demanding lighting requirements across a range of applications.
Item 1 of 1
Features
- Modern and elegant design
- Durable and slim aluminium die-cast housing
- Tempered glass cover
- Full range of models from 15W to 300W
- Instant turn on
- IP66 and IK08 rating
Suitable Applications
Item 1 of 2
Specifications
Model | FLS15G2-xyz | FLS20G2 -xyz | FLS30G2 -xyz | FLS50G2 -xyz | FLS100G2 -xyz | FLS150G2 -xyz | FLS200G2 -xyz | FLS240G2 -xyz | FLS300G2 -xyz |
|---|---|---|---|---|---|---|---|---|---|
Nominal Power (W) | 15 | 20 | 30 | 50 | 100 | 150 | 200 | 240 | 300 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||||||||
Luminaire Flux (lm) | 2444 | 3126 | 4582 | 6808 | 15,207 | 21,505 | 28,221 | 35,041 | 43,557 |
Luminaire Efficacy (lm/W) | 149 | 146 | 144 | 135 | 145 | 143 | 142 | 144 | 145 |
CRI | > 80 | ||||||||
Power Factor | > 0.90 | ||||||||
Colour Temp. (K) | 3000 / 4000 / 5000 / 6000 | ||||||||
SDCM | ≤ 6 | ||||||||
Beam Angle (º) | Asymmetric / 60° / Type I Very short 26°x60° tilt 10° / 25° | ||||||||
Luminaire Rated Life (hrs) | > 50,000 | ||||||||
Operating Temp. (°C) | -30 to +40 | ||||||||
Weight (kg) | 2.0 | 2.0 | 2.1 | 2.1 | 2.8 | 3.8 | 4.8 | 6.3 | 7.4 |
“x” denotes CRI & CCT, R83 = CRI>80, 3000K ; R84 = CRI>80, 4000K ; R85 = CRI>80, 5000K ; R86 = CRI>80, 6000K
“y” denotes Dimming, D05 = 0-10v + PWM + Resistor (omit code for standard non dimmable)
“z” denotes Beam Angle, Z01 = Asymmetric ; Z02 = 60° ; Z03 = Type I Very short 26°x60° tilt 10° ; Z04 = 25°
*Specifications shown for 4000K, Asymmetric beam angle
Lighting Distribution
Dimensions
Mounting Methods
Product Datasheet
FLORYN FLS G2
(showing 144 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| FLS100G2-R83Z01 | 301 x 244 x 64 | 100 | 15207 | 145 | 3000 |  |
| FLS100G2-R83Z02 | 301 x 244 x 64 | 100 | 15048 | 147 | 3000 | |
| FLS100G2-R83Z03 | 301 x 244 x 64 | 100 | 14222 | 139 | 3000 | |
| FLS100G2-R83Z04 | 301 x 244 x 64 | 100 | 15048 | 147 | 3000 | |
| FLS100G2-R84Z01 | 301 x 244 x 64 | 100 | 15207 | 145 | 4000 | |
| FLS100G2-R84Z02 | 301 x 244 x 64 | 100 | 15048 | 147 | 4000 | |
| FLS100G2-R84Z03 | 301 x 244 x 64 | 100 | 14222 | 139 | 4000 | |
| FLS100G2-R84Z04 | 301 x 244 x 64 | 100 | 15048 | 147 | 4000 | |
| FLS100G2-R85Z01 | 301 x 244 x 64 | 100 | 15207 | 145 | 5000 | |
| FLS100G2-R85Z02 | 301 x 244 x 64 | 100 | 15048 | 147 | 5000 | |
| FLS100G2-R85Z03 | 301 x 244 x 64 | 100 | 14222 | 139 | 5000 | |
| FLS100G2-R85Z04 | 301 x 244 x 64 | 100 | 15048 | 147 | 5000 | |
| FLS100G2-R86Z01 | 301 x 244 x 64 | 100 | 15207 | 145 | 6000 | |
| FLS100G2-R86Z02 | 301 x 244 x 64 | 100 | 15048 | 147 | 6000 | |
| FLS100G2-R86Z03 | 301 x 244 x 64 | 100 | 14222 | 139 | 6000 | |
| FLS100G2-R86Z04 | 301 x 244 x 64 | 100 | 15048 | 147 | 6000 | |
| FLS150G2-R83Z01 | 343 x 274 x 65 | 150 | 21505 | 143 | 3000 | |
| FLS150G2-R83Z02 | 343 x 274 x 65 | 150 | 21690 | 145 | 3000 | |
| FLS150G2-R83Z03 | 343 x 274 x 65 | 150 | 20712 | 137 | 3000 | |
| FLS150G2-R83Z04 | 343 x 274 x 65 | 150 | 21434 | 142 | 3000 | |
| FLS150G2-R84Z01 | 343 x 274 x 65 | 150 | 21505 | 143 | 4000 | |
| FLS150G2-R84Z02 | 343 x 274 x 65 | 150 | 21690 | 145 | 4000 | |
| FLS150G2-R84Z03 | 343 x 274 x 65 | 150 | 20712 | 137 | 4000 | |
| FLS150G2-R84Z04 | 343 x 274 x 65 | 150 | 21434 | 142 | 4000 | |
| FLS150G2-R85Z01 | 343 x 274 x 65 | 150 | 21505 | 143 | 5000 | |
| FLS150G2-R85Z02 | 343 x 274 x 65 | 150 | 21690 | 145 | 5000 | |
| FLS150G2-R85Z03 | 343 x 274 x 65 | 150 | 20712 | 137 | 5000 | |
| FLS150G2-R85Z04 | 343 x 274 x 65 | 150 | 21434 | 142 | 5000 | |
| FLS150G2-R86Z01 | 343 x 274 x 65 | 150 | 21505 | 143 | 6000 | |
| FLS150G2-R86Z02 | 343 x 274 x 65 | 150 | 21690 | 145 | 6000 | |
| FLS150G2-R86Z03 | 343 x 274 x 65 | 150 | 20712 | 137 | 6000 | |
| FLS150G2-R86Z04 | 343 x 274 x 65 | 150 | 21434 | 142 | 6000 | |
| FLS15G2-R83Z01 | 247 x 214 x 57 | 15 | 2444 | 149 | 3000 | |
| FLS15G2-R83Z02 | 247 x 214 x 57 | 15 | 2444 | 146 | 3000 | |
| FLS15G2-R83Z03 | 247 x 214 x 57 | 15 | 2444 | 138 | 3000 | |
| FLS15G2-R83Z04 | 247 x 214 x 57 | 15 | 2444 | 149 | 3000 | |
| FLS15G2-R84Z01 | 247 x 214 x 57 | 15 | 2444 | 149 | 4000 | |
| FLS15G2-R84Z02 | 247 x 214 x 57 | 15 | 2444 | 146 | 4000 | |
| FLS15G2-R84Z03 | 247 x 214 x 57 | 15 | 2444 | 138 | 4000 | |
| FLS15G2-R84Z04 | 247 x 214 x 57 | 15 | 2444 | 149 | 4000 | |
| FLS15G2-R85Z01 | 247 x 214 x 57 | 15 | 2444 | 149 | 5000 | |
| FLS15G2-R85Z02 | 247 x 214 x 57 | 15 | 2444 | 146 | 5000 | |
| FLS15G2-R85Z03 | 247 x 214 x 57 | 15 | 2444 | 138 | 5000 | |
| FLS15G2-R85Z04 | 247 x 214 x 57 | 15 | 2444 | 149 | 5000 | |
| FLS15G2-R86Z01 | 247 x 214 x 57 | 15 | 2444 | 149 | 6000 | |
| FLS15G2-R86Z02 | 247 x 214 x 57 | 15 | 2444 | 146 | 6000 | |
| FLS15G2-R86Z03 | 247 x 214 x 57 | 15 | 2444 | 138 | 6000 | |
| FLS15G2-R86Z04 | 247 x 214 x 57 | 15 | 2444 | 149 | 6000 | |
| FLS200G2-R83Z01 | 398 x 316 x 69 | 200 | 28221 | 142 | 3000 | |
| FLS200G2-R83Z02 | 398 x 316 x 69 | 200 | 28415 | 144 | 3000 | |
| FLS200G2-R83Z03 | 398 x 316 x 69 | 200 | 27595 | 136 | 3000 | |
| FLS200G2-R83Z04 | 398 x 316 x 69 | 200 | 27752 | 140 | 3000 | |
| FLS200G2-R84Z01 | 398 x 316 x 69 | 200 | 28221 | 142 | 4000 | |
| FLS200G2-R84Z02 | 398 x 316 x 69 | 200 | 28415 | 144 | 4000 | |
| FLS200G2-R84Z03 | 398 x 316 x 69 | 200 | 27595 | 136 | 4000 | |
| FLS200G2-R84Z04 | 398 x 316 x 69 | 200 | 27752 | 140 | 4000 | |
| FLS200G2-R85Z01 | 398 x 316 x 69 | 200 | 28221 | 142 | 5000 | |
| FLS200G2-R85Z02 | 398 x 316 x 69 | 200 | 28415 | 144 | 5000 | |
| FLS200G2-R85Z03 | 398 x 316 x 69 | 200 | 27595 | 136 | 5000 | |
| FLS200G2-R85Z04 | 398 x 316 x 69 | 200 | 27752 | 140 | 5000 | |
| FLS200G2-R86Z01 | 398 x 316 x 69 | 200 | 28221 | 142 | 6000 | |
| FLS200G2-R86Z02 | 398 x 316 x 69 | 200 | 28415 | 144 | 6000 | |
| FLS200G2-R86Z03 | 398 x 316 x 69 | 200 | 27595 | 136 | 6000 | |
| FLS200G2-R86Z04 | 398 x 316 x 69 | 200 | 27752 | 140 | 6000 | |
| FLS20G2-R83Z01 | 247 x 214 x 57 | 20 | 3126 | 146 | 3000 | |
| FLS20G2-R83Z02 | 247 x 214 x 57 | 20 | 3126 | 146 | 3000 | |
| FLS20G2-R83Z03 | 247 x 214 x 57 | 20 | 3126 | 146 | 3000 | |
| FLS20G2-R83Z04 | 247 x 214 x 57 | 20 | 3126 | 146 | 3000 | |
| FLS20G2-R84Z01 | 247 x 214 x 57 | 20 | 3126 | 146 | 4000 | |
| FLS20G2-R84Z02 | 247 x 214 x 57 | 20 | 3126 | 146 | 4000 | |
| FLS20G2-R84Z03 | 247 x 214 x 57 | 20 | 3126 | 146 | 4000 | |
| FLS20G2-R84Z04 | 247 x 214 x 57 | 20 | 3126 | 146 | 4000 | |
| FLS20G2-R85Z01 | 247 x 214 x 57 | 20 | 3126 | 146 | 5000 | |
| FLS20G2-R85Z02 | 247 x 214 x 57 | 20 | 3126 | 146 | 5000 | |
| FLS20G2-R85Z03 | 247 x 214 x 57 | 20 | 3126 | 146 | 5000 | |
| FLS20G2-R85Z04 | 247 x 214 x 57 | 20 | 3126 | 146 | 5000 | |
| FLS20G2-R86Z01 | 247 x 214 x 57 | 20 | 3126 | 146 | 6000 | |
| FLS20G2-R86Z02 | 247 x 214 x 57 | 20 | 3126 | 146 | 6000 | |
| FLS20G2-R86Z03 | 247 x 214 x 57 | 20 | 3126 | 146 | 6000 | |
| FLS20G2-R86Z04 | 247 x 214 x 57 | 20 | 3126 | 146 | 6000 | |
| FLS240G2-R83Z01 | 444 x 383 x 76 | 240 | 35041 | 144 | 3000 | |
| FLS240G2-R83Z02 | 444 x 383 x 76 | 240 | 35490 | 147 | 3000 | |
| FLS240G2-R83Z03 | 444 x 383 x 76 | 240 | 33544 | 139 | 3000 | |
| FLS240G2-R83Z04 | 444 x 383 x 76 | 240 | 34542 | 143 | 3000 | |
| FLS240G2-R84Z01 | 444 x 383 x 76 | 240 | 35041 | 144 | 4000 | |
| FLS240G2-R84Z02 | 444 x 383 x 76 | 240 | 35490 | 147 | 4000 | |
| FLS240G2-R84Z03 | 444 x 383 x 76 | 240 | 33544 | 139 | 4000 | |
| FLS240G2-R84Z04 | 444 x 383 x 76 | 240 | 34542 | 143 | 4000 | |
| FLS240G2-R85Z01 | 444 x 383 x 76 | 240 | 35041 | 144 | 5000 | |
| FLS240G2-R85Z02 | 444 x 383 x 76 | 240 | 35490 | 147 | 5000 | |
| FLS240G2-R85Z03 | 444 x 383 x 76 | 240 | 33544 | 139 | 5000 | |
| FLS240G2-R85Z04 | 444 x 383 x 76 | 240 | 34542 | 143 | 5000 | |
| FLS240G2-R86Z01 | 444 x 383 x 76 | 240 | 35041 | 144 | 6000 | |
| FLS240G2-R86Z02 | 444 x 383 x 76 | 240 | 35490 | 147 | 6000 | |
| FLS240G2-R86Z03 | 444 x 383 x 76 | 240 | 33544 | 139 | 6000 | |
| FLS240G2-R86Z04 | 444 x 383 x 76 | 240 | 34542 | 143 | 6000 | |
| FLS300G2-R83Z01 | 444 x 383 x 76 | 300 | 43557 | 145 | 3000 | |
| FLS300G2-R83Z02 | 444 x 383 x 76 | 300 | 44090 | 147 | 3000 | |
| FLS300G2-R83Z03 | 444 x 383 x 76 | 300 | 42420 | 140 | 3000 | |
| FLS300G2-R83Z04 | 444 x 383 x 76 | 300 | 43453 | 143 | 3000 | |
| FLS300G2-R84Z01 | 444 x 383 x 76 | 300 | 43557 | 145 | 4000 | |
| FLS300G2-R84Z02 | 444 x 383 x 76 | 300 | 44090 | 147 | 4000 | |
| FLS300G2-R84Z03 | 444 x 383 x 76 | 300 | 42420 | 140 | 4000 | |
| FLS300G2-R84Z04 | 444 x 383 x 76 | 300 | 43453 | 143 | 4000 | |
| FLS300G2-R85Z01 | 444 x 383 x 76 | 300 | 43557 | 145 | 5000 | |
| FLS300G2-R85Z02 | 444 x 383 x 76 | 300 | 44090 | 147 | 5000 | |
| FLS300G2-R85Z03 | 444 x 383 x 76 | 300 | 42420 | 140 | 5000 | |
| FLS300G2-R85Z04 | 444 x 383 x 76 | 300 | 43453 | 143 | 5000 | |
| FLS300G2-R86Z01 | 444 x 383 x 76 | 300 | 43557 | 145 | 6000 | |
| FLS300G2-R86Z02 | 444 x 383 x 76 | 300 | 44090 | 147 | 6000 | |
| FLS300G2-R86Z03 | 444 x 383 x 76 | 300 | 42420 | 140 | 6000 | |
| FLS300G2-R86Z04 | 444 x 383 x 76 | 300 | 43453 | 143 | 6000 | |
| FLS30G2-R83Z01 | 247 x 214 x 57 | 30 | 4582 | 144 | 3000 | |
| FLS30G2-R83Z02 | 247 x 214 x 57 | 30 | 4640 | 146 | 3000 | |
| FLS30G2-R83Z03 | 247 x 214 x 57 | 30 | 4385 | 138 | 3000 | |
| FLS30G2-R83Z04 | 247 x 214 x 57 | 30 | 4514 | 143 | 3000 | |
| FLS30G2-R84Z01 | 247 x 214 x 57 | 30 | 4582 | 144 | 4000 | |
| FLS30G2-R84Z02 | 247 x 214 x 57 | 30 | 4640 | 146 | 4000 | |
| FLS30G2-R84Z03 | 247 x 214 x 57 | 30 | 4385 | 138 | 4000 | |
| FLS30G2-R84Z04 | 247 x 214 x 57 | 30 | 4514 | 143 | 4000 | |
| FLS30G2-R85Z01 | 247 x 214 x 57 | 30 | 4582 | 144 | 5000 | |
| FLS30G2-R85Z02 | 247 x 214 x 57 | 30 | 4640 | 146 | 5000 | |
| FLS30G2-R85Z03 | 247 x 214 x 57 | 30 | 4385 | 138 | 5000 | |
| FLS30G2-R85Z04 | 247 x 214 x 57 | 30 | 4514 | 143 | 5000 | |
| FLS30G2-R86Z01 | 247 x 214 x 57 | 30 | 4582 | 144 | 6000 | |
| FLS30G2-R86Z02 | 247 x 214 x 57 | 30 | 4640 | 146 | 6000 | |
| FLS30G2-R86Z03 | 247 x 214 x 57 | 30 | 4385 | 138 | 6000 | |
| FLS30G2-R86Z04 | 247 x 214 x 57 | 30 | 4514 | 143 | 6000 | |
| FLS50G2-R83Z01 | 247 x 214 x 57 | 50 | 6808 | 135 | 3000 | |
| FLS50G2-R83Z02 | 247 x 214 x 57 | 50 | 6808 | 135 | 3000 | |
| FLS50G2-R83Z03 | 247 x 214 x 57 | 50 | 6808 | 135 | 3000 | |
| FLS50G2-R83Z04 | 247 x 214 x 57 | 50 | 6808 | 135 | 3000 | |
| FLS50G2-R84Z01 | 247 x 214 x 57 | 50 | 6808 | 135 | 4000 | |
| FLS50G2-R84Z02 | 247 x 214 x 57 | 50 | 6808 | 135 | 4000 | |
| FLS50G2-R84Z03 | 247 x 214 x 57 | 50 | 6808 | 135 | 4000 | |
| FLS50G2-R84Z04 | 247 x 214 x 57 | 50 | 6808 | 135 | 4000 | |
| FLS50G2-R85Z01 | 247 x 214 x 57 | 50 | 6808 | 135 | 5000 | |
| FLS50G2-R85Z02 | 247 x 214 x 57 | 50 | 6808 | 135 | 5000 | |
| FLS50G2-R85Z03 | 247 x 214 x 57 | 50 | 6808 | 135 | 5000 | |
| FLS50G2-R85Z04 | 247 x 214 x 57 | 50 | 6808 | 135 | 5000 | |
| FLS50G2-R86Z01 | 247 x 214 x 57 | 50 | 6808 | 135 | 6000 | |
| FLS50G2-R86Z02 | 247 x 214 x 57 | 50 | 6808 | 135 | 6000 | |
| FLS50G2-R86Z03 | 247 x 214 x 57 | 50 | 6808 | 135 | 6000 | |
| FLS50G2-R86Z04 | 247 x 214 x 57 | 50 | 6808 | 135 | 6000 | |
