FRIPSIAFPB G3Fripsia FPB G3 prioritizes visual comfort comfortable lighting quality. It achieves this while providing instant ON/OFF functionality, eliminating any delays in lighting up a space. Additionally, the absence of UV radiation emissions makes them gentle on the eyes, reducing potential health risks associated with UV exposure.
Item 1 of 1
Features
- Instant ON/OFF
- No UV radiation
- Soft & comfort light
- Multiple installation methods
- Ultra slim and light weight
Suitable Applications
Item 1 of 3
Specifications
Model | FPBW230G3xK | FPBW235G3xK | FPB430G3xK | FPB435G3xK | FPBW450G3xK |
|---|---|---|---|---|---|
Nominal Power (W) | 30 | 35 | 30 | 35 | 50 |
Input Voltage | 220 – 240 VAC 50 / 60 Hz | ||||
Luminous Flux (lm) | 3000 | 3500 | 3000 | 3500 | 5000 |
Efficacy (lm/W) | 100 | 100 | 100 | 100 | 100 |
CRI | ≥ 80 | ||||
Power Factor | 0.90 | ||||
SDCM | < 5 | ||||
Colour Temp. (K) | 3000 / 4000 / 6000 | ||||
LED Life L70B50 (hr) | > 50,000 | ||||
Ambient Temp. ta (°C) | 40 | ||||
Weight (kg) | 2.0 | 2.0 | 2.1 | 2.1 | 4.5 |
“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 6 = 6000K

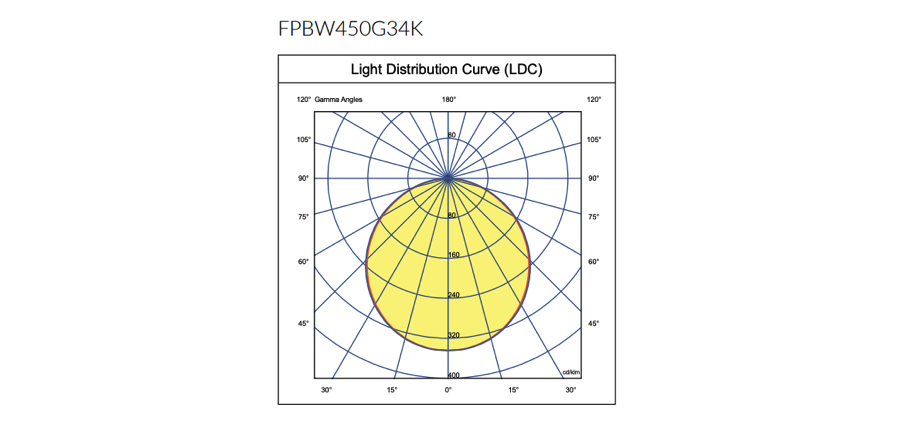

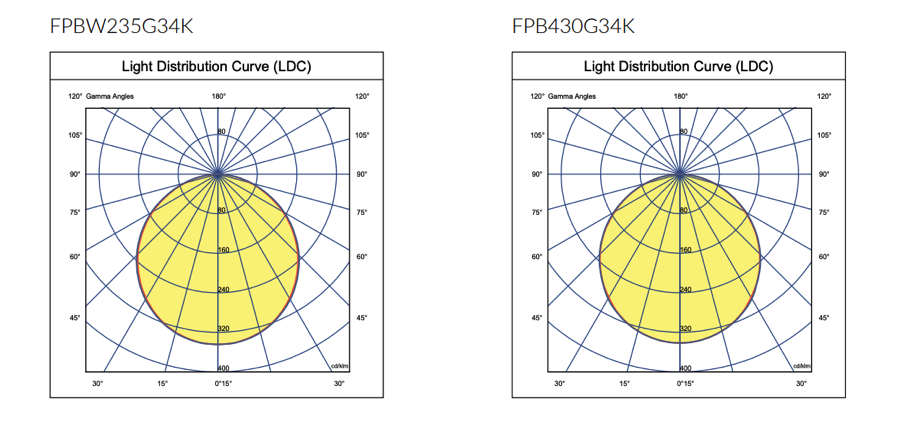

Lighting Distribution

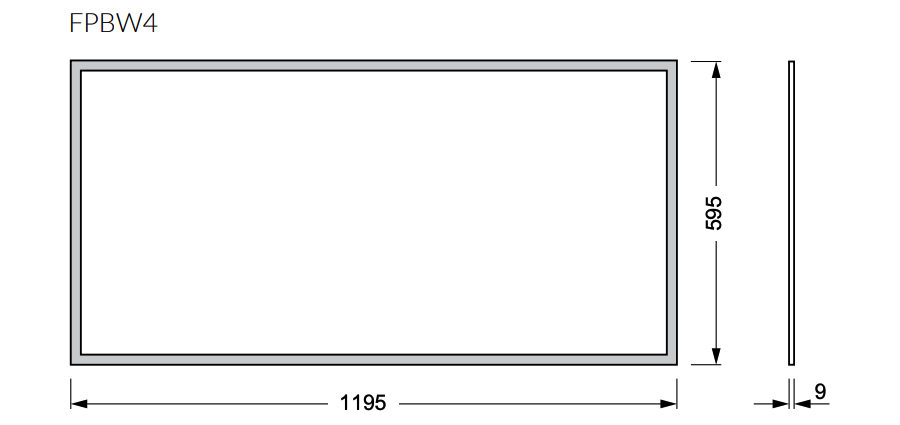

Dimensions

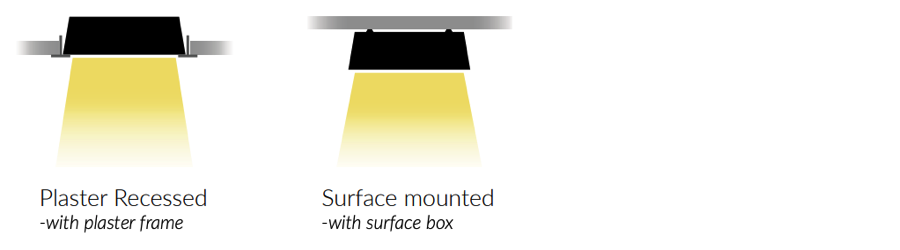

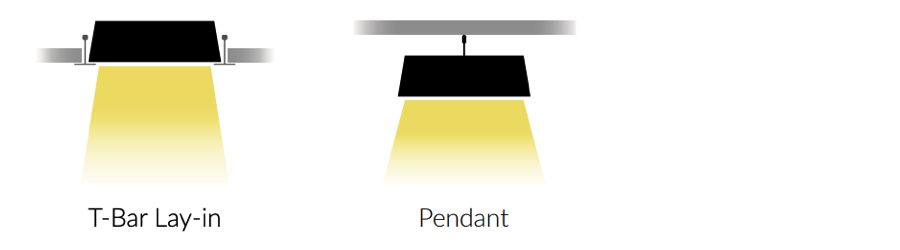

Mounting Methods
Product Datasheet
FRIPSIA FPB G3
(showing 19 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| FPB430 | 1195 x 295 x 9 | 30 | 3000 | 100 | 3000/4000/6000 | |
| FPB430G33K | 1195 x 295 x 9 | 30 | 3000 | 100 | 3000 | |
| FPB430G34K | 1195 x 295 x 9 | 30 | 3000 | 100 | 4000 | |
| FPB430G36K | 1195 x 295 x 9 | 30 | 3000 | 100 | 6000 | |
| FPB435 | 1195 x 295 x 9 | 35 | 3500 | 100 | 3000/4000/6000 | |
| FPB435G33K | 1195 x 295 x 9 | 35 | 3500 | 100 | 3000 | |
| FPB435G34K | 1195 x 295 x 9 | 35 | 3500 | 100 | 4000 | |
| FPB435G36K | 1195 x 295 x 9 | 35 | 3500 | 100 | 6000 | |
| FPBW230 | 595 x 595 x 9 | 30 | 3000 | 100 | 3000/4000/6000 | |
| FPBW230G33K | 595 x 595 x 9 | 30 | 3000 | 100 | 3000 | |
| FPBW230G34K | 595 x 595 x 9 | 30 | 3000 | 100 | 4000 | |
| FPBW230G36K | 595 x 595 x 9 | 30 | 3000 | 100 | 6000 | |
| FPBW235 | 595 x 595 x 9 | 35 | 3500 | 100 | 3000/4000/6000 | |
| FPBW235G33K | 595 x 595 x 9 | 35 | 3500 | 100 | 3000 | |
| FPBW235G34K | 595 x 595 x 9 | 35 | 3500 | 100 | 4000 | |
| FPBW235G36K | 595 x 595 x 9 | 35 | 3500 | 100 | 6000 | |
| FPBW450G33K | 1195 x 595 x 9 | 50 | 5000 | 100 | 3000 | |
| FPBW450G34K | 1195 x 595 x 9 | 50 | 5000 | 100 | 4000 | |
| FPBW450G36K | 1195 x 595 x 9 | 50 | 5000 | 100 | 6000 |
