LXM

Features

  • Cross section 50mm wide & 75mm high
  • Available models length from 570mm to 3090mm
  • Extruded aluminium body
  • Energy saving & high-performance LED light source
  • Long life 50,000 hrs LED
  • Flicker-free
  • User-friendly connection and installation
  • Uniform light effect and distribution
  • Polycarbonate diffuser with glare control film
  • Various mounting methods (pendant / surface)
  • Reliable thermal management for long life and lumen maintenance
Dim Optional
Indoor
IP20

Suitable Applications

Specifications
Expand
Lambda LXMLXM0615LXM0620LXM1220LXM1235LXM1435LXM2255LXM3060
Nominal Power (W)1520355560
Input Voltage (Vac)220-240
Frequency (Hz)50/60
LED Lumen (lm)16502200385060506600
Efficacy (lm/W)110
Typ. CRI (Ra)>80, >90 (optional)
Power Factor>0.9
SDCM≤3 step MacAdam
Colour Temp. (K)3000/4000/6500
Rated Life Span>50,000hrs
IP RatingIP20
Dimensions (L x W x H)570 x 50 x 751130 x 50 x 751410 x 50 x 752250 x 50 x 753090 x 50 x 75
Beam Angle (°)140
HousingExtruded aluminium casing
FinishingEpoxy powder coating
OpticsOpal lens & LGP
Casing ColourWhite/Black

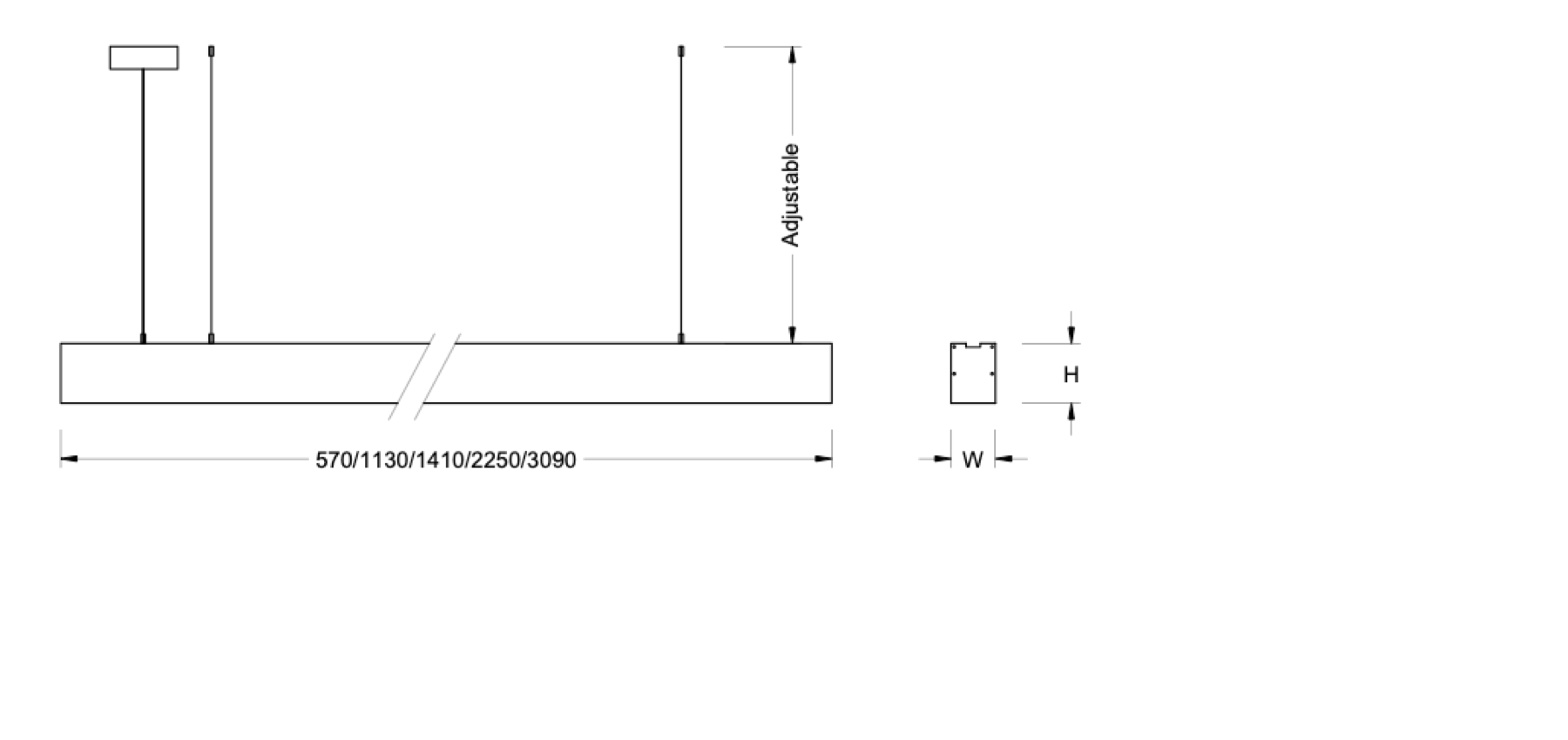

Dimensions
Expand
Dimension 1800x850

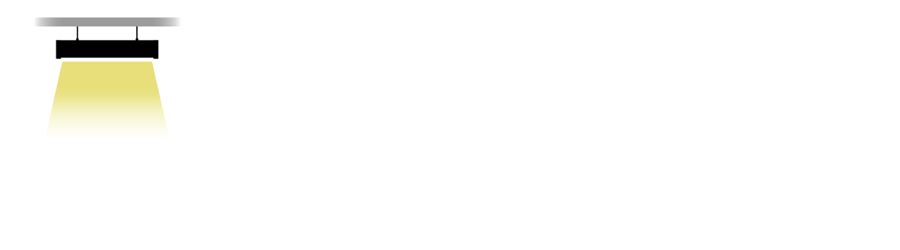

Mounting Methods
Expand
Mounting 900x250

Product Datasheet

LAMBDA LXM
(showing 7 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
LXM0615570 x 50 x 751516501103000/4000/6500
LXM0620570 x 50 x 752022001103000/4000/6500
LXM12201130 x 50 x 752022001103000/4000/6500
LXM12351130 x 50 x 753538501103000/4000/6500
LXM14351410 x 50 x 753538501103000/4000/6500
LXM22552250 x 50 x 755560501103000/4000/6500
LXM3060        3090 x 50 x 756066001103000/4000/6500
