LXR

Features

  • Available models length from 570mm to 3090mm
  • Extruded aluminium body
  • Energy saving & high-performance LED light source
  • Long life 50,000 hrs LED
  • Flicker-free
  • Uniform light effect and distribution
  • Polycarbonate diffuser with glare control film
  • Reliable thermal management for long life and lumen maintenance
Dim Optional
Indoor
IP20

Suitable Applications

Specifications
Expand
Lambda LXRLXR0615LXR0620LXR1220LXR1235LXR1435LXR2255LXR3060
Nominal Power (W)1520355560
Input Voltage (Vac)220-240
Frequency (Hz)50/60
LED Lumen (lm)16502200385060506600
Efficacy (lm/W)110
Typ. CRI (Ra)>80, >90 (optional)
Power Factor>0.9
SDCM≤3 step MacAdam
Colour Temp. (K)3000/4000/6500
Beam Angle (°)140
Rated Life Span>50,000hrs
IP RatingIP20
Dimensions (L x W x H)594 x 64 x 321144 x 64 x 321424 x 64 x 322264 x 64 x 323104 x 64 x 32
Cut-out (L x W)570 x 521130 x 521410 x 522250 x 523090 x 52
HousingExtruded aluminium casing
FinishingEpoxy powder coating
OpticsOpal lens & LGP

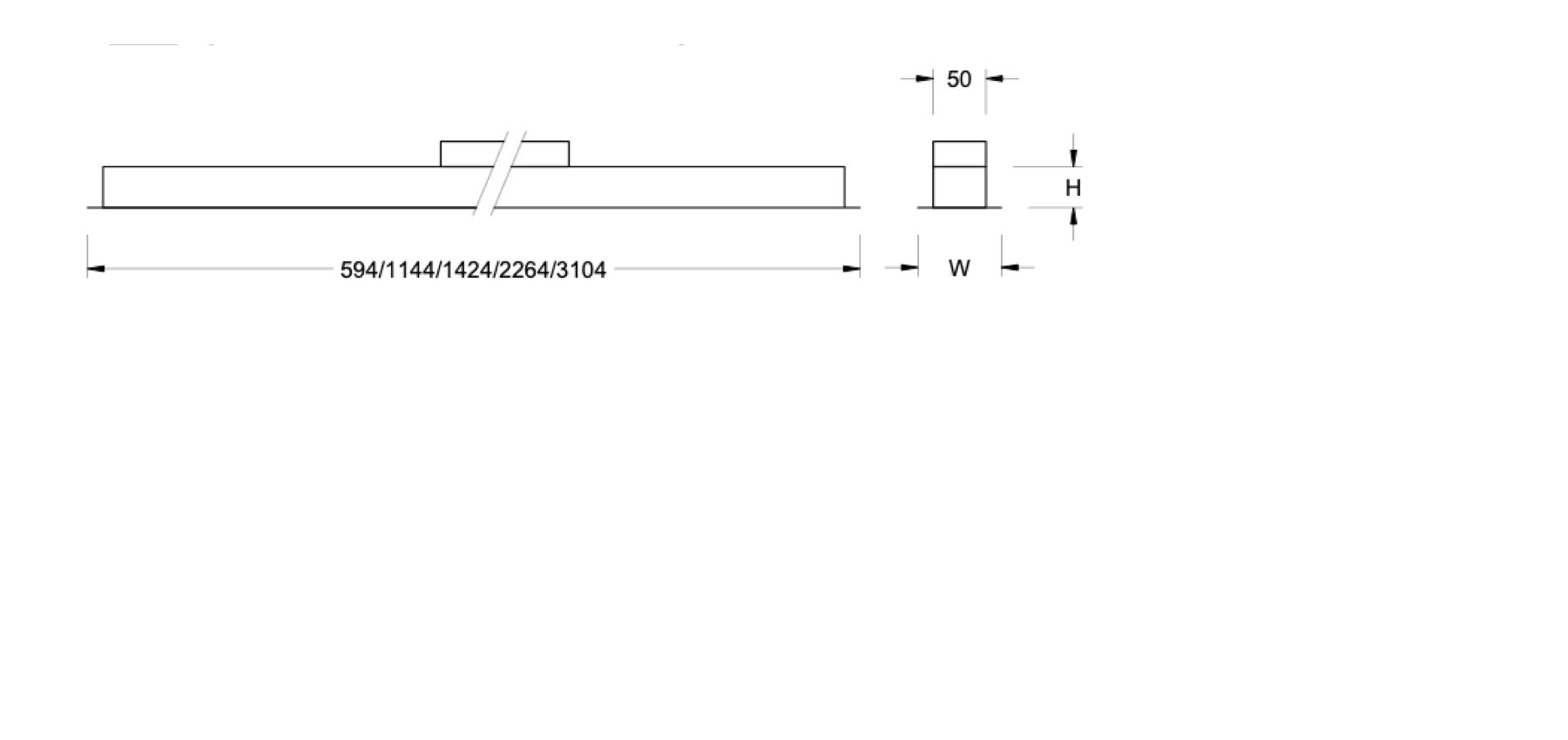

Dimensions
Expand
Dimension 1800x850

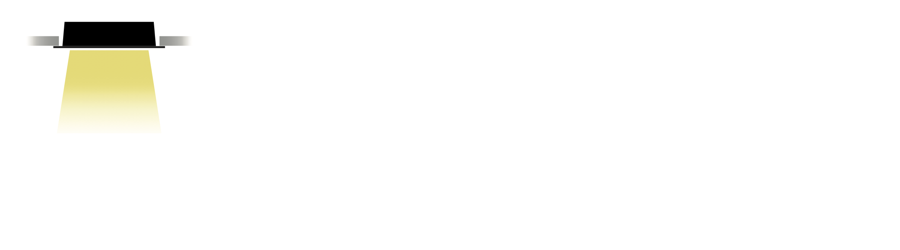

Mounting Methods
Expand
Mounting 900x250

Product Datasheet

LAMBDA LXR
(showing 7 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
LXR0615594 x 64 x 321516501103000/4000/6500
LXR0620594 x 64 x 322022001103000/4000/6500
LXR12201144 x 64 x 322022001103000/4000/6500
LXR12351144 x 64 x 323538501103000/4000/6500
LXR14351424 x 64 x 323538501103000/4000/6500
LXR22552264 x 64 x 325560501103000/4000/6500
LXR3060        3104 x 64 x 326066001103000/4000/6500
