LENHOF G3

LENHOFG3
In industrial contexts, the Clear or K12 Prismatic Diffuser feature is pivotal, offering the choice between unfiltered light and controlled light dispersion for reduced glare and enhanced visual comfort. Complemented by the instant Start-Up for immediate illumination and a low-profile with 70mm Height for space efficiency, Lenhof is ideally tailored to meet the specific demands of industrial environments.
Family Datasheet
Product Information

Item 1 of 1

Features

Item 1 of 2

Specifications

Model	LHB4100G3-xK01	LHB4100G3-xK06	LHB4150G3-xK01	LHB4150G3-xK06
Diffuser	Clear	Prismatic K12	Clear	Prismatic K12
Nominal Power (W)	100		150
Input Voltage	200 – 240 VAC 50 / 60 Hz
Luminous Flux (lm)	14,100	12,770	19,530	17,460
Luminaire Efficacy (lm/W)	141	128	130	116
CRI	> 80
Power Factor	> 0.95
Colour Temp. (K)	3000 / 4000 / 6000
Luminaire Rated Life (hrs)	> 50,000
Operating Temp. (°C)	-20 to +35
Weight (kg)	4.5		4.5

“x” denotes CRI & CCT, R83 = CRI>80, 3000K ; R84 = CRI>80, 4000K ; R86 = CRI>80, 6000K

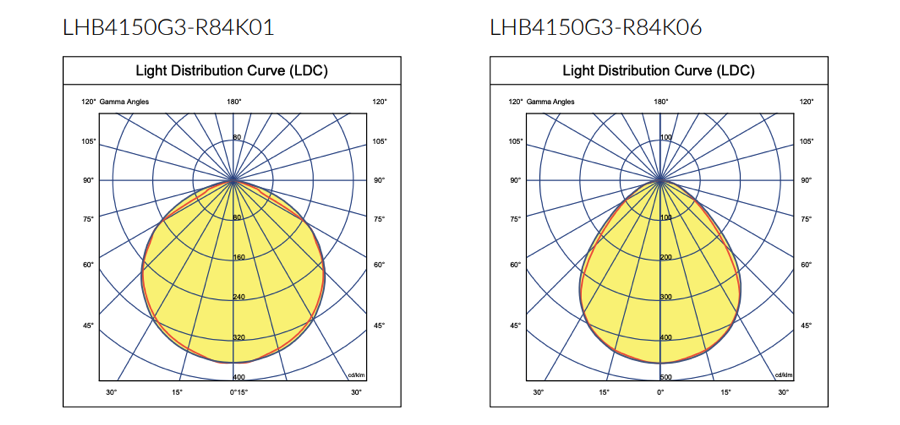

Lighting Distribution

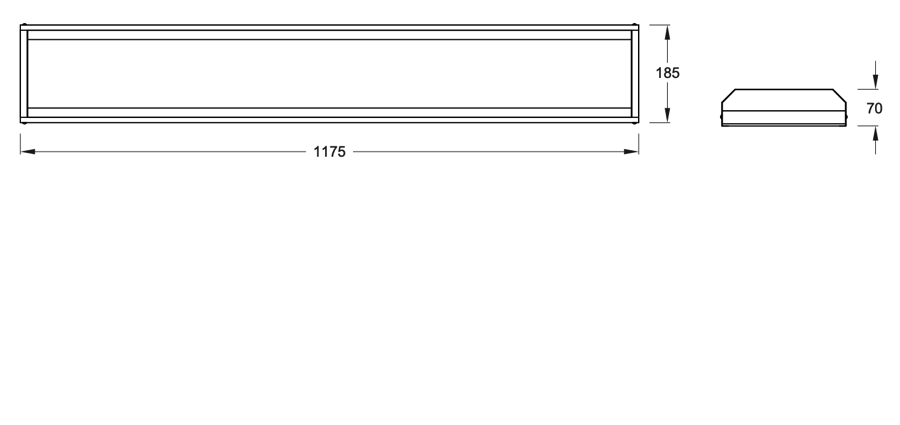

Dimensions

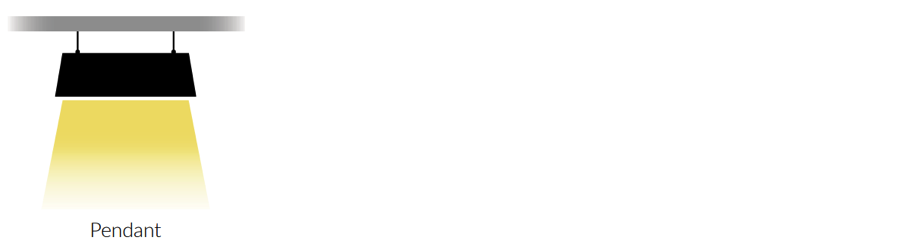

Mounting Methods

LENHOF G3

(showing 14 product SKUs)

Model Number	Size	Nominal Power	Luminous Flux (lm)	Efficacy (lm/W)	CCT
LHB4100G3	1175 x 185 x 70	100	14100	141/128	3000/4000/6000
LHB4100G3-R83K01	1175 x 185 x 70	100	14100	141	3000
LHB4100G3-R83K06	1175 x 185 x 70	100	12770	128	3000
LHB4100G3-R84K01	1175 x 185 x 70	100	14100	141	4000
LHB4100G3-R84K06	1175 x 185 x 70	100	12770	128	4000
LHB4100G3-R86K01	1175 x 185 x 70	100	14100	141	6000
LHB4100G3-R86K06	1175 x 185 x 70	100	12770	128	6000
LHB4150G3	1175 x 185 x 70	150	19350	130/116	3000/4000/6000
LHB4150G3-R83K01	1175 x 185 x 70	150	19530	130	3000
LHB4150G3-R83K06	1175 x 185 x 70	150	17460	116	3000
LHB4150G3-R84K01	1175 x 185 x 70	150	19530	130	4000
LHB4150G3-R84K06	1175 x 185 x 70	150	17460	116	4000
LHB4150G3-R86K01	1175 x 185 x 70	150	19530	130	6000
LHB4150G3-R86K06	1175 x 185 x 70	150	17460	116	6000
