SLP

Features

  • Elegant & super-slim aesthetics
  • Super luminaire efficiency up to 150 lm/W
  • 7 kinds of optics and advanced thermal management
  • Up to ME1 lighting class application
  • Dark sky friendly, up to G6 glare rating
  • Marine grade aluminium option available
  • Flexible and intelligent drivers for smart city
  • Low wind area and drop protector
  • Tool free installation and maintenance
  • Sleek design & robust
  • SPD up to 20kA/kV
  • IP66 and IK09
  • 1-10V dimming
Dimmable
IK09
IP66
Outdoor

Suitable Applications

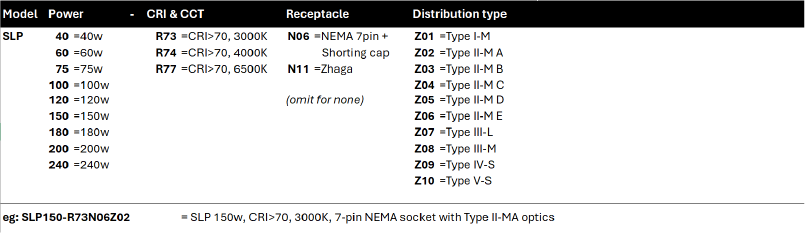

Product Code Key
Expand
product code key
Specifications
Expand
PELION SLPSLP40SLP75SLP150SLP200
Nominal Power (W)4075150200
Input Voltage (V)220-240
Frequency (Hz)50/60
Luminous Flux (lm)5400101252025027000
Efficacy (lm/W)135
CRI>70
Power Factor>0.9
SDCM<5
CCT (K)3000/4000/6500
DistributionType I-M, Type II-M A, Type II-M B, Type II-M C, Type II-M D, Type II-M E, Type III-L, Type III-M, Type IV-S, Type V-S
Product Lifetime (L70B50) (hrs)>50000
Operating Temp. (°C)-35 to 50
ColourGrey
Weight (kg)3.257.2
IKIK09
IP RatingIP66
Product Carton qty per box1
Product Carton Dimension (mm)605 x 270 x 130710 x 320 x 130880 x 370 x 140
Product Carton Weight (kg)3.85.87.9

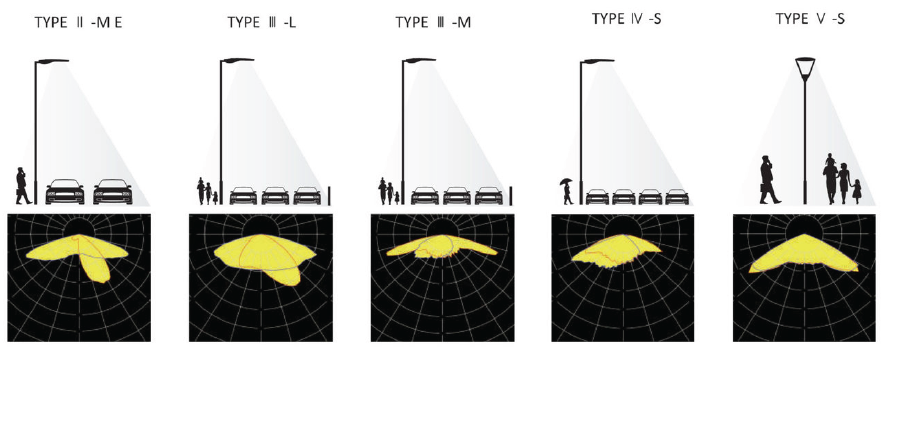

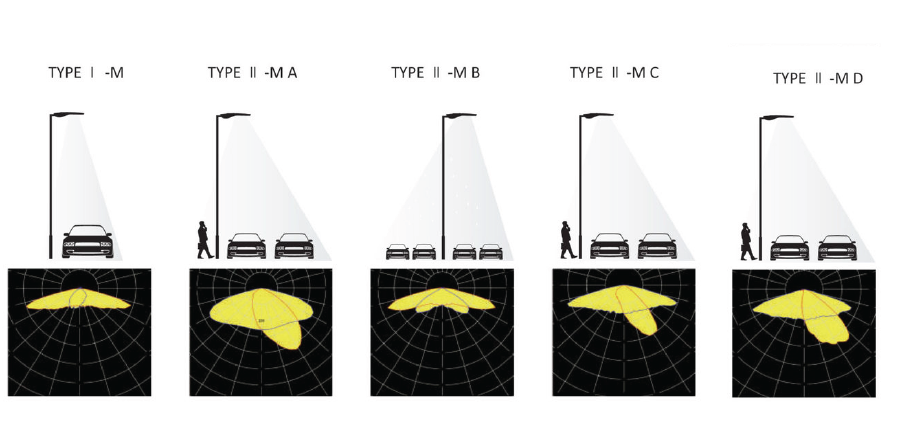

Lighting Distribution
Expand
SLP R1
SLP R2

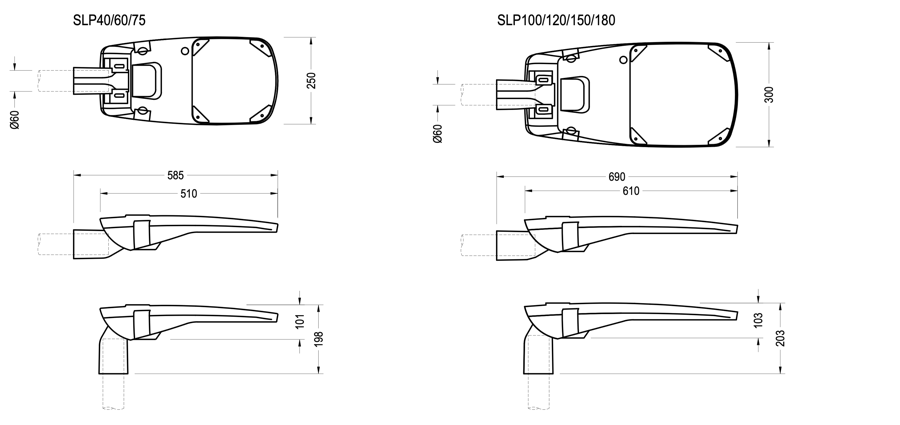

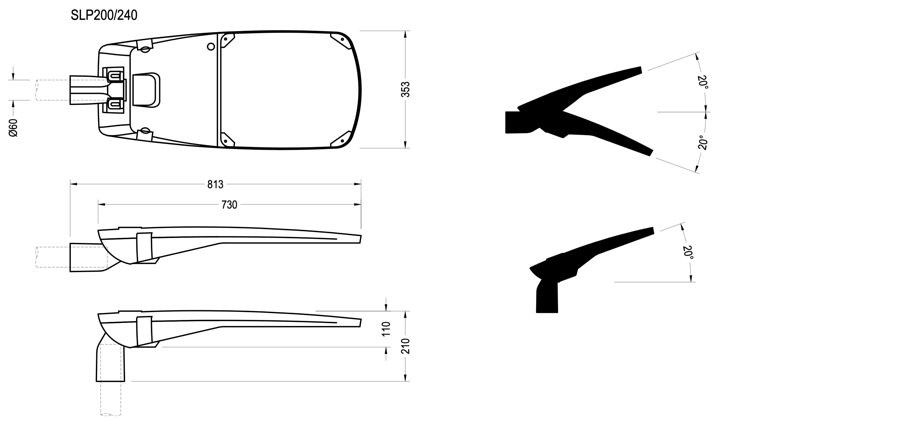

Dimensions
Expand
SLP R1
SLP R2

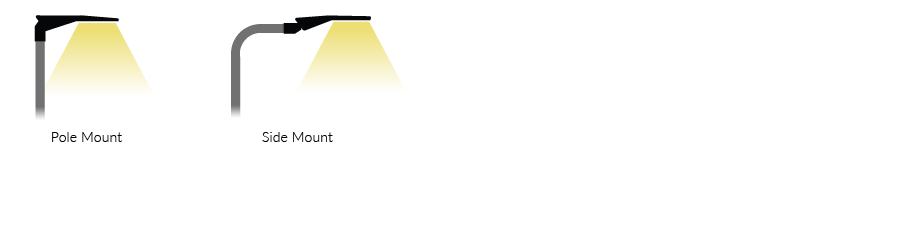

Mounting Methods
Expand
SLP

Product Datasheet

PELION SLP
(showing 4 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
Efficacy (lm/W)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
SLP150690 x 300 x 103150202501353000/4000/6500
SLP200813 x 353 x 110200270001353000/4000/6500
SLP40585 x 251 x 1014054001353000/4000/6500
SLP75585 x 251 x 10175101251353000/4000/6500
