SPR6W

Features

  • Eco-friendly LED product for energy saving and visual consistency.

  • Modular design for easy maintenance with future proofing.

  • Propriety lens design for high LOR.

  • Reliable thermal management for long life and lumen maintenance.

IP65
Outdoor
Dim Optional

Suitable Applications

Specifications
Expand
SPR6WSPR6W208SPR6W214SPR6W319
Nominal Power (W)81419
Dimensions DiaxH (mm)75x15295x152
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)1430/1475/14901905/1960/19802875/2960/2990
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IPIP20/IP65
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA prismatic LENS, glare control
ReflectorPMMA Lens
Light DistributionNarrow, medium, wide beams
SPR6WSPR6W423SPR6W427SPR6W431
Nominal Power (W)232731
Dimensions DiaxH (mm)115x152
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)3355/3455/34853805/3915/39554220/4345/4390
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IPIP20/IP65
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA prismatic LENS, glare control
ReflectorPMMA Lens
Light DistributionNarrow, medium, wide beams

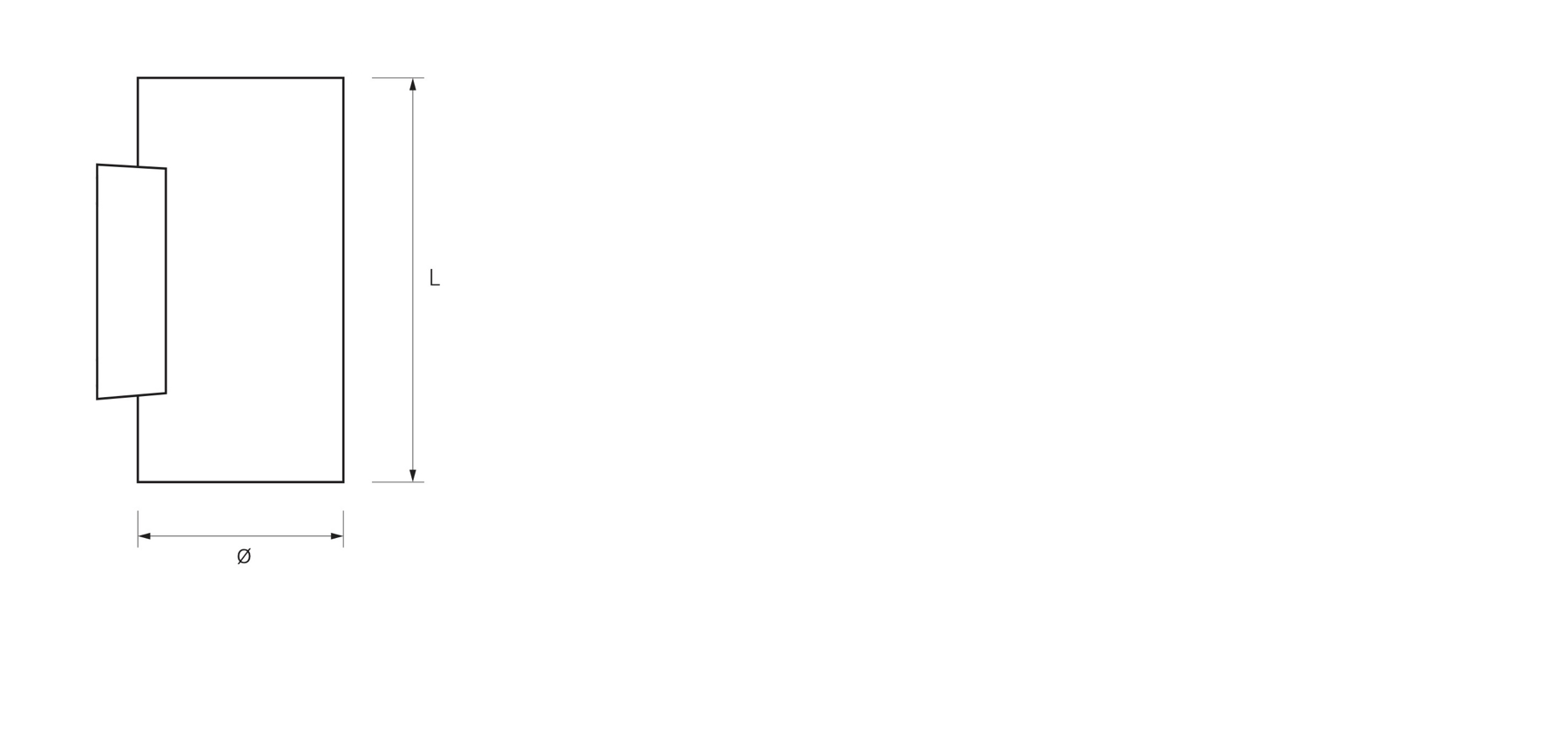

Dimensions
Expand
SPR6W

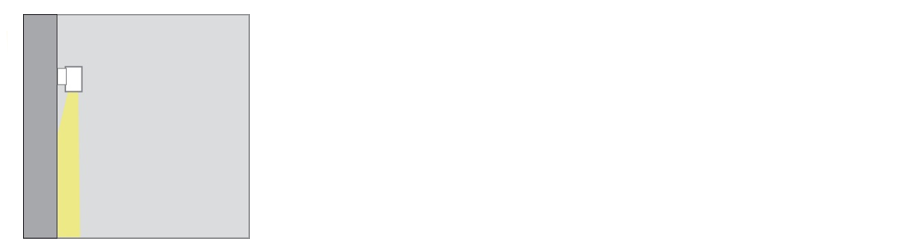

Mounting Methods
Expand
SPR6W

Product Datasheet

SPOT SPR6W
(showing 6 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
CCT
Sort
IES
SPR6W20875x15281430/1475/14903000/4000/5700
SPR6W21475x152141905/1960/19803000/4000/5700
SPR6W31995x152192875/2960/29903000/4000/5700
SPR6W423115x152233355/3455/34853000/4000/5700
SPR6W427115x152273805/3915/39553000/4000/5700
SPR6W431115x152314220/4345/43903000/4000/5700
