Item 1 of 1
SPR8

Features

  • Eco-friendly LED product for energy saving and visual consistency.

  • Modular design for easy maintenance with future proofing.

  • Propriety lens design for high LOR.

  • Reliable thermal management for long life and lumen maintenance.

IP20
Indoor
Dim Optional

Suitable Applications

Specifications
Expand
SPR8SPR8205SPR8209SPR8311SPR8314
Nominal Power (W)591114
Dimensions Dia x H (mm)72x7590x90
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)790/815/8251430/1475/14901675/1725/17401905/1960/1980
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA Clear

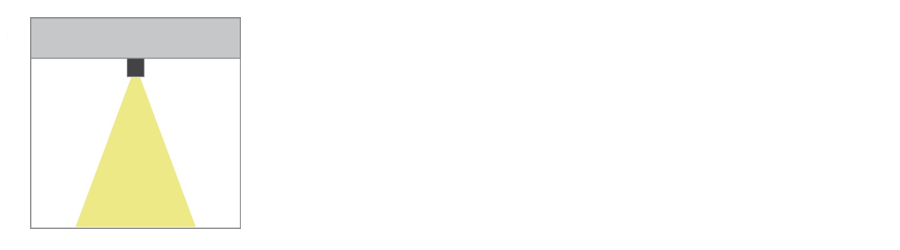

Light DistributionNarrow, medium, wide beams
ReflectorSilver
SPR8SPR8419SPR8424SPR8527SPR8532
Nominal Power (W)19242732
Dimensions Dia x H (mm)111x110130x130
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)2875/2960/29903355/3455/34853805/3915/39554220/4345/4390
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA Clear
Light DistributionNarrow, medium, wide beams
ReflectorSilver
SPR8SPR8634SPR8641SPR8849SPR8860
Nominal Power (W)344149 60
Dimensions Dia x H (mm)170x170195x195
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)4880/5025/50755485/5645/57006030/6210/62707930/8165/8245
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA Clear
Light DistributionNarrow, medium, wide beams
ReflectorSilver

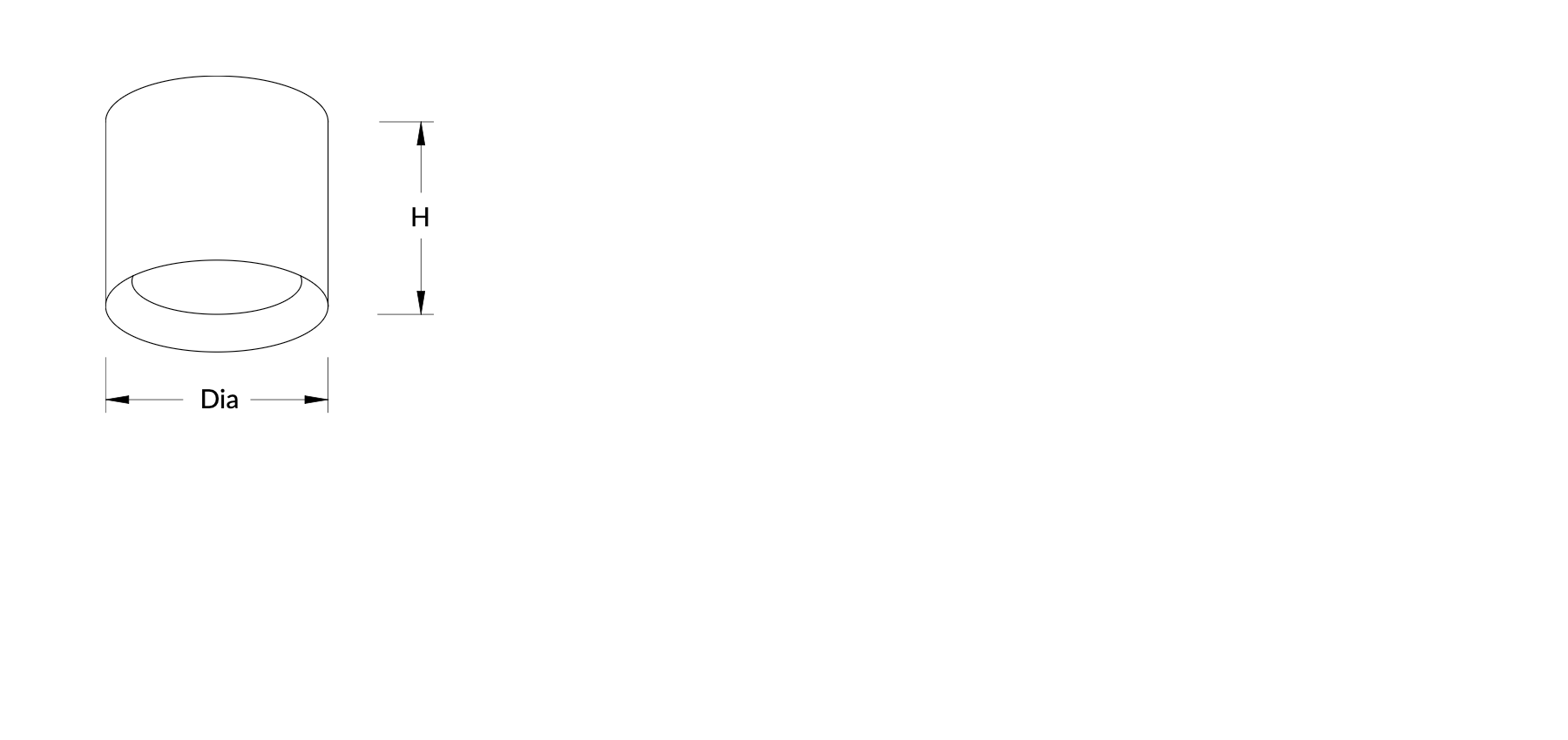

Dimensions
Expand
SPR8
Mounting Methods
Expand
SPR8

Product Datasheet

SPOT SPR8
(showing 12 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
CCT
Sort
IES
SPR820572x755790/815/8253000/4000/5700
SPR820972x7591430/1475/14903000/4000/5700
SPR831190x90111675/1725/17403000/4000/5700
SPR831490x90141905/1960/19803000/4000/5700
SPR8419111x110192875/2960/29903000/4000/5700
SPR8424111x110243355/3455/34853000/4000/5700
SPR8527130x130273805/3915/39553000/4000/5700
SPR8532130x130324220/4345/43903000/4000/5700
SPR8634170x170344880/5025/50753000/4000/5700
SPR8641170x170415485/5645/57003000/4000/5700
SPR8849195x19549 6030/6210/62703000/4000/5700
SPR8860195x19560 7930/8165/82453000/4000/5700
