SPOTSPR9The Surface Adjustable LED Downlight is designed for commercial buildings, shopping malls, residential homes, and similar spaces, offering energy-efficient lighting with a flexible, adjustable beam angle that lets you direct light exactly where it's needed.
Item 1 of 1
Features
Eco-friendly LED product for energy saving and visual consistency.
Modular design for easy maintenance with future proofing.
Propriety lens design for high LOR.
Reliable thermal management for long life and lumen maintenance.
Suitable Applications
Item 1 of 5
Specifications
| SPR9 | SPR9305 | SPR9309 | SPR9414 | SPR9419 |
|---|---|---|---|---|
| Nominal Power (W) | 5 | 9 | 14 | 19 |
| Dimensions Dia x H (mm) | 90x100 | 130x120 | ||
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| Luminous Flux (lm) | 790/815/825 | 1430/1475/1490 | 1905/1960/1980 | 2875/2960/2990 |
| CCT (K) | 3000/4000/5700 | |||
| CRI | >80, >90(optional) | |||
| Beam Angle (°) | 20/40/60 | |||
| SDCM | ≤3 step MacAdam | |||
| Power Factor | >0.9 | |||
| Rated Life Time (hrs) | >50,000 | |||
| IP | 20 | |||
| Housing | Die-cast aluminium, white trim, stainless steel clips | |||
| Optics | PMMA Clear | |||
| Light Distribution | Narrow, medium, wide beams | |||
| Reflector | Silver | |||
| SPR9 | SPR9524 | SPR9527 | SPR9532 | SPR9534 |
|---|---|---|---|---|
| Nominal Power (W) | 24 | 27 | 32 | 34 |
| Dimensions Dia x H (mm) | 150x170 | |||
| Input Voltage (Vac) | 220-240 | |||
| Frequency (Hz) | 50/60 | |||
| Luminous Flux (lm) | 3355/3455/3485 | 3805/3915/3955 | 4220/4345/4390 | 4880/5025/5075 |
| CCT (K) | 3000/4000/5700 | |||
| CRI | >80, >90(optional) | |||
| Beam Angle (°) | 20/40/60 | |||
| SDCM | ≤3 step MacAdam | |||
| Power Factor | >0.9 | |||
| Rated Life Time (hrs) | >50,000 | |||
| IP | 20 | |||
| Housing | Die-cast aluminium, white trim, stainless steel clips | |||
| Optics | PMMA Clear | |||
| Light Distribution | Narrow, medium, wide beams | |||
| Reflector | Silver | |||

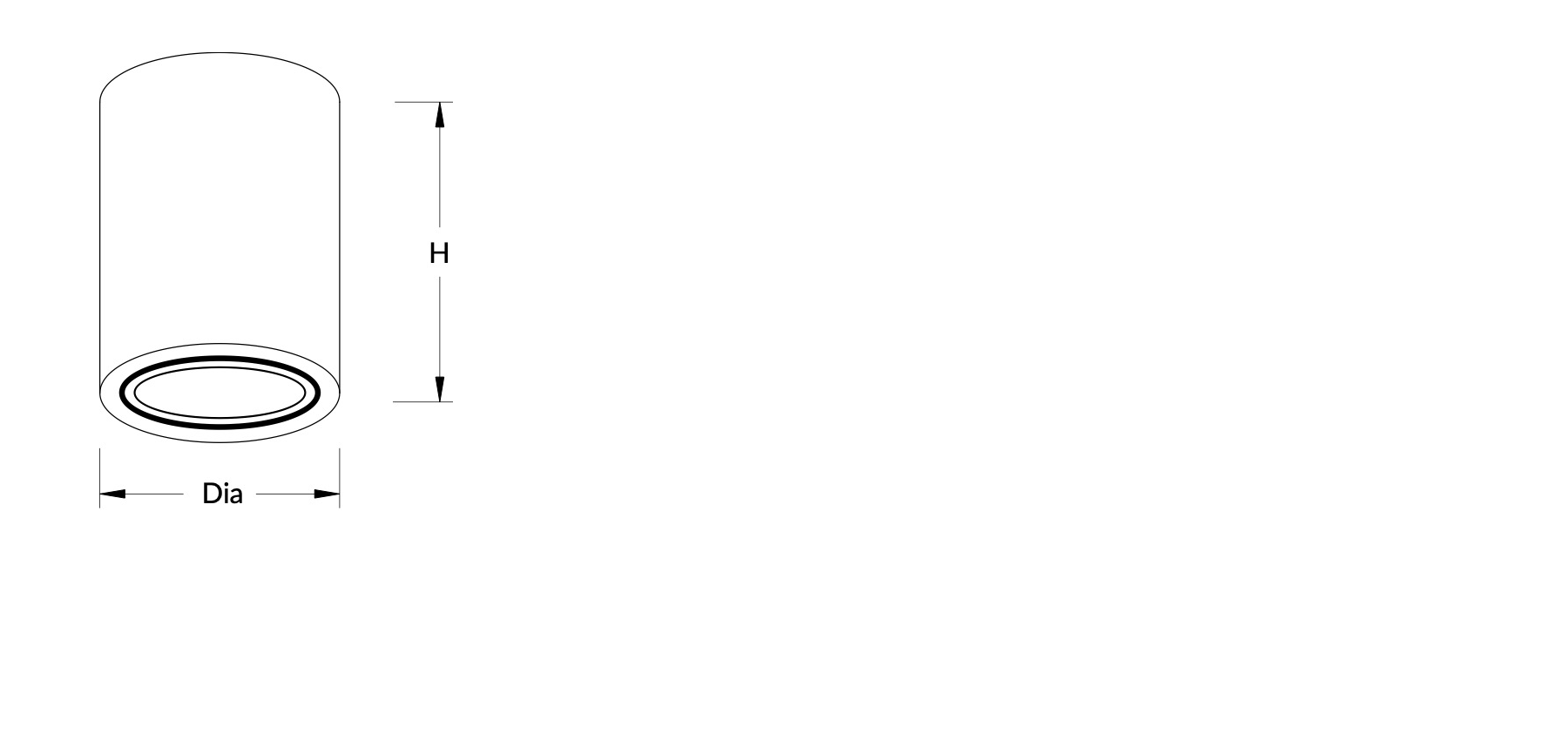

Dimensions

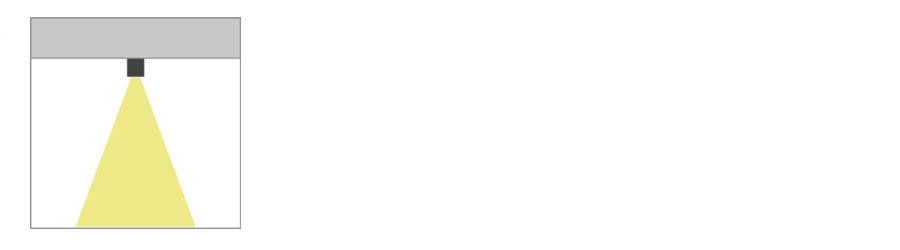

Mounting Methods
Product Datasheet
SPOT SPR9
(showing 8 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| SPR9305 | 90x100 | 5 | 790/815/825 | 3000/4000/5700 | ||
| SPR9309 | 90x100 | 9 | 1430/1475/1490 | 3000/4000/5700 | ||
| SPR9414 | 130x120 | 14 | 1905/1960/1980 | 3000/4000/5700 | ||
| SPR9419 | 130x120 | 19 | 2875/2960/2990 | 3000/4000/5700 | ||
| SPR9524 | 150x170 | 24 | 3355/3455/3485 | 3000/4000/5700 | ||
| SPR9527 | 150x170 | 27 | 3805/3915/3955 | 3000/4000/5700 | ||
| SPR9532 | 150x170 | 32 | 4220/4345/4390 | 3000/4000/5700 | ||
| SPR9534 | 150x170 | 34 | 4880/5025/5075 | 3000/4000/5700 |
