SPS1

Features

  • Eco-friendly LED product for energy saving and visual consistency.

  • Modular design for easy maintenance with future proofing.

  • Propriety lens design for high LOR.

  • Reliable thermal management for long life and lumen maintenance.

IP20
Indoor
Dim Optional

Suitable Applications

Specifications
Expand
SPS1SPS1309SPS1314SPS1419SPS1423
Nominal Power (W)9141923
Dimensions LxWxH (mm)110x110x120133x133x135
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)1430/1475/14901905/1960/19802505/2580/2605
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)70
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips

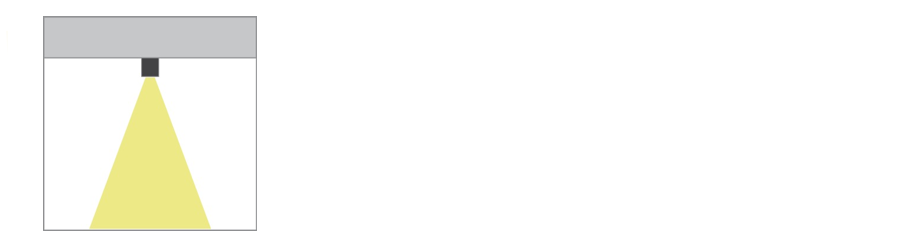

Light DistributionNarrow, medium, wide beams
ReflectorSilver
SPS1SPS1427SPS1534SPS1541
Nominal Power (W)273441
Dimensions LxWxH (mm)133x133x135160x160x165
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)3355/3455/34853805/3915/39554220/4345/4390
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)70
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips
Light DistributionNarrow, medium, wide beams
ReflectorSilver

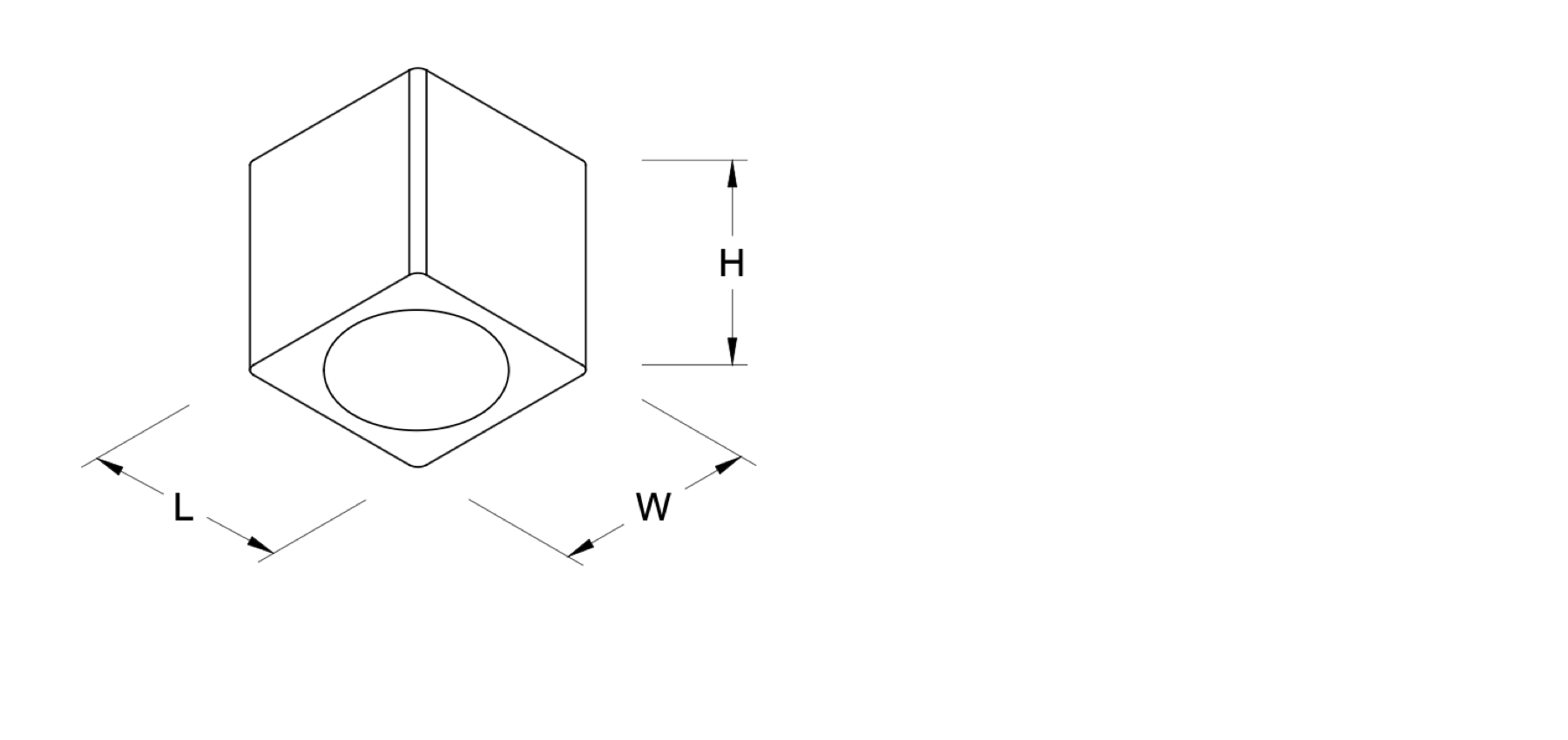

Dimensions
Expand
SPS1
Mounting Methods
Expand
SPS1

Product Datasheet

SPOT SPS1
(showing 7 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
Efficacy (lm/W)
Sort
CCT
Sort
IES
SPS1309110x110x12091430/1475/14903000/4000/5700
SPS1314110x110x120141430/1475/14903000/4000/5700
SPS1419133x133x135191905/1960/19803000/4000/5700
SPS1423133x133x135232505/2580/26053000/4000/5700
SPS1427133x133x135273355/3455/34853000/4000/5700
SPS1534160x160x165343805/3915/39553000/4000/5700
SPS1541160x160x165414220/4345/43903000/4000/5700
