SPS8

Features

  • Eco-friendly LED product for energy saving and visual consistency.

  • Modular design for easy maintenance with future proofing.

  • Propriety lens design for high LOR.

  • Reliable thermal management for long life and lumen maintenance.

IP20
Indoor
Dim Optional

Suitable Applications

Specifications
Expand
SPS8SPS8205SPS8209SPS8311SPS8314
Nominal Power (W)591114
Dimensions LxWxH (mm)72x72x7590x90x90
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)790/815/8251430/1475/14901675/1725/17401905/1960/1980
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA Clear
Light DistributionNarrow, medium, wide beams
ReflectorSilver
SPS8SPS8319SPS8424SPS8427SPS8432
Nominal Power (W)19 24 27 32
Dimensions LxWxH (mm)111x111x110
Input Voltage (Vac)220-240
Frequency (Hz)50/60
Luminous Flux (lm)2875/2960/29903355/3455/34853805/3915/39554220/4345/4390
CCT (K)3000/4000/5700
CRI>80, >90(optional)
SDCM≤3 step MacAdam
Beam Angle (°)20/40/60
Power Factor>0.9
Rated Life Time (hrs)>50,000
IP20
HousingDie-cast aluminium, white trim, stainless steel clips
OpticsPMMA Clear
Light DistributionNarrow, medium, wide beams
ReflectorSilver

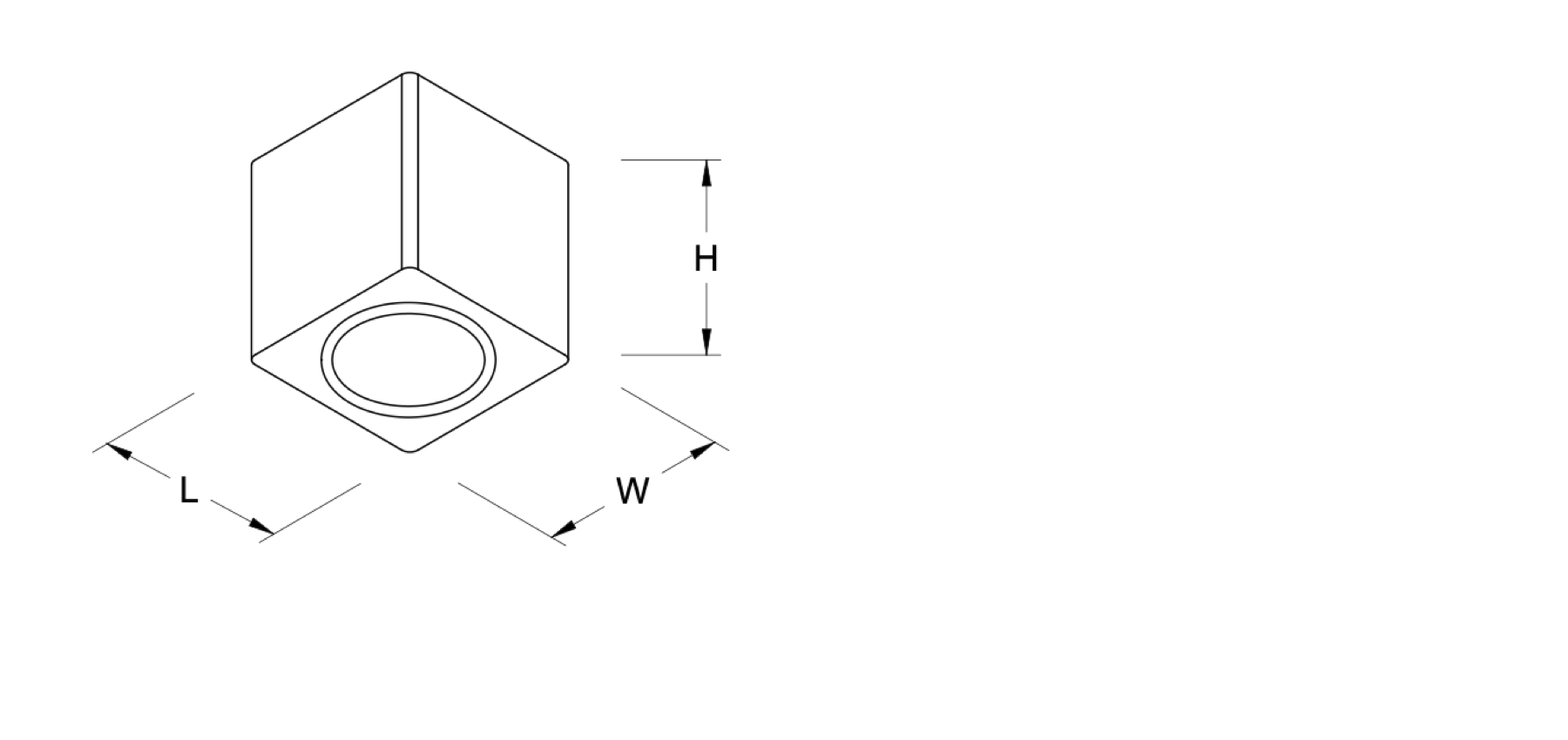

Dimensions
Expand
SPS8

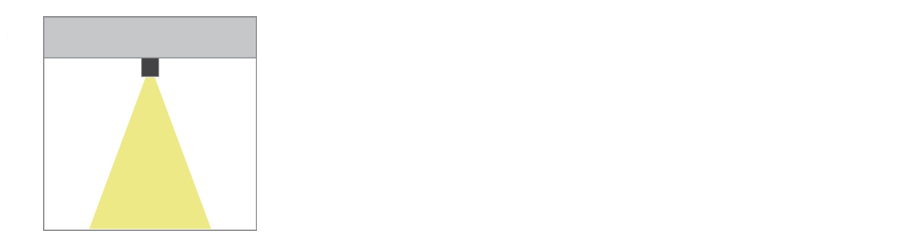

Mounting Methods
Expand
SPS8

Product Datasheet

SPOT SPS8
(showing 8 product SKUs)
Size
Nominal Power
Luminous Flux (lm)
CCT
Model Number
Sort
Size
Sort
Nominal Power
Sort
Luminous Flux (lm)
Sort
CCT
Sort
IES
SPS820572x72x755790/815/8253000/4000/5700
SPS820972x72x7591430/1475/14903000/4000/5700
SPS831190x90x90111675/1725/17403000/4000/5700
SPS831490x90x90141905/1960/19803000/4000/5700
SPS8319111x111x11019 2875/2960/29903000/4000/5700
SPS8424111x111x11024 3355/3455/34853000/4000/5700
SPS8427111x111x11027 3805/3915/39553000/4000/5700
SPS8432111x111x11032 4220/4345/43903000/4000/5700
