WYPLASHWPUWith IP66 protection as its cornerstone, Wyplash sets the standard for dependable outdoor lighting solutions. The robust weatherproof light can confidently withstand various environmental challenges. Crafted with precision and care, it combines superior engineering with durable materials to deliver reliable illumination. Whether illuminating walkways, parking lots, or outdoor spaces, it is ready to shine, undeterred by the elements.
Features
- Energy efficient weatherproof with IP66 protection
- Fire-rated UV stabilized polycarbonate body and opalised diffuser
- Cable entry gland one end
- White powder coated zinc steel gear tray with PC fixing clips
- Stainless steel cover clips
- Stainless steel mounting brackets

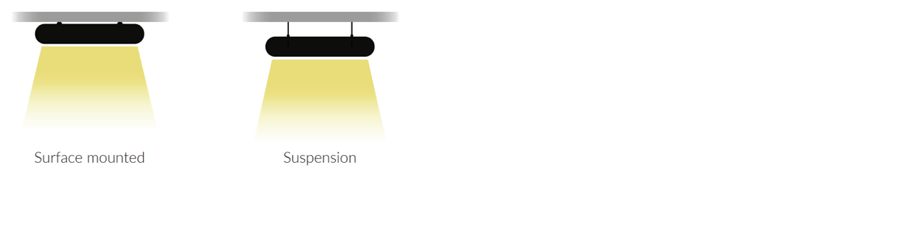

- Suitable for surface or pendant mounting
- Fitting for T5 & T8 LED lamp available (Clear diffuser)
- Maintenance free
Suitable Applications
| Model | WPUS210 RBLxK | WPUS220 RBLxK | WPUS420 RBLxK | WPUS435 RBLxK | WPUT210 RBLxK | WPUT220 RBLxK | WPUT420 RBLxK | WPUT435 RBLxK |
|---|---|---|---|---|---|---|---|---|
Nominal Power (W)
| 10 | 20 | 20 | 35 | 10 | 20 | 20 | 35 |
Input Voltage
| 220 – 240 VAC 50 / 60 Hz | |||||||
Luminous Flux (lm)
| 1237 | 2127 | 2620 | 4377 | 1205 | 2073 | 2513 | 4414 |
Efficacy (lm/W)
| 125 | 125 | 133 | 126 | 121 | 121 | 128 | 126 |
CRI
| > 80 | |||||||
Power Factor
| > 0.95 | |||||||

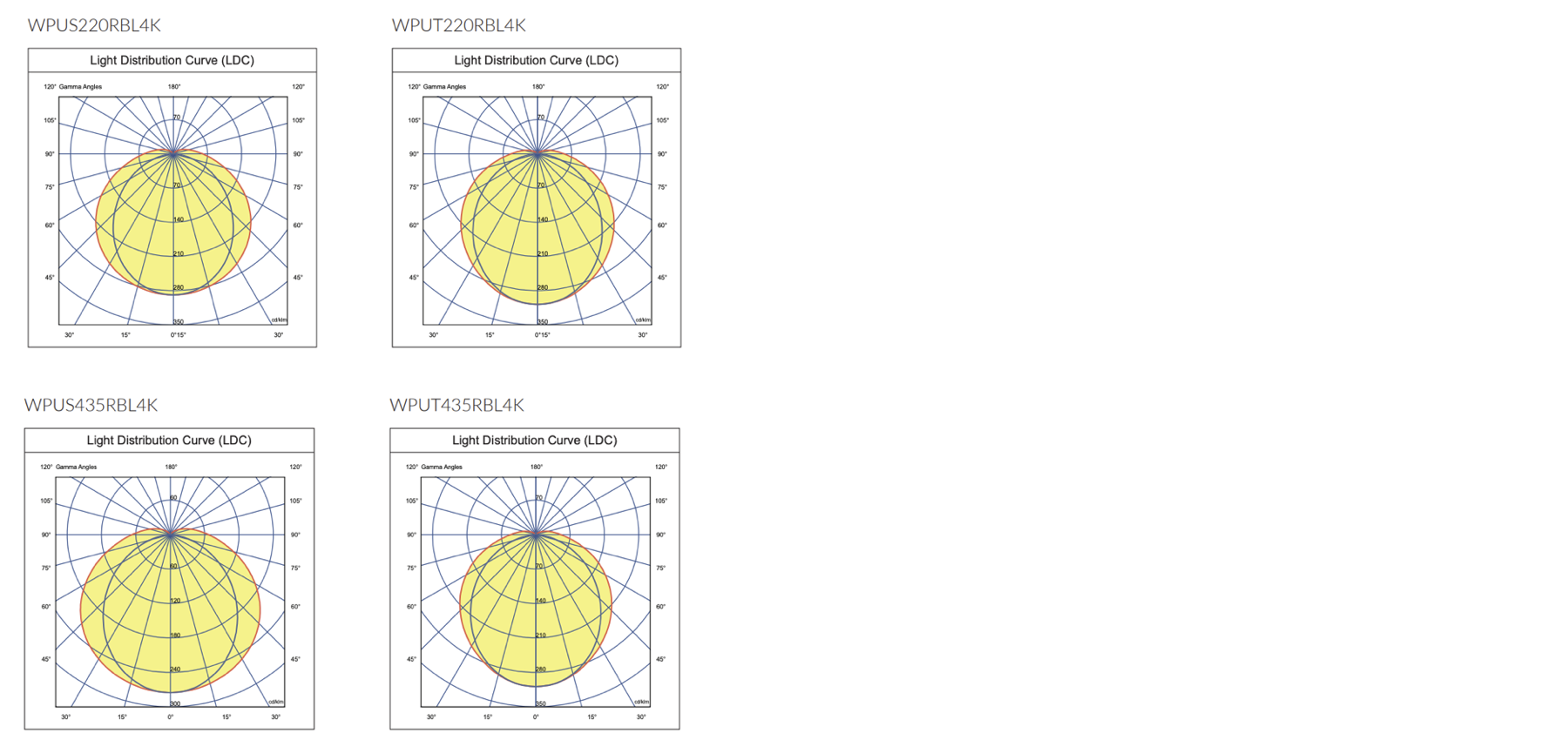

Beam Angle (°)
| 100 | |||||||
Colour Temp. (K)
| 3000 / 4000 / 6500 | |||||||
Luminaire Rated Life (hr)
| 50,000 | |||||||
Ambient Temp. (°C)
| 35 | |||||||
Weight (kg)
| 1.2 | 1.2 | 1.8 | 1.8 | 1.4 | 1.4 | 2.4 | 2.4 |

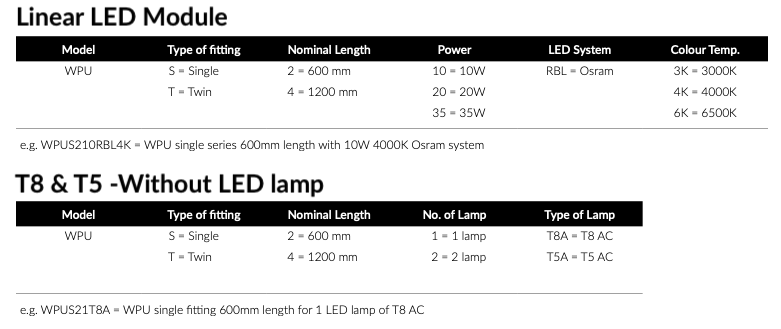

“x” denotes CCT, 3 = 3000K ; 4 = 4000K ; 6 = 6500K
Product Datasheet

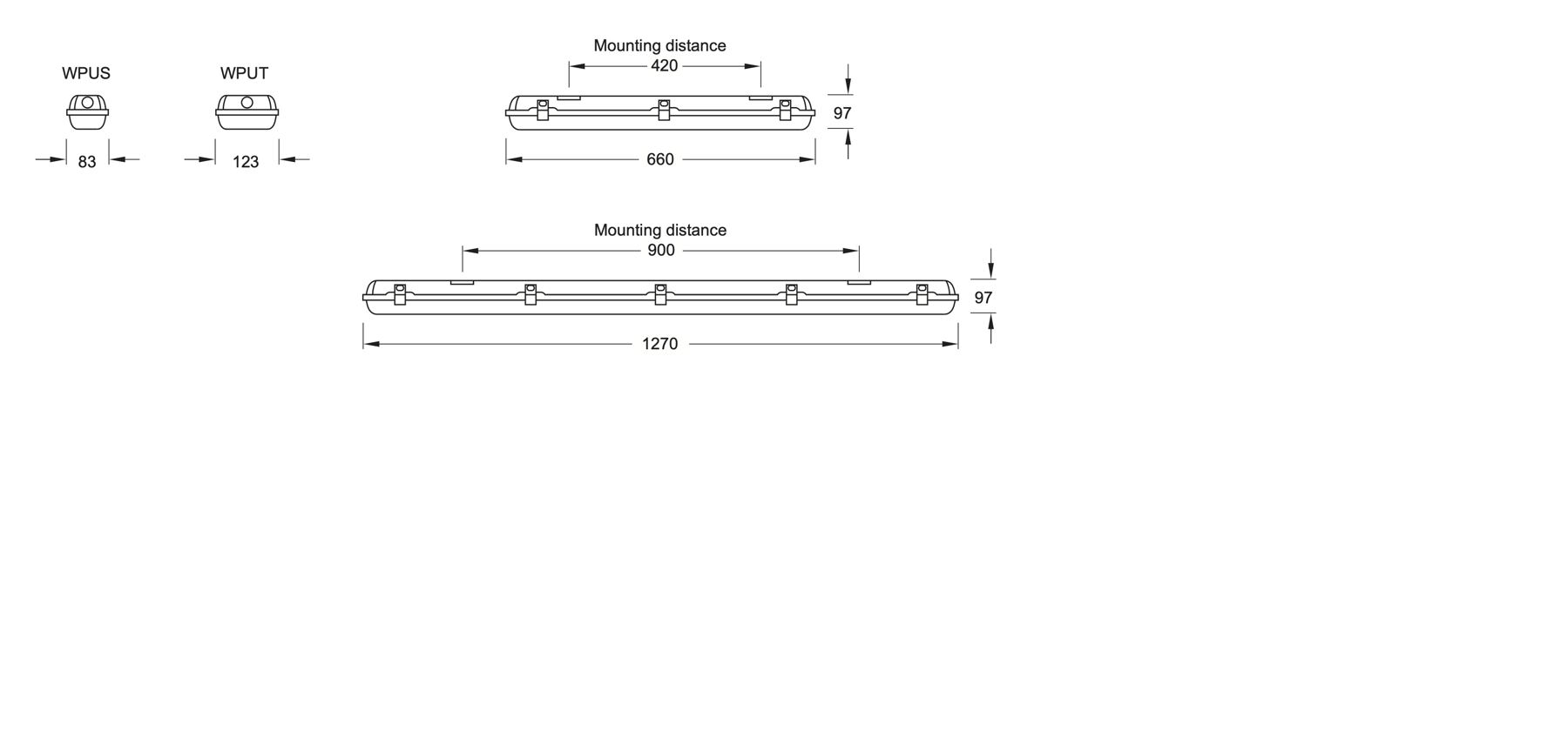

Model Number  | Size | Nominal Power | Luminous Flux (lm) | Efficacy (lm/W) | CCT | IES |
|---|---|---|---|---|---|---|
| WPUS210RBL3K | 660 x 80 x 90 | 10 | 1237 | 125 | 3000 | |
| WPUS210RBL4K | 660 x 80 x 90 | 10 | 1237 | 125 | 4000 | |
| WPUS210RBL6K | 660 x 80 x 90 | 10 | 1237 | 125 | 6500 | |
| WPUS220RBL3K | 660 x 80 x 90 | 20 | 2127 | 125 | 3000 | |
| WPUS220RBL4K | 660 x 80 x 90 | 20 | 2127 | 125 | 4000 | |
| WPUS220RBL6K | 660 x 80 x 90 | 20 | 2127 | 125 | 6500 | |
| WPUS420RBL3K | 1270 x 80 x 90 | 20 | 2617 | 133 | 3000 | |
| WPUS420RBL4K | 1270 x 80 x 90 | 20 | 2617 | 133 | 4000 | |
| WPUS420RBL6K | 1270 x 80 x 90 | 20 | 2617 | 133 | 6500 | |
| WPUS435RBL3K | 1270 x 80 x 90 | 35 | 4377 | 126 | 3000 | |
| WPUS435RBL4K | 1270 x 80 x 90 | 35 | 4377 | 126 | 4000 | |
| WPUS435RBL6K | 1270 x 80 x 90 | 35 | 4377 | 126 | 6500 | |
| WPUT210RBL3K | 660 x 120 x 90 | 10 | 1205 | 121 | 3000 | |
| WPUT210RBL4K | 660 x 120 x 90 | 10 | 1205 | 121 | 4000 | |
| WPUT210RBL6K | 660 x 120 x 90 | 10 | 1205 | 121 | 6500 | |
| WPUT220RBL3K | 660 x 120 x 90 | 20 | 2073 | 121 | 3000 | |
| WPUT220RBL4K | 660 x 120 x 90 | 20 | 2073 | 121 | 4000 | |
| WPUT220RBL6K | 660 x 120 x 90 | 20 | 2073 | 121 | 6500 | |
| WPUT420RBL3K | 1270 x 120 x 90 | 20 | 2513 | 128 | 3000 | |
| WPUT420RBL4K | 1270 x 120 x 90 | 20 | 2513 | 128 | 4000 | |
| WPUT420RBL6K | 1270 x 120 x 90 | 20 | 2513 | 128 | 6500 | |
| WPUT435RBL3K | 1270 x 120 x 90 | 35 | 4414 | 126 | 3000 | |
| WPUT435RBL4K | 1270 x 120 x 90 | 35 | 4414 | 126 | 4000 | |
| WPUT435RBL6K | 1270 x 120 x 90 | 35 | 4414 | 126 | 6500 |
